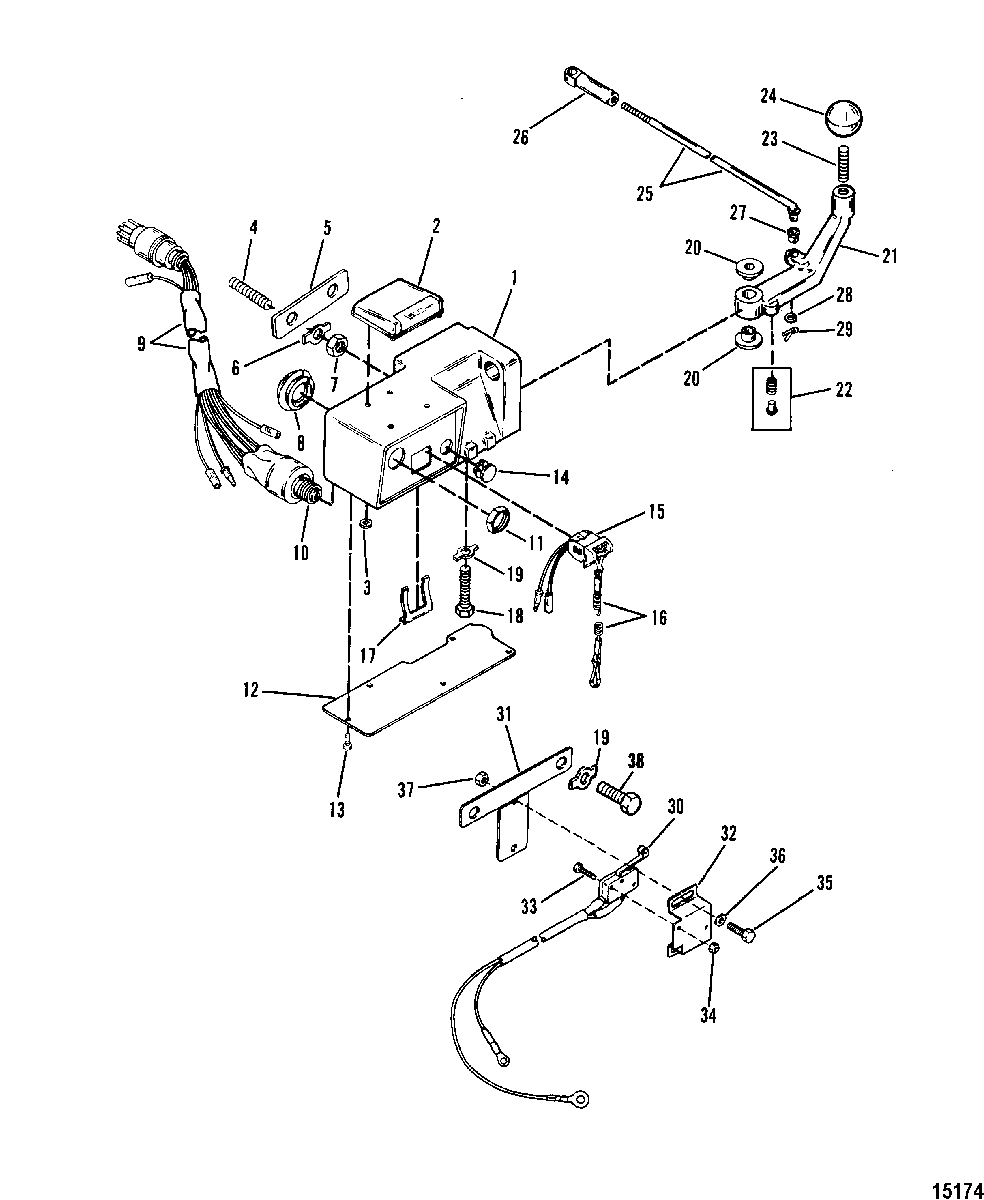

Steering Handle Components для Mercury - 70 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
112022A13 BRACKET ASSEMBLY, BlackBRACKET ASSEMBLY, Black
-
112022A14 BRACKET ASSEMBLY, GrayBRACKET ASSEMBLY, Gray
-
279-12012A1 TACHOMETER ASSEMBLYTACHOMETER ASSEMBLY
-
311-113161 NUTNUT
-
416-12782 STUD, BracketSTUD, Bracket
-
515126 SPACERSPACER
-
614-12080 TAB WASHERTAB WASHER
-
711-4002016 NUTNUT
-
8121051 GROMMETGROMMET
-
984-12649A2 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1087-88107A5 KEY SWITCHKEY SWITCH
-
1111-879755 NUT, Special - Chrome Brass, Key SwitchNUT, Special - Chrome Brass, Key Switch
-
12120151 COVER, BracketCOVER, Bracket
-
1310-72169 SCREW, (#10-24 x .500), Bracket CoverSCREW, (#10-24 x .500), Bracket Cover
-
1419-889730 PLUGPLUG
-
1587-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
168M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
178M0032846 RETANER, Stop SwitchRETANER, Stop Switch
-
1810-4000358 SCREW, (M8 x 50), Shift LeverSCREW, (M8 x 50), Shift Lever
-
1914-42981 TAB WASHERTAB WASHER
-
2023-889732 BUSHINGBUSHING
-
2112021A1 LEVER, ShiftLEVER, Shift
-
228M0091388 DETENT ASSEMBLYDETENT ASSEMBLY
-
2316-8M0034452 STUD, (.375-24 x 1.125), Shift LeverSTUD, (.375-24 x 1.125), Shift Lever
-
2498530 KNOB, Shift LeverKNOB, Shift Lever
-
25495636 SHIFT RODSHIFT ROD
-
2648419T ROD ENDROD END
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless Steel, Shift RodWASHER, (.273 x .437 x .031) Stainless Steel, Shift Rod
-
2918-25191 COTTER PIN, Shift RodCOTTER PIN, Shift Rod
-
3087-93479A7 SWITCH ASSEMBLY, Neutral StartSWITCH ASSEMBLY, Neutral Start
-
3112609 BRACKET, PrimaryBRACKET, Primary
-
32126101 BRACKET, SwitchBRACKET, Switch
-
3310-90342 SCREW, (#4-40 x .630), Switch To BracketSCREW, (#4-40 x .630), Switch To Bracket
-
3411-24832 NUT, (#4-40), Switch ScrewNUT, (#4-40), Switch Screw
-
3510-57583T SCREW, (#8-32 x .375), Bracket To BracketSCREW, (#8-32 x .375), Bracket To Bracket
-
3612-20878 WASHER, Bracket ScrewWASHER, Bracket Screw
-
3711-26419 NUT, (#8-32) Brass, Bracket ScrewNUT, (#8-32) Brass, Bracket Screw
-
3810-40001134 SCREW, (M8 x 25), Primary BracketSCREW, (M8 x 25), Primary Bracket
-
39894911 KEYKEY
-
40894912 KEY, IgnitionKEY, Ignition
-
41894913 KEY 1CKEY 1C
-
42894914 KEY 1DKEY 1D
-
43894915 KEY 1EKEY 1E
-
44894916 KEY 1FKEY 1F
-
45894917 KEY 2AKEY 2A
-
46894918 KEY 2BKEY 2B
-
47894919 KEY 2CKEY 2C
-
488949110 KEY, Ignition (2D)KEY, Ignition (2D)
-
498949111 KEY, Ignition (2E)KEY, Ignition (2E)
-
508949112 KEY, Ignition (2F)KEY, Ignition (2F)
