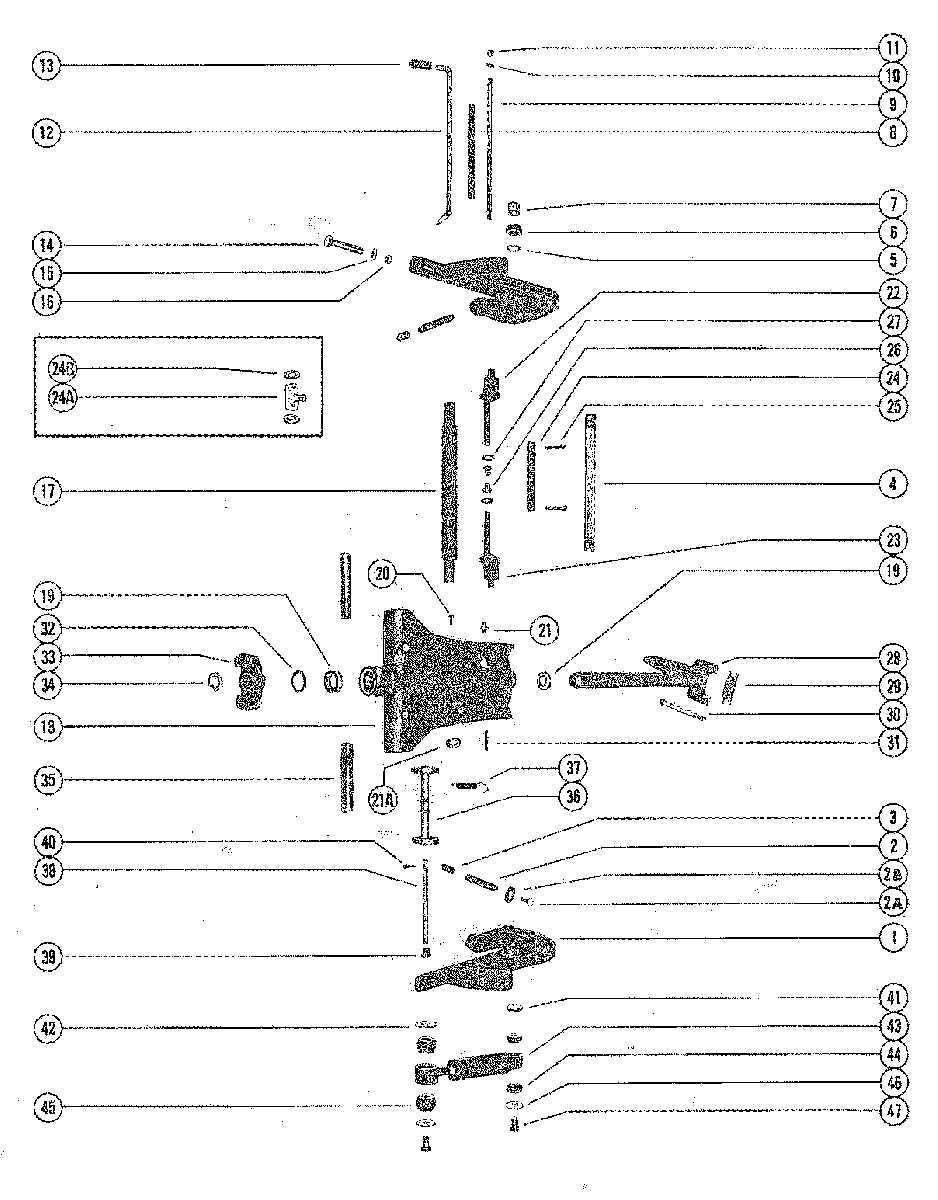

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 70 (3 CYL.) 4571652 THRU 5579016
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A RETAINING RINGCLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A RETAINING RING -
210-78492A1 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RINGTHUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A RETAINING RING -
375043 CAP, THUMB SCREW
WASHER ATTACHED WITH A RETAINING RINGCAP, THUMB SCREW
WASHER ATTACHED WITH A RETAINING RING -
11440-8394A1 CLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A SCREWCLAMP BRACKET ASSEMBLY
WASHER ATTACHED WITH A SCREW -
210-78492A1 THUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREWTHUMB SCREW ASSEMBLY
WASHER ATTACHED WITH A SCREW -
2A10-78495 SCREW
WASHER TO THUMB SCREW -WASHER ATTACHED WITH A SCREWSCREW
WASHER TO THUMB SCREW -WASHER ATTACHED WITH A SCREW -
2B12-78493 WASHER
THUMB SCREW -WASHER ATTACHED WITH A SCREWWASHER
THUMB SCREW -WASHER ATTACHED WITH A SCREW -
375043 CAP
THUMB SCREW -WASHER ATTACHED WITH A SCREWCAP
THUMB SCREW -WASHER ATTACHED WITH A SCREW -
48M0041936 TUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT-CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC-TILT TUBECAP, PLASTIC-TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKER (9 1/2")STUD, CLAMP BRACKER (9 1/2")
-
1013-26993 LOCKWASHER, CLAMP BRACKER STUDLOCKWASHER, CLAMP BRACKER STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1332-28052 SLEEVE, RUBBER-TILT LOCK PIN BUMPERSLEEVE, RUBBER-TILT LOCK PIN BUMPER
-
1410-68298 VOLT, CLAMP BRACKET TO BAOT TRANSOM (3 1/4")VOLT, CLAMP BRACKET TO BAOT TRANSOM (3 1/4")
-
1512-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1410-68299 BOLT
CLAMP BRACKET TO BOAT TRANSOM (3")-OLD STYLE CLAMP BRACKETBOLT
CLAMP BRACKET TO BOAT TRANSOM (3")-OLD STYLE CLAMP BRACKET -
1410-87302 BOLT
CLAMP BRACKET TO BOAT TRANSOME (5")-NEW STYLE CLAMP BRCKETBOLT
CLAMP BRACKET TO BOAT TRANSOME (5")-NEW STYLE CLAMP BRCKET -
1512-28420 WASHER
CLAMP BRACKET BOLT-NEW STYLE CLAMP BRACKETWASHER
CLAMP BRACKET BOLT-NEW STYLE CLAMP BRACKET -
1512-68300 WASHER, CLAMP BRACKER BOLTWASHER, CLAMP BRACKER BOLT
-
1611-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1755-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
181489-8597A4 SWIVEL BRACKET ASSEMBLY
(SHORT SHAFT)SWIVEL BRACKET ASSEMBLY
(SHORT SHAFT) -
181490-8599A6 SWIVEL BRACKET ASSEMBLY
(LONG SHAFT)SWIVEL BRACKET ASSEMBLY
(LONG SHAFT) -
1926-32911 OIL SEAL, SWIVEL BRACKEROIL SEAL, SWIVEL BRACKER
-
2010-47828 SCREW, DRIVE-SWIVEL BRACKER
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOWSCREW, DRIVE-SWIVEL BRACKER
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW CANADA 7129887 AND BELOW -
2122-74036 FITTING, GREASEFITTING, GREASE
-
21A26-22734 OIL SEAL, SWIVEL BRACKET (TILT LOCK)
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UPOIL SEAL, SWIVEL BRACKET (TILT LOCK)
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UP -
2276386 TILT LOVK, STARBOARDTILT LOVK, STARBOARD
-
2376385T TILT LOCK, PORTTILT LOCK, PORT
-
2447802 TUBE, TILT LOCK
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOWTUBE, TILT LOCK
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOW -
24A79659 CIOUPLING, TILT LOCK
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UPCIOUPLING, TILT LOCK
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UP -
24B25-67202 "O"RING, TILT LOCK LEVER
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UP"O"RING, TILT LOCK LEVER
UNITED STATES 5285534 AND UP
AUSTRALIA 8059595 AND UP
BELGIUM 9225256 AND UP
CANADA 7129888 AND UP -
2518-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2623-71574 BUSHING, TILT LOCK TUBE
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOWBUSHING, TILT LOCK TUBE
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOW -
2713-69150 WASHER, WAVE-TILT LOCK TUBE
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOWWASHER, WAVE-TILT LOCK TUBE
UNITED STATES 5285533 AND BELOW
AUSTRALIA 8059594 AND BELOW
BELGIUM 9225255 AND BELOW
CANADA 7129887 AND BELOW -
2869540A1 SWIVEL PIN AND STEERING ARM ASSEMBLY
(SHORT SHAFT) YOKE IS ATTACHED WITH A NUTSWIVEL PIN AND STEERING ARM ASSEMBLY
(SHORT SHAFT) YOKE IS ATTACHED WITH A NUT -
2869540A3 SWIVEL PIN AND STEERING ARM ASSEMBLY
(LONG SHAFT) YOKE IS ATTACHED WITH A NUTSWIVEL PIN AND STEERING ARM ASSEMBLY
(LONG SHAFT) YOKE IS ATTACHED WITH A NUT -
2869540A3 SWIVEL PIN AND STEERING ARM ASSEMBLY
(SHORT SHAFT) YOKE IS ATTACHED WITH A RETAINING RINGSWIVEL PIN AND STEERING ARM ASSEMBLY
(SHORT SHAFT) YOKE IS ATTACHED WITH A RETAINING RING -
2869540A4 SWIVEL PIN AND STEERING ARM ASSEMBLY
(LONG SHAFT) YOKE IS ATTACHED WITH A RETAINING RINGSWIVEL PIN AND STEERING ARM ASSEMBLY
(LONG SHAFT) YOKE IS ATTACHED WITH A RETAINING RING -
2930711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
3010-66897 BOLT, UPPER MOUNT TO SWIVEL PIN (7/16X5 1/4")BOLT, UPPER MOUNT TO SWIVEL PIN (7/16X5 1/4")
-
3117-25598 PIN, REVERSE LOCK SPRING ATTACHINGPIN, REVERSE LOCK SPRING ATTACHING
-
3212-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)WASHER, SWIVEL PIN TO BOTTOM YOKE (.062)
-
3212-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
3377416T1 YOKE, BOTTOM
YOKE IS ATTACHED WITH A NUTYOKE, BOTTOM
YOKE IS ATTACHED WITH A NUT -
3411-71956 NUT, BOTTOM YOKE RETAINING
YOKE IS ATTACHED WITH A NUTNUT, BOTTOM YOKE RETAINING
YOKE IS ATTACHED WITH A NUT -
3377416T1 YOKE BOTTOM
YOKE IS ATTACHES WITH A RETAINING RINGYOKE BOTTOM
YOKE IS ATTACHES WITH A RETAINING RING -
3453-77415 RETAINING RING, BOTTOM YOKE
YOKE IS ATTACHES WITH A RETAINING RINGRETAINING RING, BOTTOM YOKE
YOKE IS ATTACHES WITH A RETAINING RING -
3555-696531 PIN, LOWER SHOCK MOUNTINGPIN, LOWER SHOCK MOUNTING
-
3687432 REVERSE LOCKREVERSE LOCK
-
3724-78203A2 SPRING AND PIN ASSEMBLY
REVERSE LOCK TENSIONSPRING AND PIN ASSEMBLY
REVERSE LOCK TENSION -
3856349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
3923-69132 BUSHING, REVERSE LOCK PIVOT SHAFTBUSHING, REVERSE LOCK PIVOT SHAFT
-
4018-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
4123-73203 SPACER
UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER
UPPER SHOCK BUSHING TO CLAMP BRACKET -
4212-59378 WASHER, LOWER BUSHING RETAINER (INNER)WASHER, LOWER BUSHING RETAINER (INNER)
-
4355-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
4423-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
-
4523-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
-
4612-69374 WASHER
UPPER AND LOWER BUSHING RETAINER (OUTER)WASHER
UPPER AND LOWER BUSHING RETAINER (OUTER) -
4710-69375 SCREW
UPPER AND LOWER SHOCK MOUNTING PIN ( 3/4")SCREW
UPPER AND LOWER SHOCK MOUNTING PIN ( 3/4")
