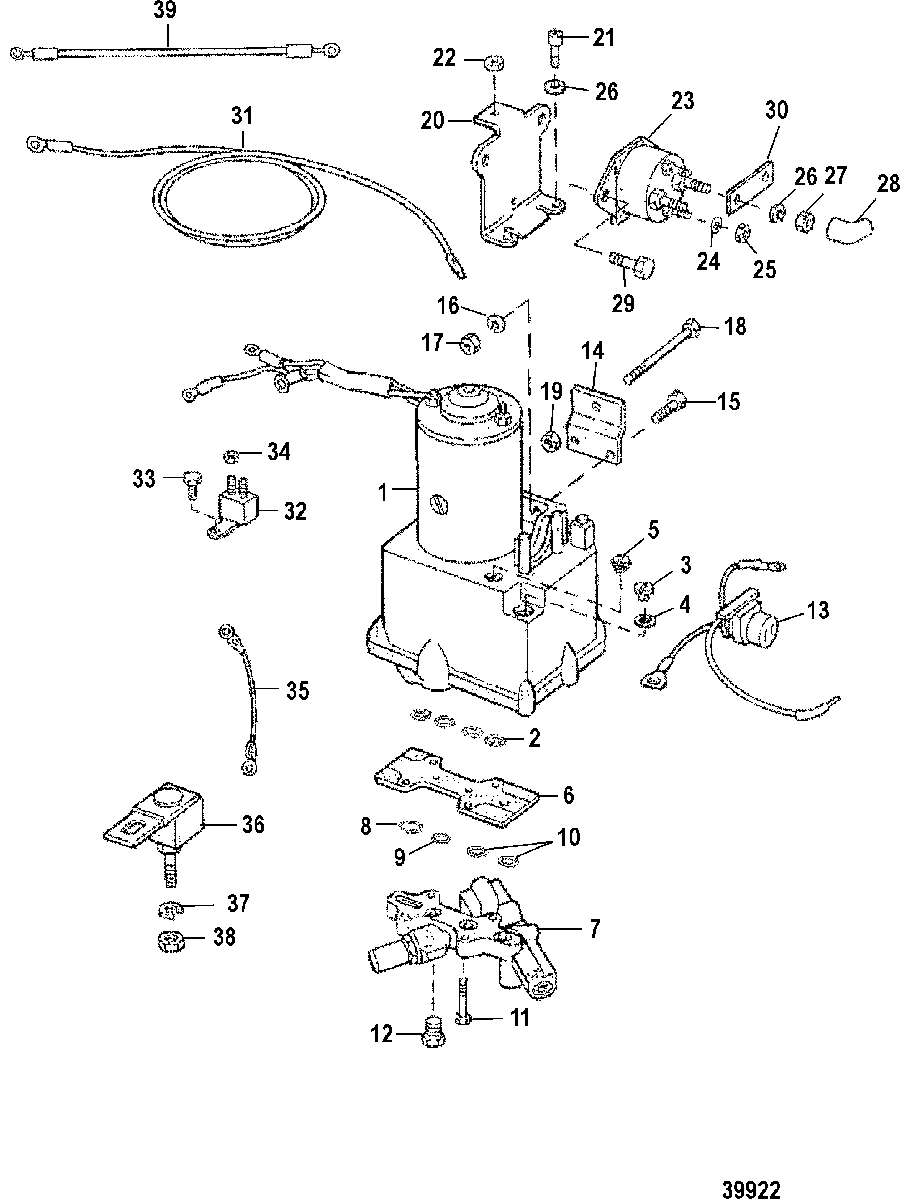

POWER TRIM COMPONENTS(WITH CIRCUIT BREAKER AND FUSE) для Mercury - 70 (3 CYL.) 5579017 THRU 6428680
-
№АртикулНазвание
-
192975A32 PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)PUMP ASSEMBLY, Hydraulic (PLASTIC RESERVOIR)
-
225-48171 O-RING, (.364. x .070), MANIFOLD PLATEO-RING, (.364. x .070), MANIFOLD PLATE
-
310-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMPSCREW, (.375-16 x .250), FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - FILLER SCREWWASHER, SEALING - FILLER SCREW
-
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
645336 PLATE, MANIFOLDPLATE, MANIFOLD
-
745197A2 VALVE ASSEMBLY, ControlVALVE ASSEMBLY, Control
-
--25-48171 O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)O-RING, (.364. x .070), MANIFOLD PLATE (SEE REF. #2)
-
825-45254 O-RING, CONTROL VALVE (3/4" O.D.)O-RING, CONTROL VALVE (3/4" O.D.)
-
925-48171 O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)O-RING, (.364. x .070), CONTROL VALVE (1/2" O.D.)
-
1025-45253 O-RING, CONTROL VALVE (5/8" O.D.)O-RING, CONTROL VALVE (5/8" O.D.)
-
1110-56500 SCREW, (.250-28 x 1.250), VALVE AND MANIFOLD PLATE TO PUMPSCREW, (.250-28 x 1.250), VALVE AND MANIFOLD PLATE TO PUMP
-
1222-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1384-79147A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1445377T BRACKET, MOUNTINGBRACKET, MOUNTING
-
1510-35386 SCREW, (.312-18 x 1.00), MOUNTING BRACKET TO HYDRAULIC PUMPSCREW, (.312-18 x 1.00), MOUNTING BRACKET TO HYDRAULIC PUMP
-
1613-39107 LOCKWASHER, (.312-24), MOUNTING BRACKET SCREWLOCKWASHER, (.312-24), MOUNTING BRACKET SCREW
-
1711-21908 NUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREWNUT, (.312-18) Cad Plated, MOUNTING BRACKET SCREW
-
1810-68298 BOLT, (.375-16 x 3.250), HYDRAULIC PUMP TO BOATBOLT, (.375-16 x 3.250), HYDRAULIC PUMP TO BOAT
-
1911-82671112 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2094279 BRACKET, MOUNTING, STARTER SOLENOIDBRACKET, MOUNTING, STARTER SOLENOID
-
2110-28638 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMPSCREW, MOUNTING BRACKET TO HYDRAULIC PUMP
-
2211-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
2389-96158T SOLENOID, StarterSOLENOID, Starter
-
2413-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (#8) Stainless Steel, SOLENOID TERMINAL
-
2511-26419 NUT, (#8-32) Brass, SOLENOID TERMINALNUT, (#8-32) Brass, SOLENOID TERMINAL
-
2613-26992 LOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINALLOCKWASHER, (.250) Stainless Steel, SOLENOID TERMINAL
-
2711-94330 NUT, (.250-20) Brass, SOLENOID TERMINALNUT, (.250-20) Brass, SOLENOID TERMINAL
-
2885-861680 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2910-41508 SCREW, STARTER SOLENOID TO MOUNTING BRACKETSCREW, STARTER SOLENOID TO MOUNTING BRACKET
-
3094275 LINK, SOLENOID TO SOLENOIDLINK, SOLENOID TO SOLENOID
-
3184-79139A13 CABLE ASSEMBLY, Battery (POSITIVE)CABLE ASSEMBLY, Battery (POSITIVE)
-
3184-79138A1 CABLE ASSEMBLY (NEGATIVE)CABLE ASSEMBLY (NEGATIVE)
-
3288-8M0085705 BREAKER, Circuit - 20 AmpereBREAKER, Circuit - 20 Ampere
-
3310-8M0113176 SCREW, CIRCUIT BREAKERSCREW, CIRCUIT BREAKER
-
3411-45076 NUT, (#10-32) Brass, CIRCUIT BREAKER TERMINALNUT, (#10-32) Brass, CIRCUIT BREAKER TERMINAL
-
3584-87379A5 WIRE, SOLENOID TO CIRCUIT BREAKER (RED)WIRE, SOLENOID TO CIRCUIT BREAKER (RED)
-
3688-79023T90 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
3712-96457 WASHER, Phenolic (.27 x .81 x .062), FUSE TERMINALWASHER, Phenolic (.27 x .81 x .062), FUSE TERMINAL
-
3811-21825 NUT, (.250-28), FUSE TERMINALNUT, (.250-28), FUSE TERMINAL
-
3984-61600A9 WIRE, STARTER SOLENOID (BLACK)WIRE, STARTER SOLENOID (BLACK)
