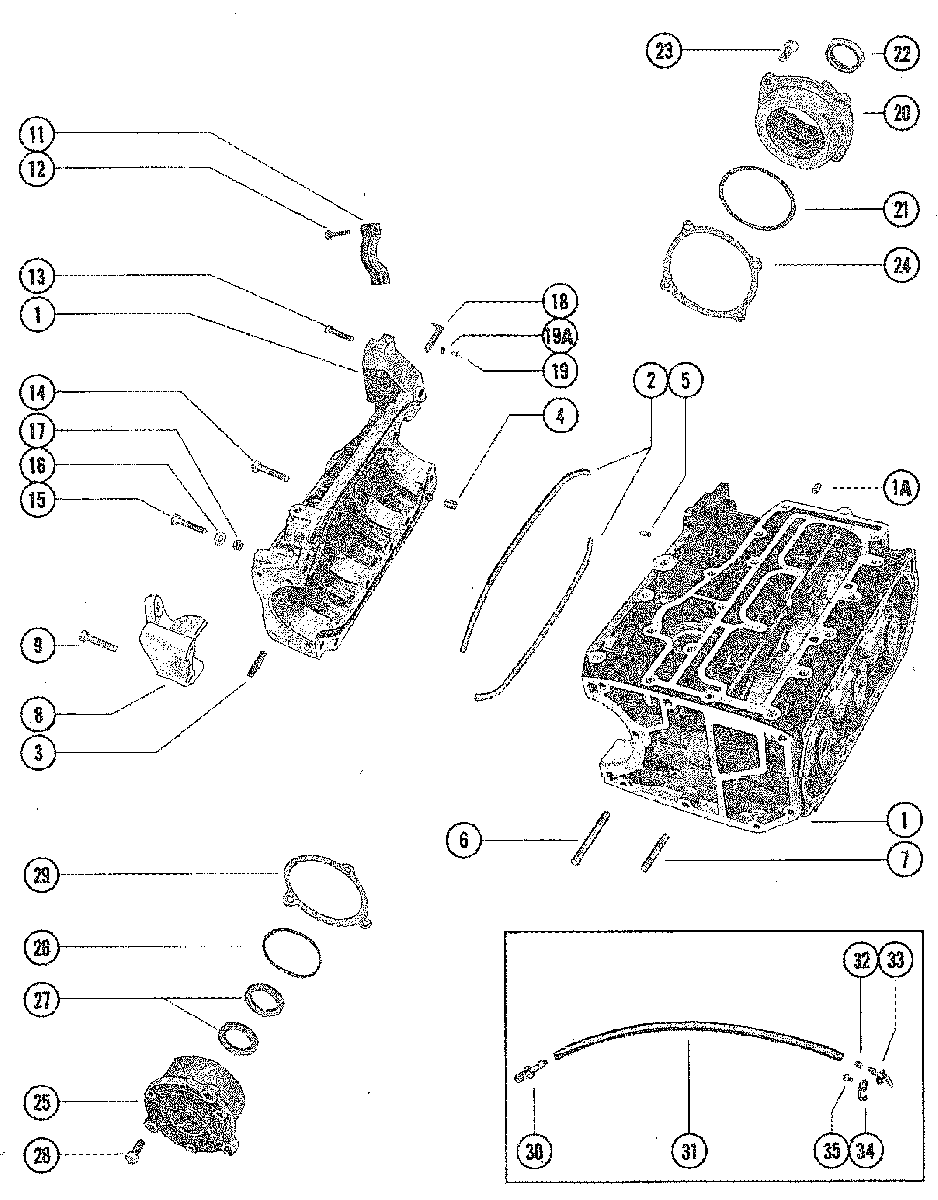

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 70 (3 CYL.) 7087823 THRU 7145937
-
№АртикулНазвание
-
1865-8362A11 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOWCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825248 AND BELOW
AUSTRALIA 8049849 AND BELOW
BELGIUM 9176875 AND BELOW
CANADA 7110247 AND BELOW -
1865-8362A11 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPCYLINDER BLOCK AND CRANKCASE ASSEMBLY
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
1A66517 RESTRICTOR, CRANKCASE BLEEDRESTRICTOR, CRANKCASE BLEED
-
227-60286 GASKET, CRANKCASE TO CYLINDER BLOCKGASKET, CRANKCASE TO CYLINDER BLOCK
-
316-68201 STUD
CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4")STUD
CRANKCASE TO DRIVE SHAFT HOUSING (2 1/4") -
417-43044 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
517-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
616-68203 STUD
BLOCK TO DRIVER SHAFT HOUSING (4")STUD
BLOCK TO DRIVER SHAFT HOUSING (4") -
716-68202 STUD
CLOCK TO DRIVER SHAFT HOUSING (3")-EXHAST SIDESTUD
CLOCK TO DRIVER SHAFT HOUSING (3")-EXHAST SIDE -
716-68167 STUD
BLOCK TO DRIVE SHAFT HOUSING (2 9/16")-TRANSFER SIDESTUD
BLOCK TO DRIVE SHAFT HOUSING (2 9/16")-TRANSFER SIDE -
876975 COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOWCOVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW -
876975 COVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPCOVER, STARTER MOTOR TO CRANKCASE (BOTTOM)
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
910-815549 SCREW, STARTER MOTOR COVER (2")SCREW, STARTER MOTOR COVER (2")
-
1179735A1 COVER, STARTER MOTOR TO CRANKCASE (TOP)COVER, STARTER MOTOR TO CRANKCASE (TOP)
-
1210-815549 SCREW, STARTER MOTOR COVER (2")
UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOWSCREW, STARTER MOTOR COVER (2")
UNITED STATES 4977156 AND BELOW AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOW -
1210-73657 SCREW, STARTER MOTOR COVER (1 1/2")SCREW, STARTER MOTOR COVER (1 1/2")
-
1210-58414 SCREW, STARTER MOTOR COVER (2 1/2")
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPSCREW, STARTER MOTOR COVER (2 1/2")
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
1210-35385 SCREW, STARTER MOTOR COVER (1 3/4")SCREW, STARTER MOTOR COVER (1 3/4")
-
1310-35385 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
-
1410-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1510-22039 SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")SCREW, CRANKCASE TO CYLINDER BLOCK (2 3/4")
-
1612-26020 WASHER
CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM)WASHER
CRANKCASE TO CYLINDER BLOCK SCREW (BOTTOM) -
1711-29250 NUT
CRANKCASE TO CYLINDER BLOCK SCREW ( BOTTOM)NUT
CRANKCASE TO CYLINDER BLOCK SCREW ( BOTTOM) -
1876617 INDICATOR, TIMING
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOWINDICATOR, TIMING
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW
CANADA 7110997 AND BELOW -
1910-69022 SCREW, INDICATOR TO STARTER COVERSCREW, INDICATOR TO STARTER COVER
-
19A12-30164 WASHER, INDICATOR SCREWWASHER, INDICATOR SCREW
-
1879736 INDICATOR, TIMINGINDICATOR, TIMING
-
1910-58414 SCREW, INDICATOR TO STARTER COVERSCREW, INDICATOR TO STARTER COVER
-
19A12-56720 WASHER, INDICATOR SCREWWASHER, INDICATOR SCREW
-
201161-6357A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
2125-64966 "O"RING, END CAP"O"RING, END CAP
-
2226-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
2310-812618 SCREW, UPPER END CAP MOUNTING (1")SCREW, UPPER END CAP MOUNTING (1")
-
2415-73644A1 SHIM, UPPER END CAP (.006-8-10)SHIM, UPPER END CAP (.006-8-10)
-
251144-6691A1 END CAP ASSEMBLY, LOWER
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOWEND CAP ASSEMBLY, LOWER
UNITED STATES 4977156 AND BELOW
AUSTRALIA 8050199 AND BELOW
BELGIUM 9196960 AND BELOW CANADA 7110997 AND BELOW -
251144-6691A1 END CAP ASSEMBLY, LOWER
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UPEND CAP ASSEMBLY, LOWER
UNITED STATES 4977157 AND UP
AUSTRALIA 8050200 AND UP
BELGIUM 9196961 AND UP
CANADA 7110998 AND UP -
2625-32546 "O"RING, END CAP"O"RING, END CAP
-
2726-41953 OIL SEAL, END CAPOIL SEAL, END CAP
-
2810-30225 SCREW, LOWER END CAP MOUNTING (1")SCREW, LOWER END CAP MOUNTING (1")
-
2915-20085A1 SHIM, LOWER END CAP (.002-3-5-10)SHIM, LOWER END CAP (.002-3-5-10)
-
3022-291112 CONECTOR, HOSE CYLINDER BLOCK
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UPCONECTOR, HOSE CYLINDER BLOCK
UNITED STATES 4825249 AND UP
AUSTRALIA 8049850 AND UP
BELGIUM 9176876 AND UP
CANADA 7110248 AND UP -
3132-774572 HOSE, TELL TALE (15")HOSE, TELL TALE (15")
-
3223-90882 SLEEVE, TELL TALE HOSESLEEVE, TELL TALE HOSE
-
3369555001 NOZZLE, TELLTALE-REAR SUPORT BRACKETNOZZLE, TELLTALE-REAR SUPORT BRACKET
-
3454-70705 CLAMP, TELL TALE NOZZLECLAMP, TELL TALE NOZZLE
-
3510-48408 SCREW, TELLTALE CLAMPSCREW, TELLTALE CLAMP
