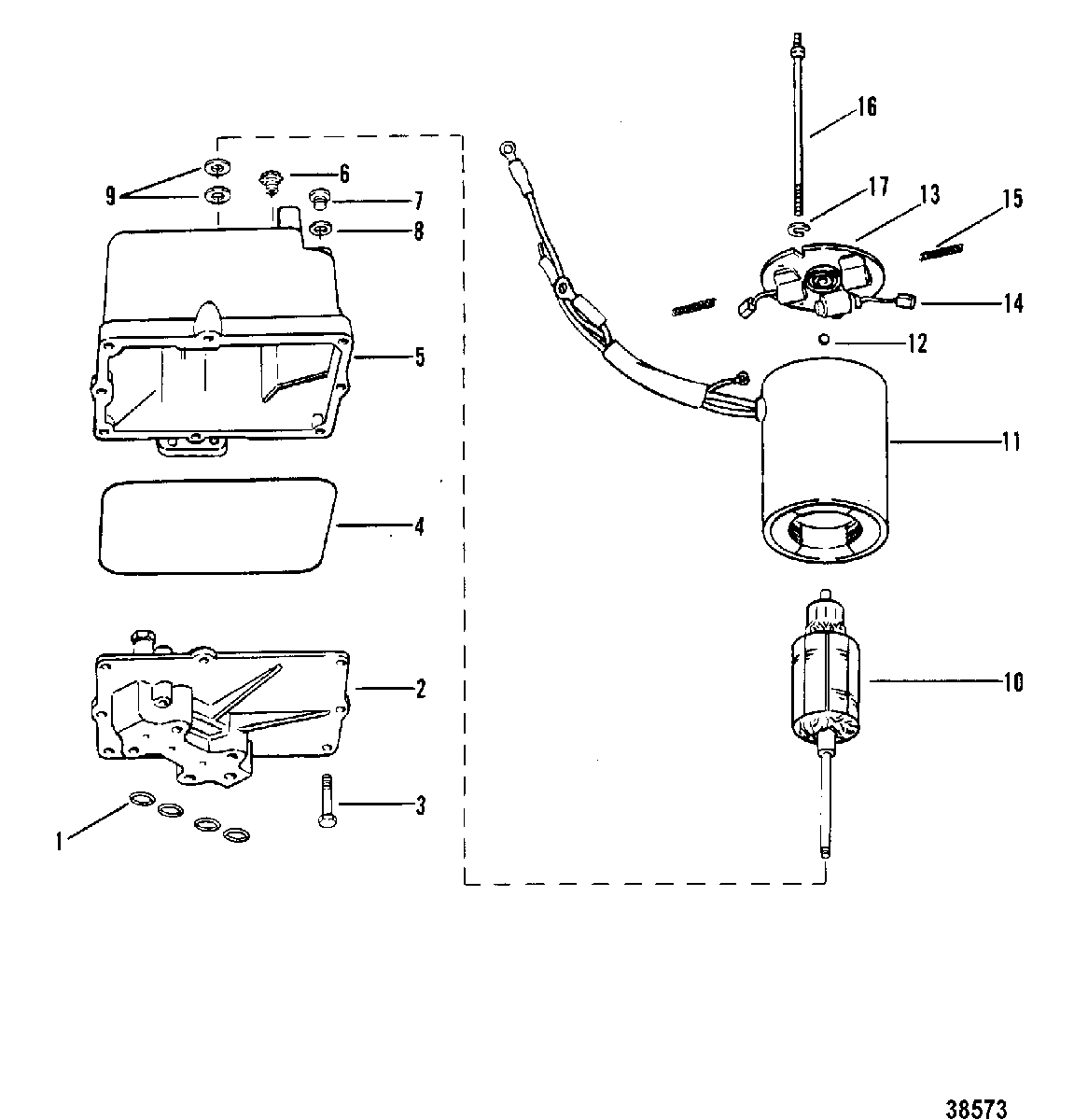

HYDRAULIC PUMP ASSEMBLY(METAL RESERVOIR) для Mercury - 70 (3 CYL.) 7145938 THRU 7208332
-
№АртикулНазвание
-
-92975A32 PUMP ASSEMBLY, Hydraulic, COMLETEPUMP ASSEMBLY, Hydraulic, COMLETE
-
125-48171 O-RING, (.364. x .070)O-RING, (.364. x .070)
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
310-20411 SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIRSCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR
-
4392-7735 SEAL, RESEROVIR TO VALVE BODY AND GEARSEAL, RESEROVIR TO VALVE BODY AND GEAR
-
5392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
610-62269 SCREW, (#10-32 x .437), VENT - HYDRAULIC PUMPSCREW, (#10-32 x .437), VENT - HYDRAULIC PUMP
-
710-79953Q04 SCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMPSCREW, (.375-16 x .250), FILLER - HYDRUALIC PUMP
-
812-191833 WASHERWASHER
-
9392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
10392-2943 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
11392-2942 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
12392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
13392-2940 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
14392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
15392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
16392-2938 BOLT SETBOLT SET
-
1713-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
