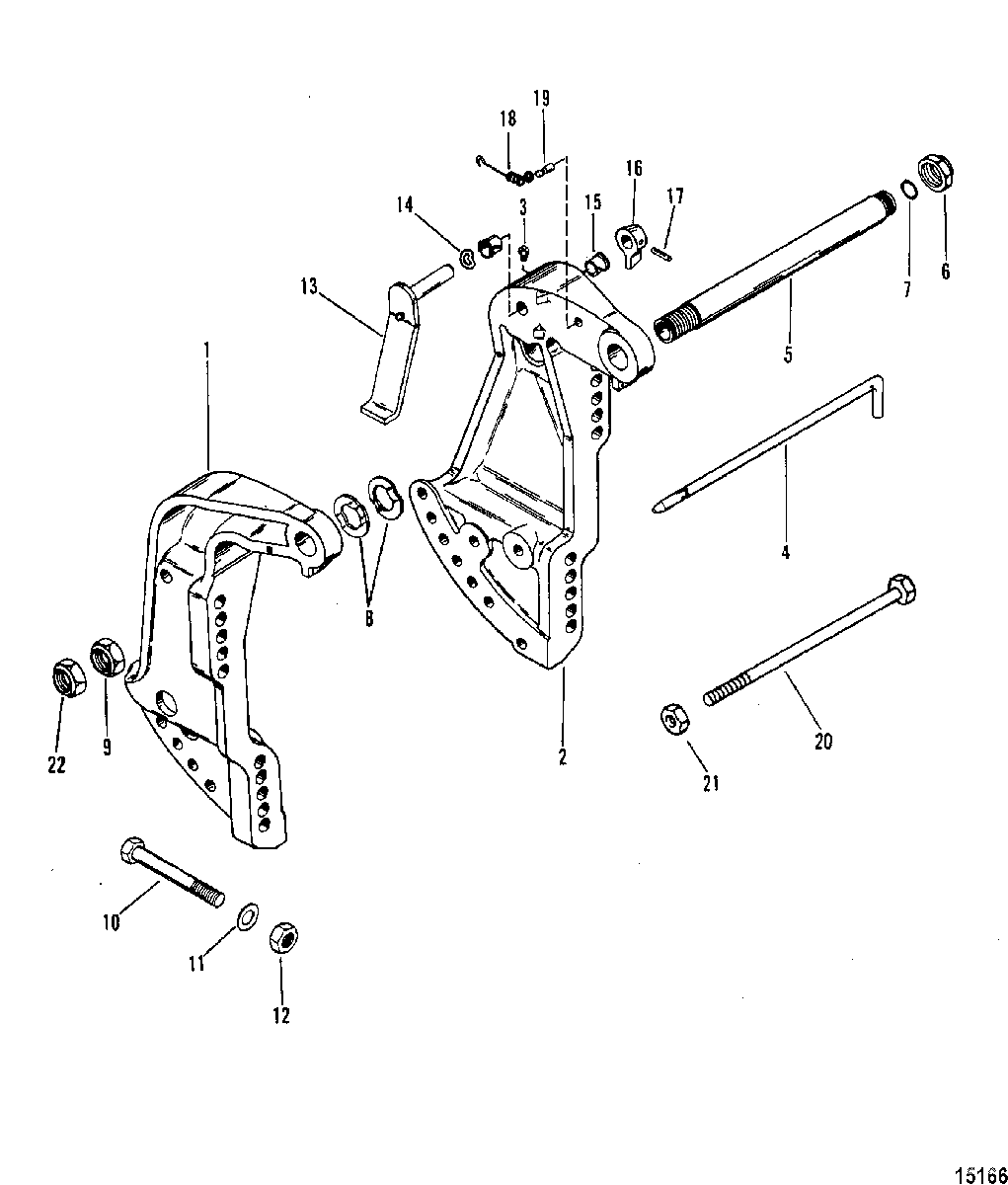

Transom Bracket для Mercury - 70 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
13401-8718F7 BRACKET ASSEMBLY, Transom, Starboard, BlackBRACKET ASSEMBLY, Transom, Starboard, Black
-
23400-8716A8 BRACKET ASSEMBLY, Transom, Port, BlackBRACKET ASSEMBLY, Transom, Port, Black
-
13401-8718F8 BRACKET ASSEMBLY, Transom, Starboard, GrayBRACKET ASSEMBLY, Transom, Starboard, Gray
-
23400-8716A9 BRACKET ASSEMBLY, Transom, Port, GrayBRACKET ASSEMBLY, Transom, Port, Gray
-
13401-8718F8 BRACKET ASSEMBLY, Transom, Starboard, OysterBRACKET ASSEMBLY, Transom, Starboard, Oyster
-
23400-8716A9 BRACKET ASSEMBLY, Transom, PortBRACKET ASSEMBLY, Transom, Port
-
322-98727 FITTING, Grease, Port, Transcom BracketFITTING, Grease, Port, Transcom Bracket
-
417-8M0026068 PIN ASSEMBLY, Tilt Lock, Non-Power TrimPIN ASSEMBLY, Tilt Lock, Non-Power Trim
-
5826125A1 TILT TUBETILT TUBE
-
611-82671327 NUT, Tilt Tube (1"-14) BlackNUT, Tilt Tube (1"-14) Black
-
611-82671327 NUT, Tilt Tube (1"-14) GrayNUT, Tilt Tube (1"-14) Gray
-
725-45711 O-RING, (.612 x .103), Tilt TubeO-RING, (.612 x .103), Tilt Tube
-
813-88750 WASHER, Tilt TubeWASHER, Tilt Tube
-
911-858869 NUT, (.875-14), Tilt Tube (.875)NUT, (.875-14), Tilt Tube (.875)
-
1010-677551 SCREW, (.500-20 x 4.500), Transom Bracket To TransomSCREW, (.500-20 x 4.500), Transom Bracket To Transom
-
1112-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Transom Bracket BoltWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Transom Bracket Bolt
-
1112-24501 WASHER, Transom Bracket Bolt
(Upper, Oyster)WASHER, Transom Bracket Bolt
(Upper, Oyster) -
1211-91962 NUT, (.500-20), Transom Bracket BoltNUT, (.500-20), Transom Bracket Bolt
-
138M0115104 LEVER ASSEMBLY, Tilt LockLEVER ASSEMBLY, Tilt Lock
-
1413-99611 WAVE WASHER, Tilt LeverWAVE WASHER, Tilt Lever
-
1523-65830 NYLINER, Tilt LeverNYLINER, Tilt Lever
-
1699633 KNOB, Tilt Lock Lever, BlackKNOB, Tilt Lock Lever, Black
-
1699633 KNOB, Tilt Lock Lever, GrayKNOB, Tilt Lock Lever, Gray
-
1699633 KNOB, Tilt Lock Lever, OysterKNOB, Tilt Lock Lever, Oyster
-
1717-99615 PIN, GroovePIN, Groove
-
1824-99622 SPRINGSPRING
-
1917-99604 PIN, GroovePIN, Groove
-
2010-96930A1 BOLT ASSEMBLY, Tilt Lock, Power TrimBOLT ASSEMBLY, Tilt Lock, Power Trim
-
2111-23161 NUT, (.375-24), Power TrimNUT, (.375-24), Power Trim
-
2211-8M0041651 NUT, (.875-14), Power TrimNUT, (.875-14), Power Trim
