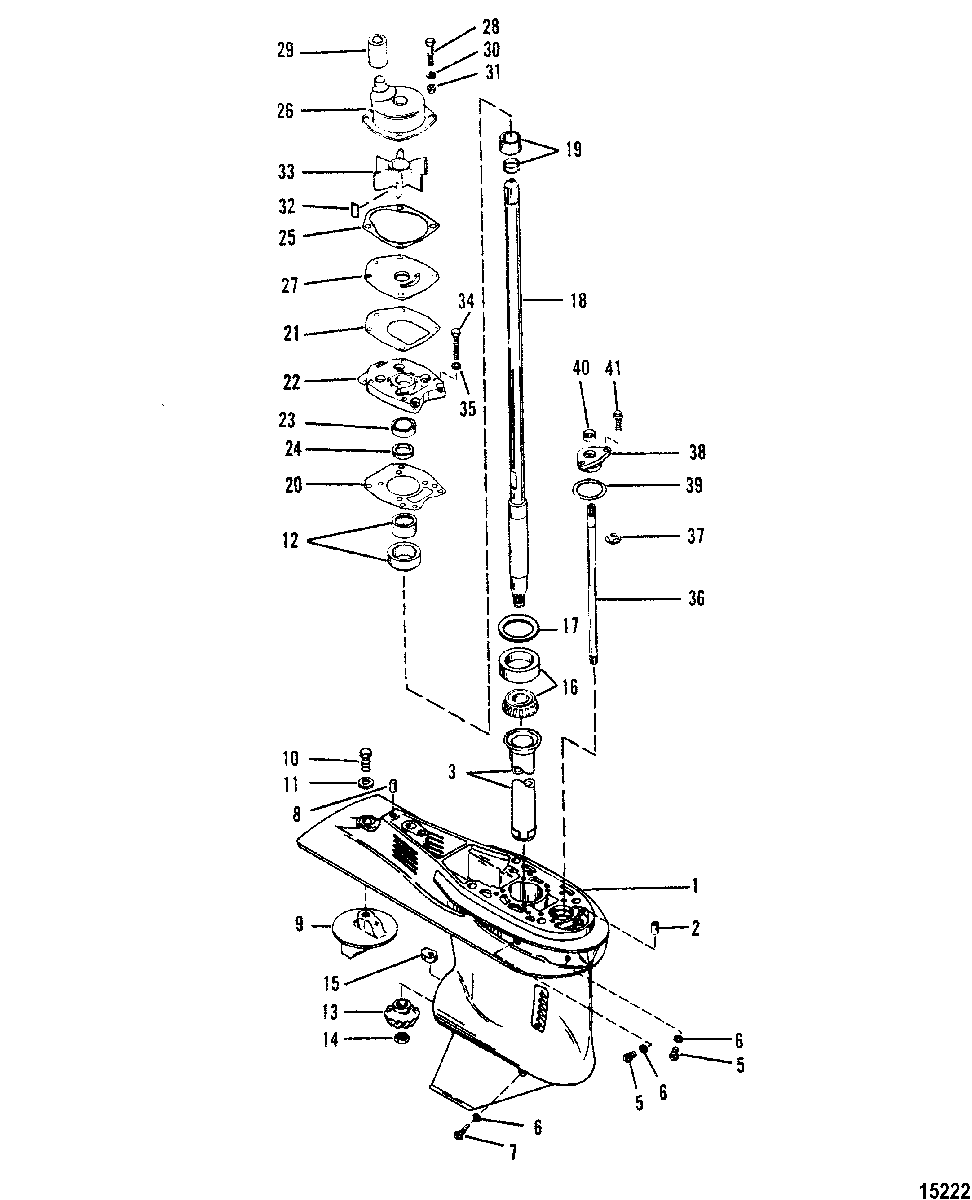

Gear Housing(Drive Shaft) для Mercury - 75 (3 CYL.) 0C222000 THRU 0D283221
-
№АртикулНазвание
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
-1667-9011J16 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
11667-9011T73 GEAR HOUSING ASSEMBLY, BlackGEAR HOUSING ASSEMBLY, Black
-
11667-9011T73 GEAR HOUSING ASSEMBLY, GrayGEAR HOUSING ASSEMBLY, Gray
-
217-8M0084244 PIN, Dowel (.375 x .625), FrontPIN, Dowel (.375 x .625), Front
-
343046 OILER TUBEOILER TUBE
-
510-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
612-191833 WASHER, FiberWASHER, Fiber
-
722-8M0058389 SCREW, MagneticSCREW, Magnetic
-
817-43044 PIN, Dowel (.375 x .625), RearPIN, Dowel (.375 x .625), Rear
-
997-31640Q4 TRIM TABTRIM TAB
-
1010-825427 SCREW, (.437-14 x 1.250)SCREW, (.437-14 x 1.250)
-
1112-45176 WASHER, (.453 x .812 x .105)WASHER, (.453 x .812 x .105)
-
1243040T1 CARRIERCARRIER
-
1343-44484T PINION GEARPINION GEAR
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
15760394 SHIFT CAMSHIFT CAM
-
1631-42677A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
1715-8M0063265 SHIM SETSHIM SET
-
1845-43031A1 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
1942461A1 WEAR SLEEVE ASSEMBLYWEAR SLEEVE ASSEMBLY
-
2027-430472 GASKETGASKET
-
2127-430331 GASKETGASKET
-
2246-8M0113262 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
2326-43036 OIL SEAL, Lower, Aluminum CoverOIL SEAL, Lower, Aluminum Cover
-
2426-43035 OIL SEAL, Upper, Aluminum CoverOIL SEAL, Upper, Aluminum Cover
-
2527-430341 GASKET ALUMINUM COVER
(Use With Reference Number 30 And 31) (Aluminum Cover)GASKET ALUMINUM COVER
(Use With Reference Number 30 And 31) (Aluminum Cover) -
2527-8172771 GASKET
(Use Without Reference Number 30 And 31) (Aluminum Cover 6, 7)GASKET
(Use Without Reference Number 30 And 31) (Aluminum Cover 6, 7) -
2246-8M0113262 COVER ASSEMBLY, Plastic CoverCOVER ASSEMBLY, Plastic Cover
-
2246-8M0113262 COVER ASSEMBLY, Aluminum CoverCOVER ASSEMBLY, Aluminum Cover
-
2326-43036 OIL SEAL, Lower, Plastic CoverOIL SEAL, Lower, Plastic Cover
-
2426-43035 OIL SEAL, Upper, Plastic CoverOIL SEAL, Upper, Plastic Cover
-
2527-430341 GASKET ALUMINUM COVER, Plastic CoverGASKET ALUMINUM COVER, Plastic Cover
-
26817275A2 WATER PUMP ASSEMBLY
(Use With Reference Number 30 And 31)WATER PUMP ASSEMBLY
(Use With Reference Number 30 And 31) -
27NLA No Longer Available, Face Plate
(Order 817275A2) (Use With Reference Number 30 And 31)No Longer Available, Face Plate
(Order 817275A2) (Use With Reference Number 30 And 31) -
2810-4000332 SCREW, (M6 x 35), Use With Reference Number 30 And 31SCREW, (M6 x 35), Use With Reference Number 30 And 31
-
2943023 SEAL, Use With Reference Number 30 And 31SEAL, Use With Reference Number 30 And 31
-
3012-4002315 WASHER, Use With Reference Number 30 And 31WASHER, Use With Reference Number 30 And 31
-
3123-43045 INSULATOR, Use With Reference Number 30, 31, 6, And 7INSULATOR, Use With Reference Number 30, 31, 6, And 7
-
26817275A2 WATER PUMP HOUSING, Upper, Use Without Reference Number 30, 31, And 7WATER PUMP HOUSING, Upper, Use Without Reference Number 30, 31, And 7
-
278172761 FACE PLATE, Use Without Reference Number 30, 31, And 7FACE PLATE, Use Without Reference Number 30, 31, And 7
-
2810-40011130 SCREW, (M6 x 30), Use Without Reference Number 30 And 31SCREW, (M6 x 30), Use Without Reference Number 30 And 31
-
2943023 SEAL, Use Without Reference Number 30 And 31SEAL, Use Without Reference Number 30 And 31
-
3228-8M0032833 KEYKEY
-
3347-43026T2 IMPELLERIMPELLER
-
3410-4000330 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3512-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
3643048A1 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RINGO-RING
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-8M4503518 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
-27-43004A99 GASKET SETGASKET SET
-
-26-43035A4 GEAR HOUSING SEAL KITGEAR HOUSING SEAL KIT
-
-46-8M0113799 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
