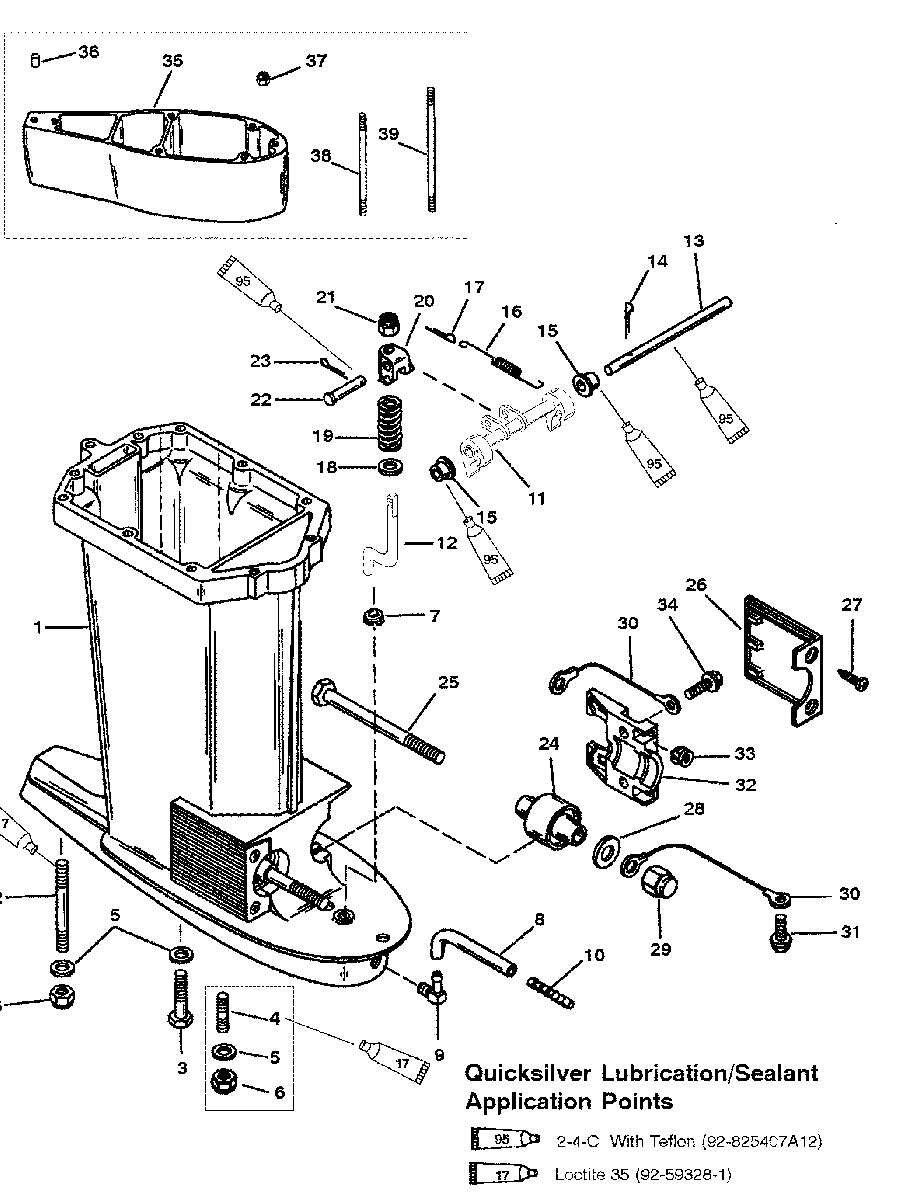

DRIVE SHAFT HOUSING для Mercury - 75 (3 CYL.) 0D283222 THRU 0G760299
-
№АртикулНазвание
-
1898289A49 DRIVE SHAFT HOUSING ASSEMBLY
(BLACK)DRIVE SHAFT HOUSING ASSEMBLY
(BLACK) -
1898289A49 DRIVE SHAFT HOUSING ASSEMBLY
(GRAY)DRIVE SHAFT HOUSING ASSEMBLY
(GRAY) -
1898289A49 DRIVE SHAFT HOUSING
(TRACKER-GRAPHITE GRAY)DRIVE SHAFT HOUSING
(TRACKER-GRAPHITE GRAY) -
11598-8974A26 DRIVE SHAFT HOUSING ASSEMBLY
(BLACK-JET)DRIVE SHAFT HOUSING ASSEMBLY
(BLACK-JET) -
11598-8974A27 DRIVE SHAFT HOUSING ASSEMBLY
(GRAY-JET)DRIVE SHAFT HOUSING ASSEMBLY
(GRAY-JET) -
216-903501 STUD (100MM)
(LONG)STUD (100MM)
(LONG) -
216-8M0034445 STUD (166MM)
(LL)STUD (166MM)
(LL) -
310-4000380 SCREW (M10 X 1.5 X 45)
(LONG)(DESIGN I)SCREW (M10 X 1.5 X 45)
(LONG)(DESIGN I) -
416-9035012 STUD (63MM)
(LONG)(DESIGN II)STUD (63MM)
(LONG)(DESIGN II) -
416-8M0034446 STUD (124M)
(LL)STUD (124M)
(LL) -
512-45176 WASHERWASHER
-
611-40140 NUTNUT
-
7429222 GUIDE
(NON POWER TRIM)GUIDE
(NON POWER TRIM) -
822-85822A4 SPEEDOMETER PICK-UP ASSEMBLYSPEEDOMETER PICK-UP ASSEMBLY
-
922-433351 CONNECTOR (90 DEGREES)CONNECTOR (90 DEGREES)
-
1022-85822T CONNECTOR (STRAIGHT)CONNECTOR (STRAIGHT)
-
1114664A2 REVERSE HOOK ASSEMBLY
NON POWER TRIMREVERSE HOOK ASSEMBLY
NON POWER TRIM -
1216686 PUSH ROD
NON POWER TRIMPUSH ROD
NON POWER TRIM -
1399606 SHAFT
NON POWER TRIMSHAFT
NON POWER TRIM -
1418-45882 COTTER PIN
NON POWER TRIMCOTTER PIN
NON POWER TRIM -
1523-69132 BUSHING
NON POWER TRIMBUSHING
NON POWER TRIM -
1624-996261 SPRING
NON POWER TRIMSPRING
NON POWER TRIM -
1718-47959 COTTER PIN
NON POWER TRIMCOTTER PIN
NON POWER TRIM -
1812-8M0042642 WASHER
NON POWER TRIMWASHER
NON POWER TRIM -
1924-16733 SPRING
NON POWER TRIMSPRING
NON POWER TRIM -
20996361 YOKE
NON POWER TRIMYOKE
NON POWER TRIM -
2111-82670911 JAM NUT
NON POWER TRIMJAM NUT
NON POWER TRIM -
2217-99663 CLEVIS PIN
NON POWER TRIMCLEVIS PIN
NON POWER TRIM -
2318-25191 COTTER PIN
NON POWER TRIMCOTTER PIN
NON POWER TRIM -
2442930A1 MOUNT
(OIL INJECTION) (JET 65)MOUNT
(OIL INJECTION) (JET 65) -
2444343T1 MOUNT
(NON OIL INJECTION)MOUNT
(NON OIL INJECTION) -
2510-898835001 BOLT (M12 X 1.75 X 154)BOLT (M12 X 1.75 X 154)
-
26100-8M4500752 COVER
(BLACK)COVER
(BLACK) -
26100-8M4500752 COVER
(GRAY)COVER
(GRAY) -
26100-8M4500752 COVER
(TRACKER-GRAPHITE GRAY)COVER
(TRACKER-GRAPHITE GRAY) -
2710-88417 SCREW (12-24 X 5/8 IN.)SCREW (12-24 X 5/8 IN.)
-
2812-30119 WASHERWASHER
-
2911-43528 NUTNUT
-
3088238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
3110-41508 SCREW (1/4-20 X 3/8)SCREW (1/4-20 X 3/8)
-
328M0036730 CLAMPCLAMP
-
3311-35521 NUTNUT
-
3410-4010725 SCREW (M8 X 1.25 X 25)SCREW (M8 X 1.25 X 25)
-
35816696T7 SPACER
(BLACK)(2-1/2 IN.) LL & X-LONGSPACER
(BLACK)(2-1/2 IN.) LL & X-LONG -
35816696T8 SPACER
(GRAY)(2-1/2 IN.) LL & X-LONGSPACER
(GRAY)(2-1/2 IN.) LL & X-LONG -
3512092A3 SPACER
(BLACK)(5 IN.) LL & X-LONGSPACER
(BLACK)(5 IN.) LL & X-LONG -
3512092A4 SPACER
(GRAY)(5 IN.) LL & X-LONGSPACER
(GRAY)(5 IN.) LL & X-LONG -
3617-43044 DOWEL PIN
LL & X-LONGDOWEL PIN
LL & X-LONG -
3617-8M0084244 DOWEL PIN (W/HOLE)
LL & X-LONGDOWEL PIN (W/HOLE)
LL & X-LONG -
3711-40140 NUT
LL & X-LONGNUT
LL & X-LONG -
3816-8M0034446 STUD (124MM)
(2-1/2 IN. SPACER) LL & X-LONGSTUD (124MM)
(2-1/2 IN. SPACER) LL & X-LONG -
3816-903503 STUD (190MM)
(5 IN. SPACER) LL & X-LONGSTUD (190MM)
(5 IN. SPACER) LL & X-LONG -
3916-8M0034445 STUD (166MM)
(2-1/2 IN. SPACER) LL & X-LONGSTUD (166MM)
(2-1/2 IN. SPACER) LL & X-LONG -
3916-903502 STUD (227MM)
(5 IN. SPACER) LL & X-LONGSTUD (227MM)
(5 IN. SPACER) LL & X-LONG
