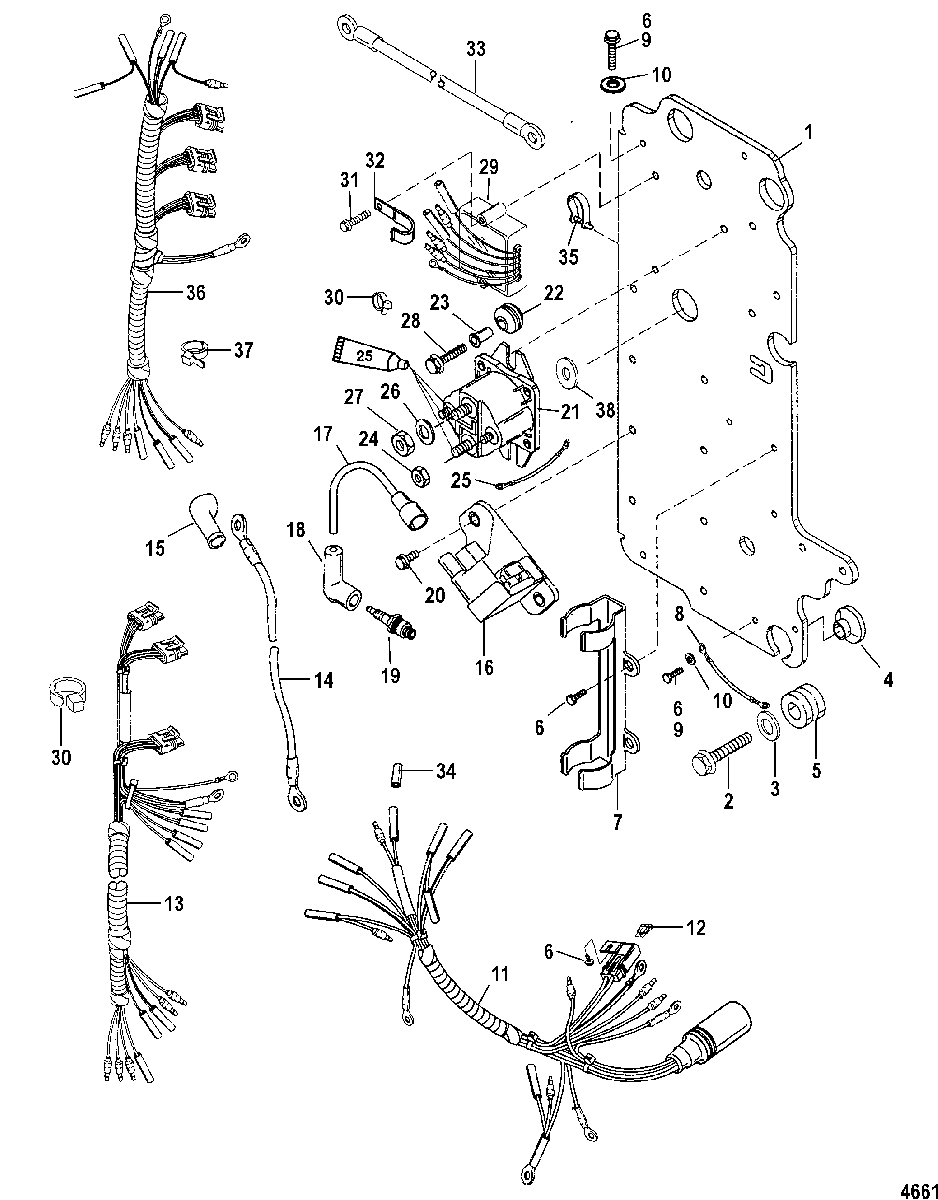

Electrical Components для Mercury - 75 (3 CYL.) 1B000000 & Up
-
№АртикулНазвание
-
18327531 PLATE, ElectricalPLATE, Electrical
-
210-40011150 SCREW, (M8 x 30) Stainless SteelSCREW, (M8 x 30) Stainless Steel
-
312-49436 WASHERWASHER
-
423-8502341 BUSHINGBUSHING
-
525-833155 GROMMETGROMMET
-
610-82239312 SCREW, (M5 x 12)
(Electric)SCREW, (M5 x 12)
(Electric) -
78261151 CLAMP, ConnectorCLAMP, Connector
-
884-88807A44 CABLE ASSEMBLY (10 Inch)CABLE ASSEMBLY (10 Inch)
-
910-82239312 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
1012-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1184-850043A2 HARNESS ASSEMBLY, Engine
(Electric)HARNESS ASSEMBLY, Engine
(Electric) -
1288-812619 FUSE, Yellow - 20 Ampere
(Electric)FUSE, Yellow - 20 Ampere
(Electric) -
1384-850046A2 HARNESS ASSEMBLY, Ignition
(Electric)HARNESS ASSEMBLY, Ignition
(Electric) -
1484-88439A3 CABLE ASSEMBLY, Positive - Battery
(Electric)CABLE ASSEMBLY, Positive - Battery
(Electric) -
1585-830233 BOOT, Insulator - Red
(Electric)BOOT, Insulator - Red
(Electric) -
16827509A10 CDM MODULE ASSEMBLYCDM MODULE ASSEMBLY
-
1784-821945A61 CABLE ASSEMBLY, Hi TensionCABLE ASSEMBLY, Hi Tension
-
1885-63709A1 BOOT/TERMINAL KITBOOT/TERMINAL KIT
-
1933-97182Q SPARK PLUG
(NGK#BUHW-2)SPARK PLUG
(NGK#BUHW-2) -
1933-14103Q SPARK PLUG
(NGK#BUZHW-2)SPARK PLUG
(NGK#BUZHW-2) -
2010-82129116 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2189-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
(Electric)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
(Electric) -
2225-822179 GROMMET
(Electric)GROMMET
(Electric) -
2323-818968 BUSHING
(Electric)BUSHING
(Electric) -
2411-45076 NUT, (#10-32) Brass
(Electric)NUT, (#10-32) Brass
(Electric) -
2584-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
(Electric)CABLE ASSEMBLY, (4.00 Inches) Black
(Electric) -
2613-26993 LOCKWASHER, (.312)
(Electric)LOCKWASHER, (.312)
(Electric) -
2711-68292 NUT, (.312-18)
(Electric)NUT, (.312-18)
(Electric) -
2810-82129125 SCREW, (M6 x 25 MM)
(Electric)SCREW, (M6 x 25 MM)
(Electric) -
298M0084173 REGULATOR, Voltage
(Electric)REGULATOR, Voltage
(Electric) -
3054-816311T TIE STRAP, (8.00 Inches)
(Electric)TIE STRAP, (8.00 Inches)
(Electric) -
3110-82129135 SCREW, (M6 x 35)
(Electric)SCREW, (M6 x 35)
(Electric) -
3254-54457 J CLIP
(Electric)J CLIP
(Electric) -
3384-88439A4 CABLE ASSEMBLY, Battery - Negative
(Electric)CABLE ASSEMBLY, Battery - Negative
(Electric) -
3413541 PLUG, Male
(Electric)PLUG, Male
(Electric) -
3554-834813 CLAMPCLAMP
-
3684-850044A2 HARNESS ASSEMBLY, Engine
(Manual)HARNESS ASSEMBLY, Engine
(Manual) -
3754-816311T TIE STRAP, (8.00 Inches)
(Manual)TIE STRAP, (8.00 Inches)
(Manual) -
3812-36001 WASHERWASHER
