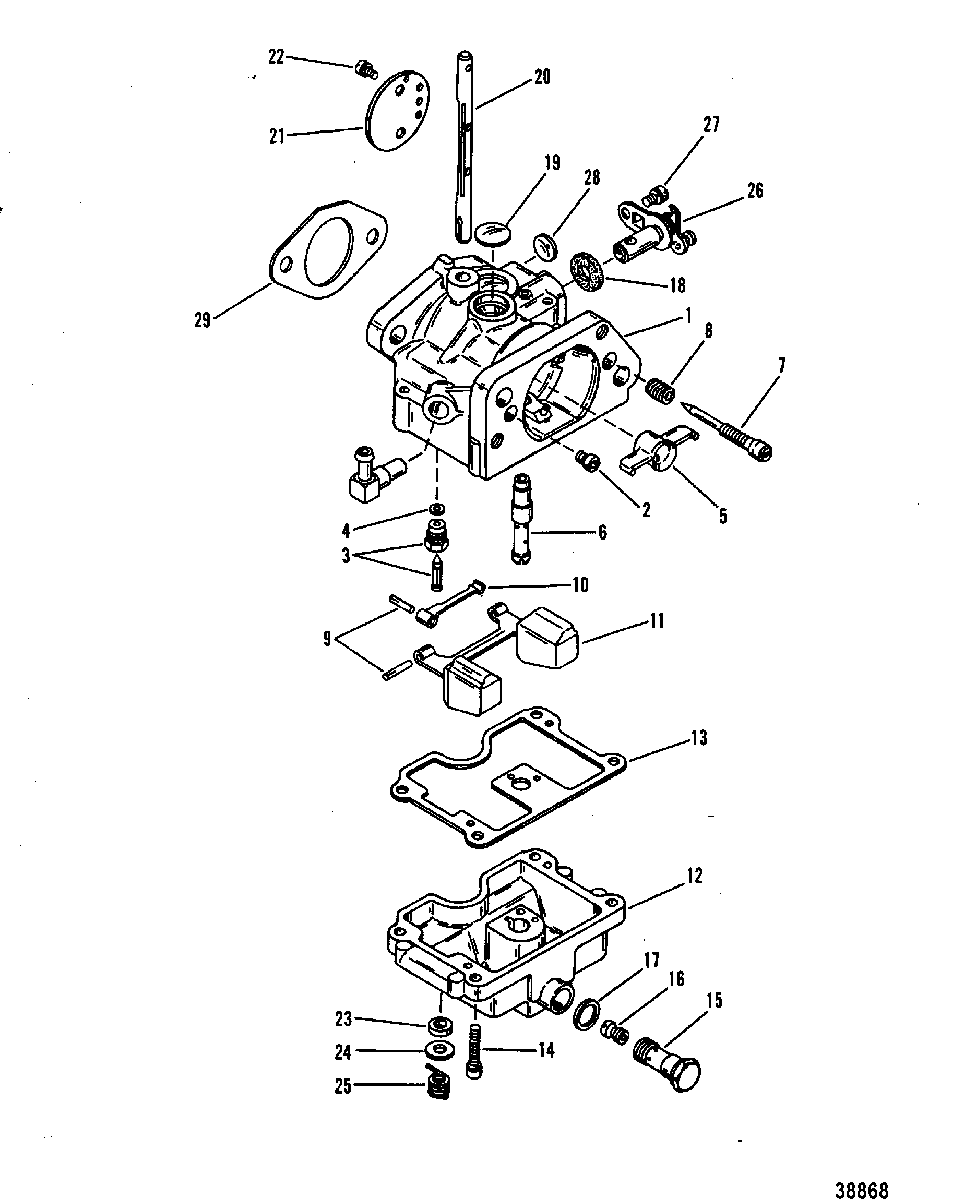

CARBURETOR ASSEMBLY для Mercury - 75 (4 CYL.) 6432901 & Up
-
№АртикулНазвание
-
11379-6071A57 CARBURETOR ASSEMBLY
(TOP)(WM-14)CARBURETOR ASSEMBLY
(TOP)(WM-14) -
11379-6071A58 CARBURETOR ASSEMBLY
(BOTTOM)(WM-14)CARBURETOR ASSEMBLY
(BOTTOM)(WM-14) -
11379-6071A57 CARBURETOR
(TOP)(WM-17)CARBURETOR
(TOP)(WM-17) -
11379-6071A58 CARBURETOR
(BOTTOM)(WM-17)CARBURETOR
(BOTTOM)(WM-17) -
21395-5733 JET, Main (.092)JET, Main (.092)
-
3192711 NEEDLE AND SEAT, InletNEEDLE AND SEAT, Inlet
-
4NSS NOT SOLD SEPARATE, GASKET-INLET NEEDLE AND SEATNOT SOLD SEPARATE, GASKET-INLET NEEDLE AND SEAT
-
552106A1 VENTURI, PlasticVENTURI, Plastic
-
6NSS NOT SOLD SEPARATE, NOZZLENOT SOLD SEPARATE, NOZZLE
-
7NSS NOT SOLD SEPARATE, IDLE NEEDLENOT SOLD SEPARATE, IDLE NEEDLE
-
8NSS NOT SOLD SEPARATE, SPRING-IDLE MIXTURENOT SOLD SEPARATE, SPRING-IDLE MIXTURE
-
9NSS NOT SOLD SEPARATE, FLOAT PINNOT SOLD SEPARATE, FLOAT PIN
-
10NSS NOT SOLD SEPARATE, FLOAT LEVERNOT SOLD SEPARATE, FLOAT LEVER
-
1119273 FLOATFLOAT
-
121395-6195 BOWL, Fuel
(WM-14)BOWL, Fuel
(WM-14) -
121395-9483 BOWL, Fuel
(WM-17)BOWL, Fuel
(WM-17) -
13NSS NOT SOLD SEPARATE, GASKET-FUEL BOWLNOT SOLD SEPARATE, GASKET-FUEL BOWL
-
14NSS NOT SOLD SEPARATE, SCREW-FUEL BOWLNOT SOLD SEPARATE, SCREW-FUEL BOWL
-
151395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
161399-3518 JET, (.082), MAINJET, (.082), MAIN
-
17NSS NOT SOLD SEPARATE, GASKET-MAIN JET PLUGNOT SOLD SEPARATE, GASKET-MAIN JET PLUG
-
18NSS NOT SOLD SEPARATE, SCREEN-FUEL INLETNOT SOLD SEPARATE, SCREEN-FUEL INLET
-
19NSS NOT SOLD SEPARATE, WELCH PLUG (9/16")NOT SOLD SEPARATE, WELCH PLUG (9/16")
-
201395-4807 SHAFT, Throttle
(TOP)SHAFT, Throttle
(TOP) -
201395-7942 SHAFT, THROTTLE
(BOTTOM)SHAFT, THROTTLE
(BOTTOM) -
211395-7639 VALVE, THROTTLEVALVE, THROTTLE
-
22NSS NOT SOLD SEPARATE, SCREW-VALVE TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW-VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
25NSS NOT SOLD SEPARATE, SPRING-THROTTLE RETURNNOT SOLD SEPARATE, SPRING-THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
27NSS NOT SOLD SEPARATE, SCREW-ENRICHMENT BRACKETNOT SOLD SEPARATE, SCREW-ENRICHMENT BRACKET
-
28NSS NOT SOLD SEPARATE, WELCH PLUG (7/16")NOT SOLD SEPARATE, WELCH PLUG (7/16")
-
2927-733771 GASKET, CARBURETORGASKET, CARBURETOR
-
-1395-6200 GASKET KITGASKET KIT
-
-812953 REPAIR KIT
(WM-14)REPAIR KIT
(WM-14) -
-812953 REPAIR KIT
(WM-17)REPAIR KIT
(WM-17) -
-27-73645A87 GASKET SETGASKET SET
