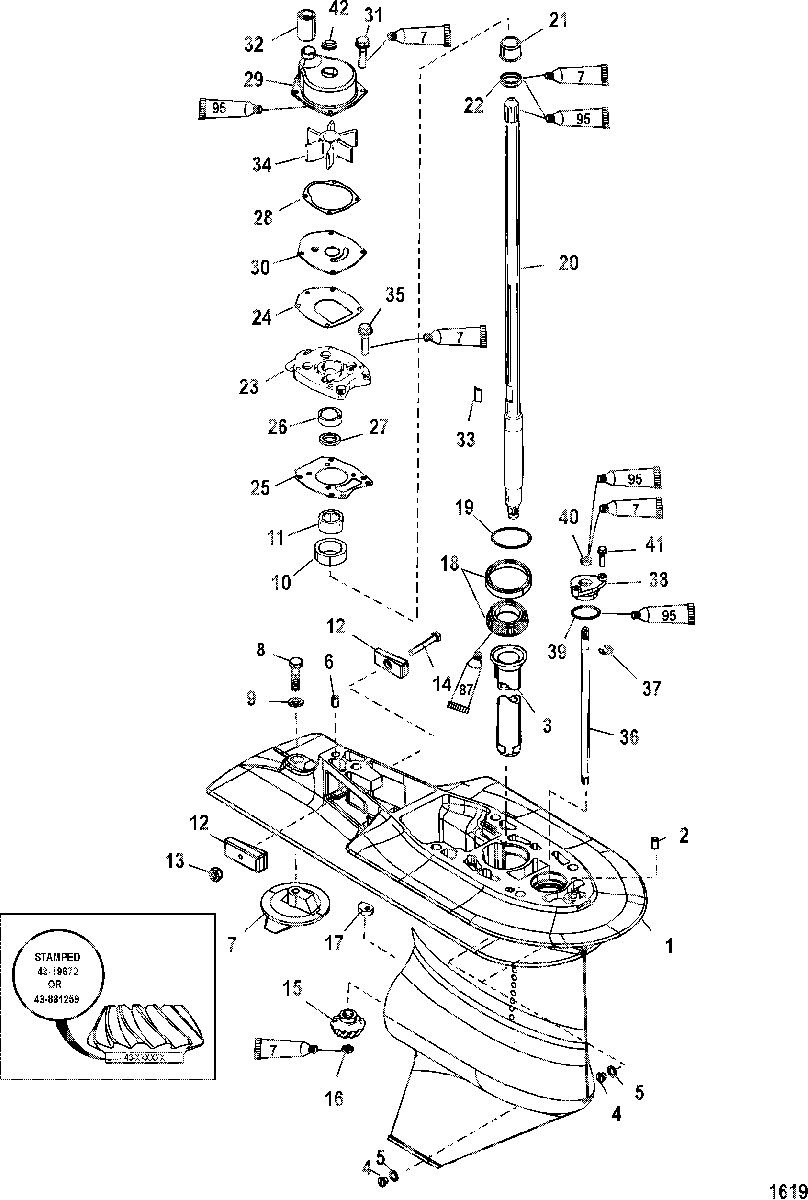

Gear Hsg Drive 2.07:1-S/N-0T598999 & Below для Mercury - 75 (4-STROKE) 0G960500 THRU 0T800999
-
№АртикулНазвание
-
-1667-9011J2 GEAR HOUSING ASSEMBLY
(Long) SN# 0T575479 & BelowGEAR HOUSING ASSEMBLY
(Long) SN# 0T575479 & Below -
-1667-9011J2 GEAR HOUSING ASSEMBLY
(Long) SN# 0T575480 THRU 0T598999GEAR HOUSING ASSEMBLY
(Long) SN# 0T575480 THRU 0T598999 -
-1667-9011J4 GEAR HOUSING ASSEMBLY
(X-Long) SN# 0T545479 & BelowGEAR HOUSING ASSEMBLY
(X-Long) SN# 0T545479 & Below -
-1667-9011J4 GEAR HOUSING ASSEMBLY
(X-Long) SN# 0T575480 THRU 0T598999GEAR HOUSING ASSEMBLY
(X-Long) SN# 0T575480 THRU 0T598999 -
11667-9011G59 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
217-8M0084244 PIN, Dowel - With Hole (.375 x .625) (Front)PIN, Dowel - With Hole (.375 x .625) (Front)
-
343046 TUBE, OilerTUBE, Oiler
-
410-79953Q04 SCREW KIT, (.375-16 x .250) DrainSCREW KIT, (.375-16 x .250) Drain
-
512-191833 WASHERWASHER
-
617-43044 PIN, Dowel - Without Hole (.375 x .625) (Rear)PIN, Dowel - Without Hole (.375 x .625) (Rear)
-
731640T07 TRIM TABTRIM TAB
-
810-825427 SCREW, (.437-14 x 1.250) Stainless SteelSCREW, (.437-14 x 1.250) Stainless Steel
-
912-451761 WASHER, (.453 x .812 x .105) Black OxideWASHER, (.453 x .812 x .105) Black Oxide
-
1043040T1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
11NSS NOT SOLD SEPARATE, Needle BearingNOT SOLD SEPARATE, Needle Bearing
-
1297-826134Q ANODEANODE
-
1311-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1410-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1543-881260A5 GEAR, Pinion (14 TEETH)(Replacement requires re-shimming)
SN# 0T545479 & BelowGEAR, Pinion (14 TEETH)(Replacement requires re-shimming)
SN# 0T545479 & Below -
15NSS NOT SOLD SEPARATE, Pinion Gear (Part of 43-881260A5)
SN# 0T575480 THRU 0T598999NOT SOLD SEPARATE, Pinion Gear (Part of 43-881260A5)
SN# 0T575480 THRU 0T598999 -
1611-35921 NUT, (.625-18)NUT, (.625-18)
-
17850307 CAM, Shift ControlCAM, Shift Control
-
1831-42677A1 BEARING ASSEMBLY, Tapered Roller
(Use With Pinion stamped 43-19672) SN# 0T575479 & BelowBEARING ASSEMBLY, Tapered Roller
(Use With Pinion stamped 43-19672) SN# 0T575479 & Below -
1831-883047A1 BEARING ASSEMBLY, Tapered Roller
(Use With Pinion stamped 43-881259) SN# 0T575480 THRU 0T598999BEARING ASSEMBLY, Tapered Roller
(Use With Pinion stamped 43-881259) SN# 0T575480 THRU 0T598999 -
1915-8M0063265 SHIM SETSHIM SET
-
2045-858765T1 DRIVESHAFT ASSEMBLY
(Long)DRIVESHAFT ASSEMBLY
(Long) -
2045-878575T1 DRIVESHAFT ASSEMBLY
(X-Long)DRIVESHAFT ASSEMBLY
(X-Long) -
2142461A1 SLEEVE/RING KITSLEEVE/RING KIT
-
22NSS NOT SOLD SEPARATE, Seal RingNOT SOLD SEPARATE, Seal Ring
-
2346-8M0113262 COVER ASSEMBLY, Water PumpCOVER ASSEMBLY, Water Pump
-
2427-430331 GASKETGASKET
-
2527-430472 GASKETGASKET
-
2626-43036 SEAL, Oil (Lower)SEAL, Oil (Lower)
-
2726-43035 SEAL, Oil (Upper)SEAL, Oil (Upper)
-
2827-8172771 GASKETGASKET
-
29817275A2 HOUSING KIT, Upper Water PumpHOUSING KIT, Upper Water Pump
-
308172761 FACEPLATEFACEPLATE
-
3110-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
32430232 SEALSEAL
-
3328-8M0032833 KEYKEY
-
3447-43026T2 IMPELLERIMPELLER
-
3510-82684425 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
36853906A1 SHIFT SHAFT ASSEMBLY
(Long)SHIFT SHAFT ASSEMBLY
(Long) -
36853908A1 SHIFT SHAFT ASSEMBLY
(X-Long)SHIFT SHAFT ASSEMBLY
(X-Long) -
3753-29641 E RINGE RING
-
3823-43052A4 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
3925-457101 O-RING, (1.424 x .103)O-RING, (1.424 x .103)
-
4026-8164641 SEAL, OilSEAL, Oil
-
4110-82684425 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4226-816575A2 FACE SEALFACE SEAL
-
-26-43035A4 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-46-8M0113799 REPAIR KIT, Water PumpREPAIR KIT, Water Pump
-
-31-803496T1 BEARING AND SEAL KIT (Without Forward Bearing)
(Use With Pinion stamped 43-19672)BEARING AND SEAL KIT (Without Forward Bearing)
(Use With Pinion stamped 43-19672) -
-31-803496T2 BEARING/SEAL KIT (Without Forward Bearing)
(Use With Pinion stamped 43-881259)BEARING/SEAL KIT (Without Forward Bearing)
(Use With Pinion stamped 43-881259) -
-52-803489T1 REPAIR KIT, Clutch/CamREPAIR KIT, Clutch/Cam
-
-43-881260A5 GEAR ASSEMBLY, Forward (With Forward Bearing)GEAR ASSEMBLY, Forward (With Forward Bearing)
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
