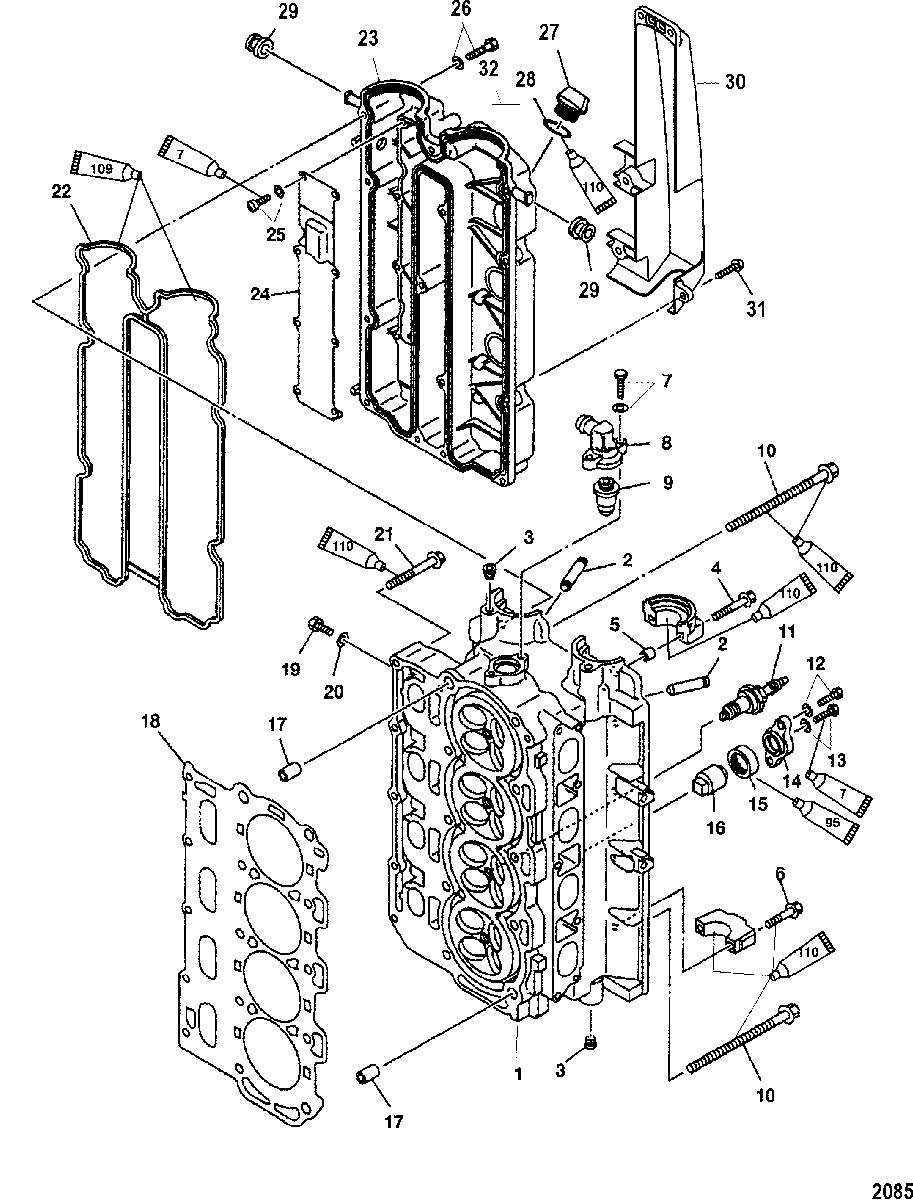

Cylinder Head для Mercury - 75 (4-STROKE) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
18M0057170 CYLINDER HEADCYLINDER HEAD
-
217-804110 PIN, GuidePIN, Guide
-
319-804111 PLUGPLUG
-
410-804112 BOLT, (M7 x 48)BOLT, (M7 x 48)
-
517-804113 PIN, DowelPIN, Dowel
-
610-804114 BOLT, (M7 x 37)BOLT, (M7 x 37)
-
710-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
88041271 THERMOSTAT COVERTHERMOSTAT COVER
-
98556761 THERMOSTAT, 60A°C (140A°F)THERMOSTAT, 60A°C (140A°F)
-
1010-881311 BOLT, (M10 x 145)BOLT, (M10 x 145)
-
1133-859495Q SPARK PLUG, (NGK-LFR5A-11)SPARK PLUG, (NGK-LFR5A-11)
-
1210-827207 BOLT, (M8 x 25)BOLT, (M8 x 25)
-
1310-8524741 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1497-804085A01 COVERCOVER
-
1525-804086 GROMMETGROMMET
-
16NSS NOT SOLD SEPARATE, Anode
Order CoverNOT SOLD SEPARATE, Anode
Order Cover -
1723-8M0070515 COLLARCOLLAR
-
1827-8041151 GASKETGASKET
-
1910-83124714 BOLTBOLT
-
2012-831246 WASHER, SealingWASHER, Sealing
-
2110-881312 BOLT, (M8 x 55)BOLT, (M8 x 55)
-
2227-804123 GASKETGASKET
-
23881313T1 COVER KITCOVER KIT
-
24804119 COVER, BreatherCOVER, Breather
-
2510-804120 SCREW, (M4 x 8)SCREW, (M4 x 8)
-
2610-858530 BOLT, (M6 x 30)BOLT, (M6 x 30)
-
27859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
28NSS NOT SOLD SEPARATE, O RingNOT SOLD SEPARATE, O Ring
-
2925-855690 GROMMETGROMMET
-
30858752001 COVER
SN# 1B147077 & BelowCOVER
SN# 1B147077 & Below -
30858752001 COVER
SN# 1B147078 & UpCOVER
SN# 1B147078 & Up -
3110-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
32NSS NOT SOLD SEPARATE, Decal
(BODENSEE)NOT SOLD SEPARATE, Decal
(BODENSEE) -
-804109T08 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
