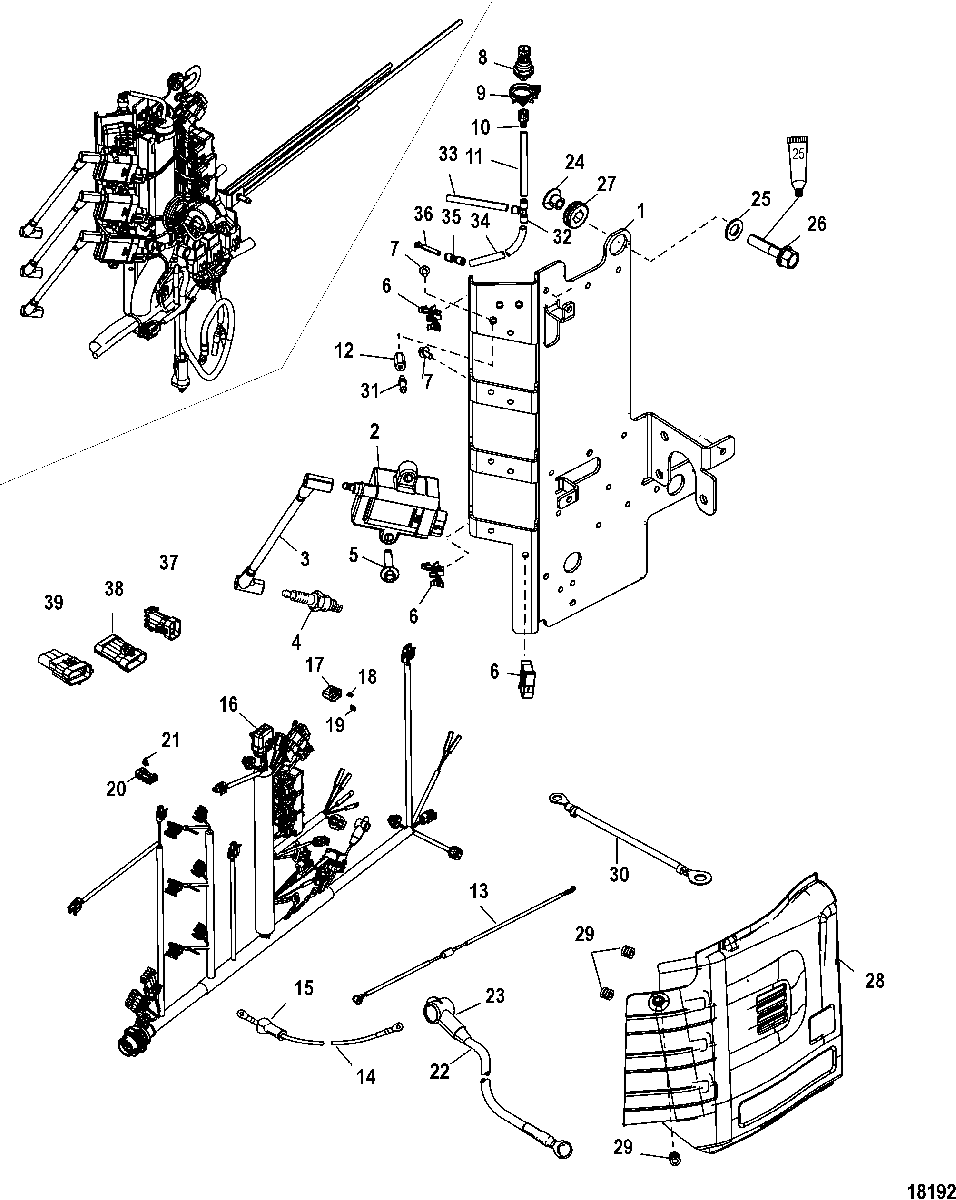

Electrical Components для Mercury - 75 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Electrical Plate Assembly-CompleteNOT SOLD SEPARATE, Electrical Plate Assembly-Complete
-
1880190T03 PLATE, ElectricalPLATE, Electrical
-
2300-8M0077471 COIL, IgnitionCOIL, Ignition
-
384-884442T03 LEAD, Hi TensionLEAD, Hi Tension
-
433-892567Q SPARK PLUG, NGK#IZFR5JSPARK PLUG, NGK#IZFR5J
-
510-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
6828791 CLIPCLIP
-
710-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
8881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
954-883066 CLIP, (.865)CLIP, (.865)
-
1022-892403 FITTINGFITTING
-
1132-85978571 TUBING, (52.00 Inches Bulk) (Cut to 6 Inches)TUBING, (52.00 Inches Bulk) (Cut to 6 Inches)
-
128215832 PIN, SpecialPIN, Special
-
1384-878231A03 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
1484-882829A03 HARNESS ASSEMBLY, StarterHARNESS ASSEMBLY, Starter
-
1585-830233 BOOT, Insulator - RedBOOT, Insulator - Red
-
1684-896264T01 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
17858754 COVER, FuseCOVER, Fuse
-
1888-832969T05 FUSE, Mini - Tan - 5 AmpereFUSE, Mini - Tan - 5 Ampere
-
1988-832969T20 FUSE, Mini - Yellow - 20 AmpereFUSE, Mini - Yellow - 20 Ampere
-
20877613A1 CONNECTOR ASSEMBLY, 8 PinCONNECTOR ASSEMBLY, 8 Pin
-
2154-879962 CLIPCLIP
-
2284-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
2385-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
2423-8502341 BUSHINGBUSHING
-
2512-4002318 WASHERWASHER
-
2610-82446035 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
2725-833155 GROMMETGROMMET
-
28880192T01 COVERCOVER
-
2925-821555001 GROMMETGROMMET
-
3084-856583A07 CABLE ASSEMBLY, (12.00 Inches) BlackCABLE ASSEMBLY, (12.00 Inches) Black
-
31889992 SPACERSPACER
-
3222-875207 TEE, FittingTEE, Fitting
-
3332-85978571 TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches)TUBING, (52.00 Inches Bulk) (Cut to 1.50 Inches)
-
3432-85978571 TUBING, (52.00 Inches Bulk) (Cut to 52 Inches)TUBING, (52.00 Inches Bulk) (Cut to 52 Inches)
-
3522-859747 COUPLERCOUPLER
-
3622-859732 PLUGPLUG
-
37877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
38830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
-
39822447T01 CAP ASSEMBLY, Connector - 3 Pin MaleCAP ASSEMBLY, Connector - 3 Pin Male
