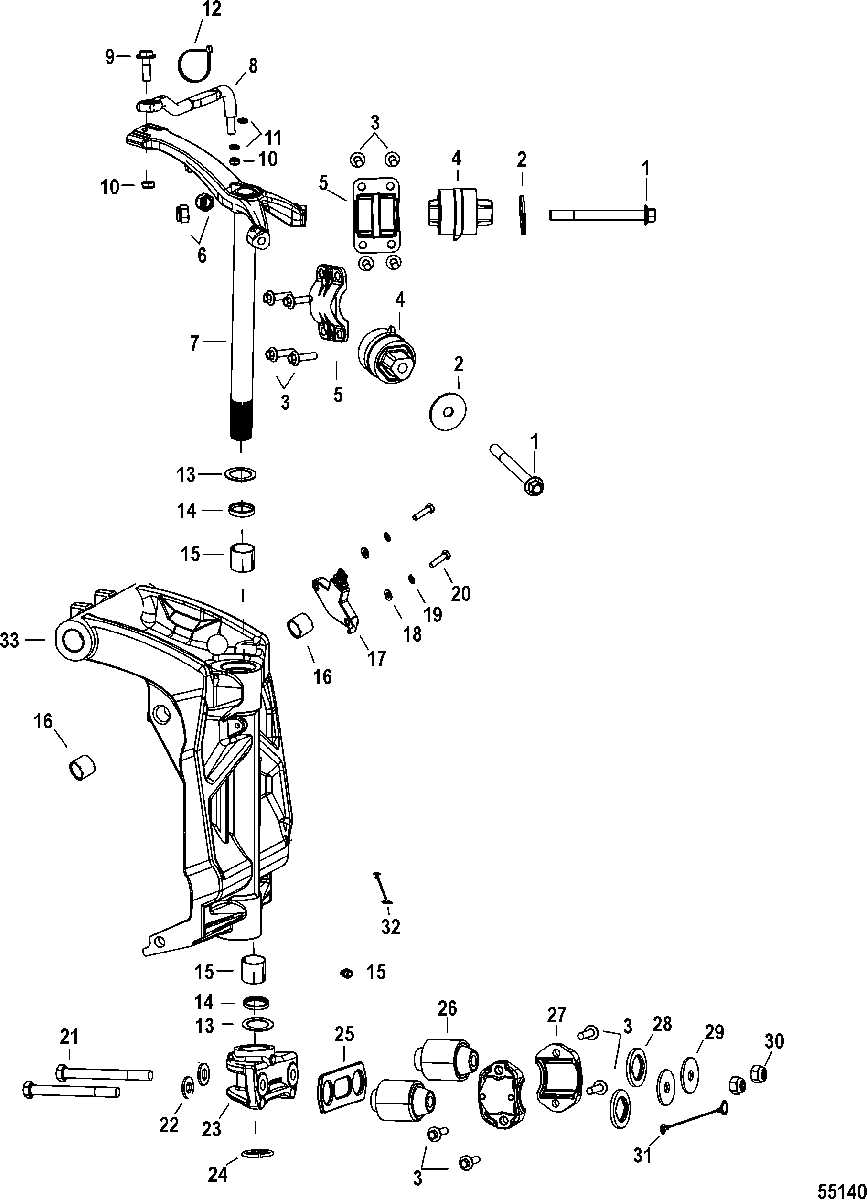

Swivel Bracket and Swivel Pin для Mercury - 75 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
110-8M0088194 SCREW , (M12 X 120 Flg HEX HD)SCREW , (M12 X 120 Flg HEX HD)
-
212-8M0056839 WASHER - UPPER MOUNT SNUBBERWASHER - UPPER MOUNT SNUBBER
-
310-4010730 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
48M0056774 UPPER MOUNT ASSEMBLYUPPER MOUNT ASSEMBLY
-
48M0096243 MOUNTS - UPPER
SeaProMOUNTS - UPPER
SeaPro -
58M0056564 COVER - UPPER MOUNTCOVER - UPPER MOUNT
-
611-8M0088290 NUT, (HEX M12 X 1.75)NUT, (HEX M12 X 1.75)
-
78M0091530 SWIVEL TUBE ASSEMBLYSWIVEL TUBE ASSEMBLY
-
892876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
910-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1011-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
1112-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1312-816432 THRUST WASHERTHRUST WASHER
-
1426-8M0034870 SEAL, Swivel TubeSEAL, Swivel Tube
-
1523-8M0141339 BUSHING, Swivel Tube PivotBUSHING, Swivel Tube Pivot
-
1623-821207 BUSHINGBUSHING
-
178M0094923 SENSOR ASSEMBLY - TRIMSENSOR ASSEMBLY - TRIM
-
1812-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
1913-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2010-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
2110-40003111 SCREW , (M12 x 120 HEX HD)SCREW , (M12 x 120 HEX HD)
-
2212-895062 WASHERWASHER
-
238M0091533 YOKE - BOTTOMYOKE - BOTTOM
-
2453-67684 RING, RetainingRING, Retaining
-
258M0084888 SNUBBERSNUBBER
-
268M0056573 LOWER MOUNT ASSEMBLYLOWER MOUNT ASSEMBLY
-
278M0056181 COVER - LOWER MOUNTCOVER - LOWER MOUNT
-
2812-8M0082052 WASHER - SNUBBERWASHER - SNUBBER
-
2912-8M0075817 WASHER , (.50 X 1.75 X .125)WASHER , (.50 X 1.75 X .125)
-
3011-897926 NUT, (M12), Nylon InsertNUT, (M12), Nylon Insert
-
3188238A20 CABLE ASSEMBLYCABLE ASSEMBLY
-
328M0079640 CABLE ASSEMBLYCABLE ASSEMBLY
-
331400-8M0107419 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
