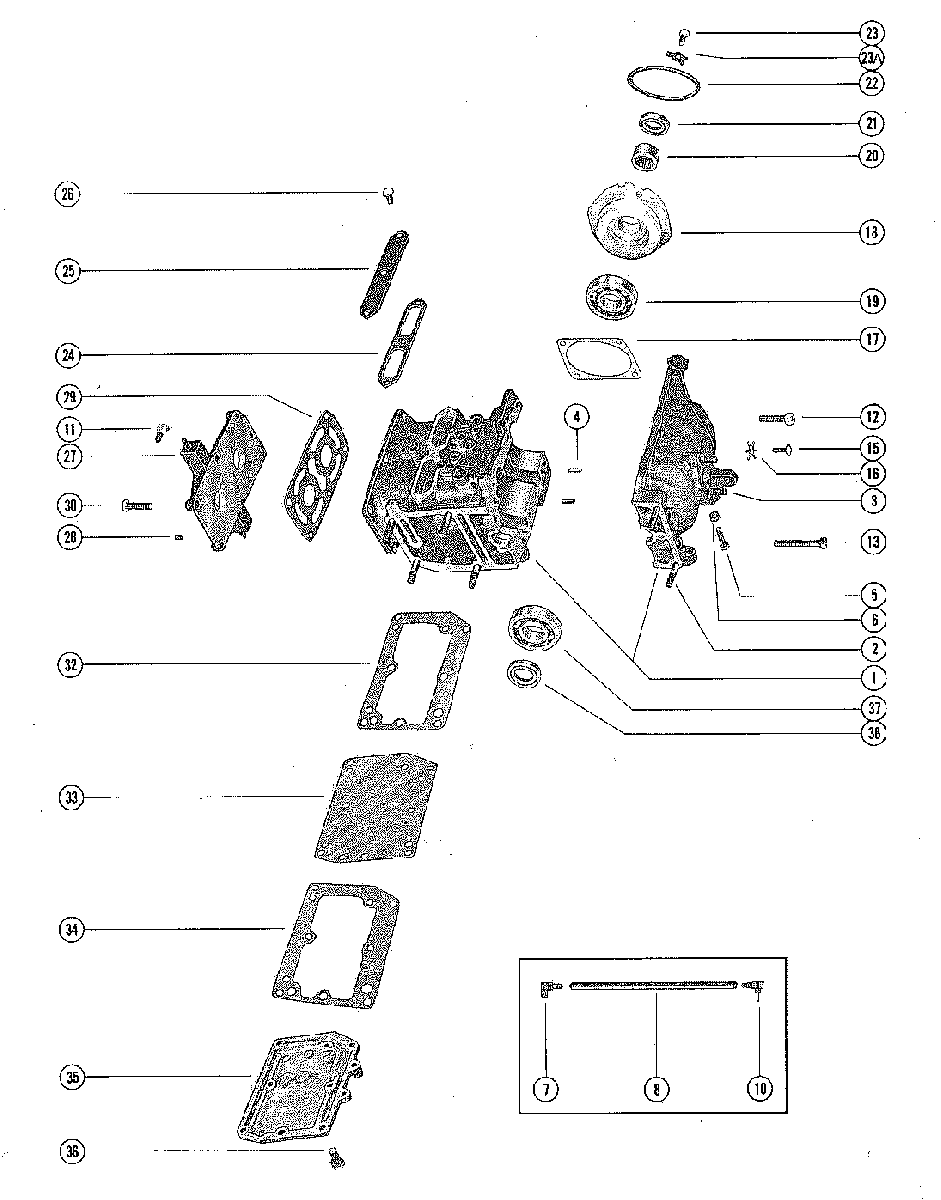

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 75 9181726 THRU 9219255
-
№АртикулНазвание
-
1837-6542A5 CYLINDER BLOCK AND CRANKCASE ASS'YCYLINDER BLOCK AND CRANKCASE ASS'Y
-
216-728091 STUD, BLOCK AND CRANKCASE
TO DRIVE SHAFT HOUSINGSTUD, BLOCK AND CRANKCASE
TO DRIVE SHAFT HOUSING -
310-657461 STUD, CARBURETOR MOUNTINGSTUD, CARBURETOR MOUNTING
-
417-8M0084726 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCKPIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
-
510-69560 SCREW, ADJ. - THROTTLE CONTROL (1 1/4")SCREW, ADJ. - THROTTLE CONTROL (1 1/4")
-
611-68219 NUT, THROTTLE CONTROL ADJUSTING SCREWNUT, THROTTLE CONTROL ADJUSTING SCREW
-
722-56759 FITTING, BLEED DRAIN - CYLINDER BLOCK (TOP)FITTING, BLEED DRAIN - CYLINDER BLOCK (TOP)
-
832-9938779 HOSE, BLEED DRAIN (10 1/2")HOSE, BLEED DRAIN (10 1/2")
-
1021-42863 CHECK VALVE, BLLED - CRANKCASE (BOTTOM)CHECK VALVE, BLLED - CRANKCASE (BOTTOM)
-
1122-996642 ELBOW, TEEL TALE - CYLINDER BLOCKELBOW, TEEL TALE - CYLINDER BLOCK
-
1210-76621 SCREW, CRANKCASE TO CYLINDER BLOCKSCREW, CRANKCASE TO CYLINDER BLOCK
-
1310-73280 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1510-98260 SCREW, MAIN BEARING LOCKING (5/8")SCREW, MAIN BEARING LOCKING (5/8")
-
1614-20091 TAB WASHER, MAIN BEARING LOCKING SCREWTAB WASHER, MAIN BEARING LOCKING SCREW
-
1715-31412A1 SHIM, UPPER HOUSING TO CYLINDER BLOCK
(.002-3-5-10)SHIM, UPPER HOUSING TO CYLINDER BLOCK
(.002-3-5-10) -
181164-6413A1 BEARING HOUSING ASSEMBLY, UPPERBEARING HOUSING ASSEMBLY, UPPER
-
1930-72961 BEARING, BALL - UPPER BEARING HOUSINGBEARING, BALL - UPPER BEARING HOUSING
-
2031-31410 BEARING, ROLLER - UPPER BEARING HOUSINGBEARING, ROLLER - UPPER BEARING HOUSING
-
2126-66301 OIL SEAL, UPPER BEARING HOUSINGOIL SEAL, UPPER BEARING HOUSING
-
2225-20863 "O" RING, UPPER BEARING HOUSING"O" RING, UPPER BEARING HOUSING
-
2310-76611 SCREW, UPPER BEARING HOUSING (1/2")SCREW, UPPER BEARING HOUSING (1/2")
-
23A14-78102 TAB WASHER, UPPER BEARING HOUSING SCREWTAB WASHER, UPPER BEARING HOUSING SCREW
-
2427-780321 GASKET, INTAKE COVERGASKET, INTAKE COVER
-
2578033 COVER, INTAKECOVER, INTAKE
-
2610-26537 SCREW, INTAKE COVER TO CYLINDER BLOCKSCREW, INTAKE COVER TO CYLINDER BLOCK
-
271019-7465A1 COVER ASSEMBLY, CYLINDER BLOCKCOVER ASSEMBLY, CYLINDER BLOCK
-
2822-390721 PLUG, CYLINDER BLOCK COVERPLUG, CYLINDER BLOCK COVER
-
2927-41382 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3010-76630 SCREW, CYL. BLOCK COVER TO CYLINDER BLOCK
(1")SCREW, CYL. BLOCK COVER TO CYLINDER BLOCK
(1") -
3227-78035 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
3378034 PLATE, BAFFLE - EXHAUST MANIFOLDPLATE, BAFFLE - EXHAUST MANIFOLD
-
3427-78035 GASKET, BAFFLE PLATEGASKET, BAFFLE PLATE
-
3574919T COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3610-28668 SCREW
BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4")SCREW
BAFFLE PLATE AND MANIFOLD COVER MOUNTING (3/4") -
3730-72961 BEARING, BALL - CRANKCASE (LOWER)BEARING, BALL - CRANKCASE (LOWER)
-
3826-66301 OIL SEAL, CRANKCASE (LOWER)OIL SEAL, CRANKCASE (LOWER)
