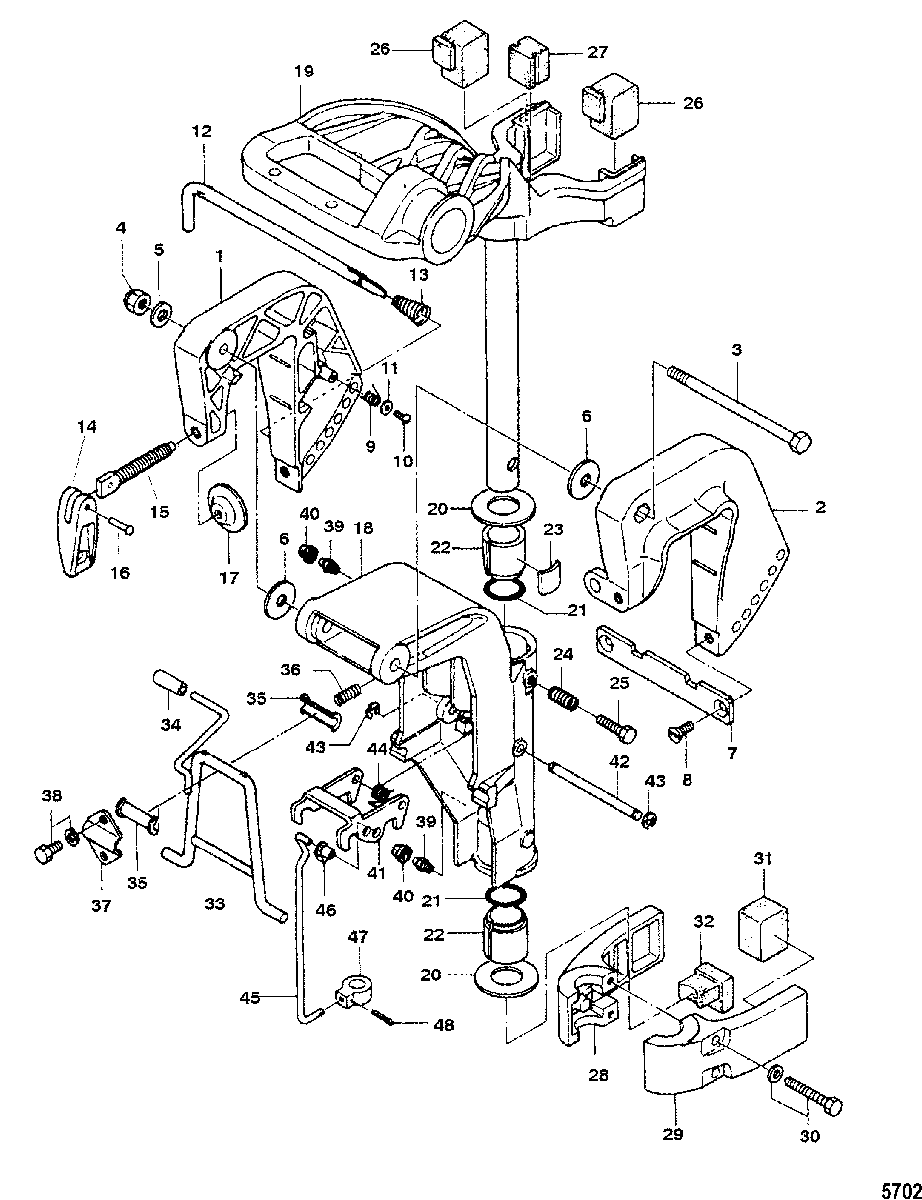

Clamp and Swivel Brackets для Mercury - 8 (2 CYL.)(2-STROKE)(International) 0N027903 THRU 0N055109
-
№АртикулНазвание
-
13406-9622T6 CLAMP BRACKET, StarboardCLAMP BRACKET, Starboard
-
23406-96231 CLAMP BRACKET, PortCLAMP BRACKET, Port
-
310-898101337 BOLTBOLT
-
411-815088 NUT, (M8)NUT, (M8)
-
512-16192 WASHERWASHER
-
612-95375 WASHERWASHER
-
7161931 DISTANCE PLATEDISTANCE PLATE
-
810-16194 SCREWSCREW
-
924-161951 SPRINGSPRING
-
1010-16196 SCREWSCREW
-
1112-16197 WASHERWASHER
-
1216198004 THRUST RODTHRUST ROD
-
1324-815093003 SPRINGSPRING
-
1410-8M0075060 CLAMP SCREW ASSEMBLYCLAMP SCREW ASSEMBLY
-
15NSS NOT SOLD SEPARATE, Clamp ScrewNOT SOLD SEPARATE, Clamp Screw
-
16NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1712-95379 PADPAD
-
183407-803772T01 SWIVEL BRACKETSWIVEL BRACKET
-
19803773T01 SHAFT, SteeringSHAFT, Steering
-
208037741 THRUST PLATETHRUST PLATE
-
2125-8126412 O-RINGO-RING
-
2223-163366 BUSHINGBUSHING
-
23162052 FRICTION PLATEFRICTION PLATE
-
2424-953831 SPRINGSPRING
-
2510-4000354 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
268037753 RUBBER, MountRUBBER, Mount
-
278037781 RUBBER, DamperRUBBER, Damper
-
28803776T08 BRACKET, Mount (Starboard)BRACKET, Mount (Starboard)
-
29803776T09 BRACKET, Mount (Port)BRACKET, Mount (Port)
-
3010-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
318037754 RUBBER, MountRUBBER, Mount
-
328037755 RUBBER, MountRUBBER, Mount
-
33815094A04 STOPPER ASSEMBLY, TiltSTOPPER ASSEMBLY, Tilt
-
34NSS NOT SOLD SEPARATE, GripNOT SOLD SEPARATE, Grip
-
35825113 BUSHINGBUSHING
-
3624-813028 SPRINGSPRING
-
3716210002 SET PLATESET PLATE
-
3810-162111 BOLTBOLT
-
3922-824969 FITTING, GreaseFITTING, Grease
-
40808599 CAPCAP
-
418040451 LOCK, ReverseLOCK, Reverse
-
428040461 SHAFT, Reverse LockSHAFT, Reverse Lock
-
4353-953181 E RINGE RING
-
4424-804905 SPRINGSPRING
-
458037871 LINK, Reverse LockLINK, Reverse Lock
-
46853748 SNAP, Link RodSNAP, Link Rod
-
47804906 JOINTJOINT
-
4818-8150267 COTTER PINCOTTER PIN
