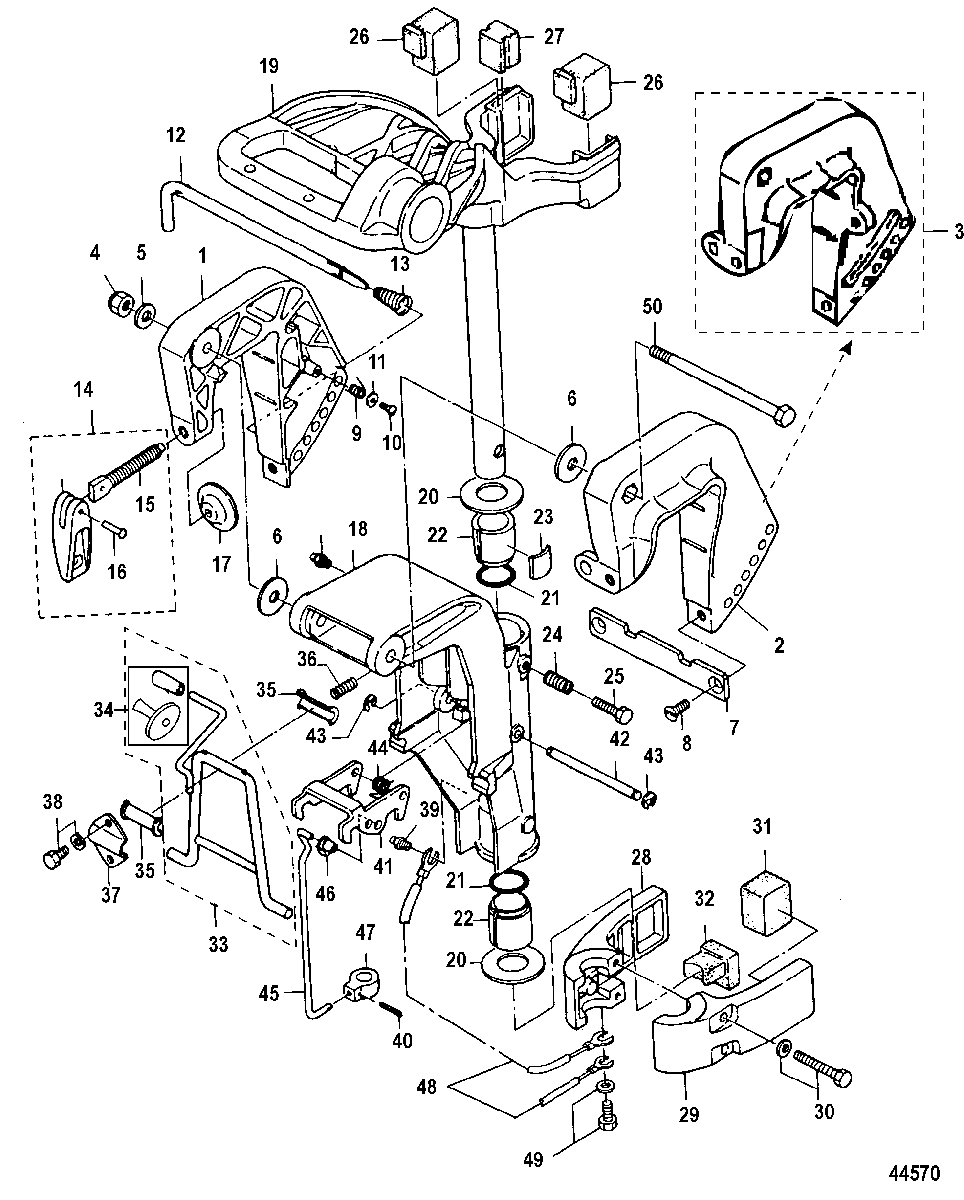

Clamp and Swivel Brackets для Mercury - 8 (2 Cyl.)(International) 0N055110 & Up
-
№АртикулНазвание
-
13406-9622T6 CLAMP BRACKET, Starboard
SN# 0N096909 & BelowCLAMP BRACKET, Starboard
SN# 0N096909 & Below -
13406-8M0048131 CLAMP BRACKET, Starboard
SN# 0N096910 & UpCLAMP BRACKET, Starboard
SN# 0N096910 & Up -
23406-96231 CLAMP BRACKET, Port
SN# 0N096909 & BelowCLAMP BRACKET, Port
SN# 0N096909 & Below -
33406-8M0048133 CLAMP BRACKET, Port
SN# 0N096910 & UpCLAMP BRACKET, Port
SN# 0N096910 & Up -
411-95374 NUT, NylonNUT, Nylon
-
512-16192 WASHERWASHER
-
612-95375 WASHERWASHER
-
7161931 DISTANCE PLATEDISTANCE PLATE
-
810-16194 SCREWSCREW
-
924-161951 SPRINGSPRING
-
1010-16196 SCREWSCREW
-
1112-16197 WASHERWASHER
-
1216198004 THRUST RODTHRUST ROD
-
1324-815093003 SPRINGSPRING
-
1410-8M0075060 CLAMP SCREW ASSEMBLY, M10
SN# 0N096909 & BelowCLAMP SCREW ASSEMBLY, M10
SN# 0N096909 & Below -
1410-8M0060116 THUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
SN# 0N096910 & UpTHUMB SCREW ASSEMBLY, 1/2 Inch Thread Size
SN# 0N096910 & Up -
15NSS NOT SOLD SEPARATE, Clamp ScrewNOT SOLD SEPARATE, Clamp Screw
-
16NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1712-95379 PADPAD
-
183407-803772T01 SWIVEL BRACKETSWIVEL BRACKET
-
19803773T01 SHAFT, SteeringSHAFT, Steering
-
208037741 THRUST PLATETHRUST PLATE
-
2125-8126412 O-RINGO-RING
-
2223-163366 BUSHINGBUSHING
-
23162052 FRICTION PLATEFRICTION PLATE
-
2424-953838 SPRINGSPRING
-
2510-879194254 BOLTBOLT
-
268037753 RUBBER, MountRUBBER, Mount
-
278037781 RUBBER, DamperRUBBER, Damper
-
28803776T08 BRACKET, Mount (Starboard)BRACKET, Mount (Starboard)
-
29803776T09 BRACKET, Mount (Port)BRACKET, Mount (Port)
-
3010-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
318037754 RUBBER, MountRUBBER, Mount
-
328037755 RUBBER, MountRUBBER, Mount
-
33815094A04 STOPPER ASSEMBLY, TiltSTOPPER ASSEMBLY, Tilt
-
34NSS NOT SOLD SEPARATE, GripNOT SOLD SEPARATE, Grip
-
35825113 BUSHINGBUSHING
-
3624-813028 SPRINGSPRING
-
3716210002 SET PLATESET PLATE
-
3810-8230427 BOLTBOLT
-
3922-824969 FITTING, GreaseFITTING, Grease
-
4018-8150267 COTTER PINCOTTER PIN
-
41804045003 LOCK, ReverseLOCK, Reverse
-
42804046002 SHAFT, Reverse LockSHAFT, Reverse Lock
-
4353-953181 E RINGE RING
-
4424-804905 SPRINGSPRING
-
458037871 LINK, Reverse LockLINK, Reverse Lock
-
46853748 SNAP, Link RodSNAP, Link Rod
-
47804906 JOINTJOINT
-
4884-898101091 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
4910-8230427 BOLTBOLT
-
5010-898101337 BOLTBOLT
