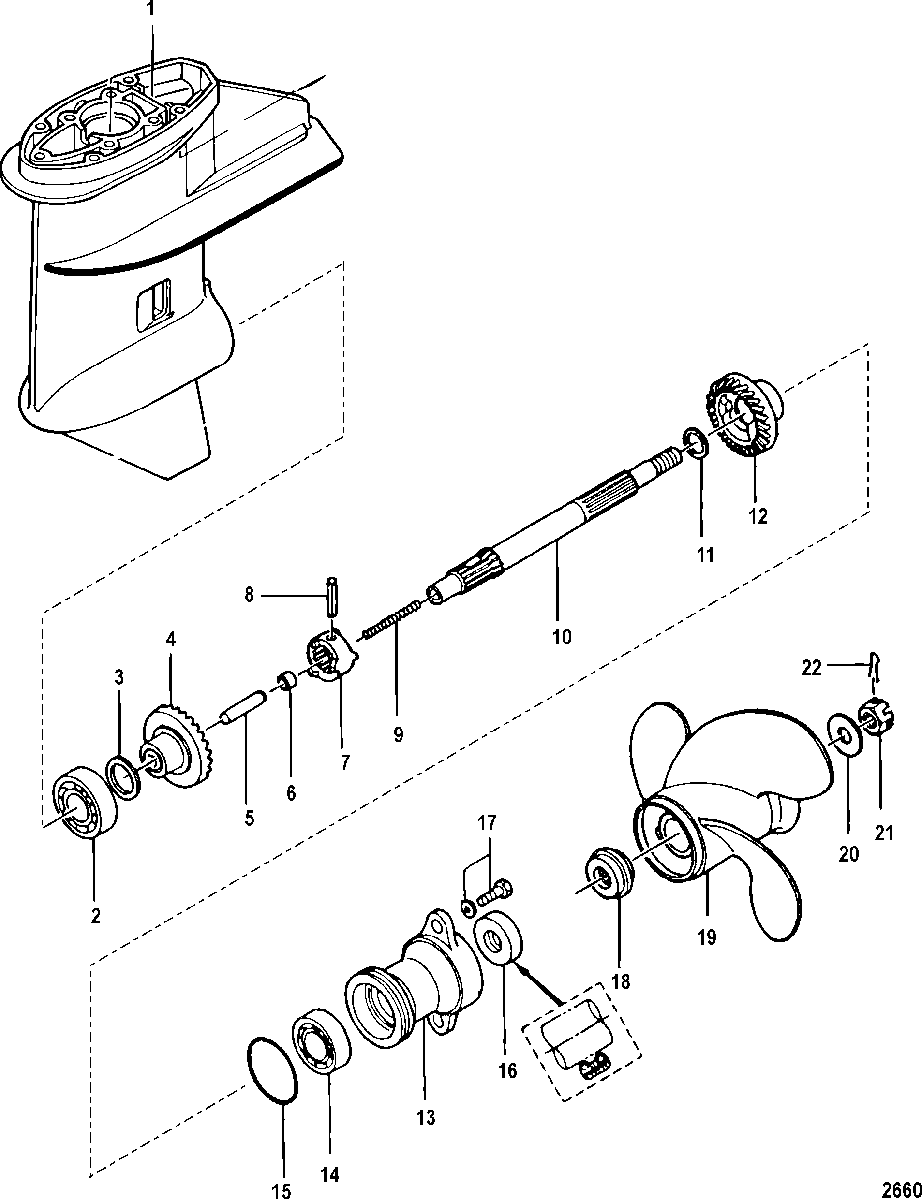

Gear Housing, Propeller Shaft-Non Bigfoot для Mercury - 8 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
-8M0135929 GEAR HOUSING ASSEMBLY, Complete
ShortGEAR HOUSING ASSEMBLY, Complete
Short -
-8M0135931 GEAR HOUSING ASSEMBLY, Complete
LongGEAR HOUSING ASSEMBLY, Complete
Long -
11668-895154T01 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
230-8037331 BEARING, BallBEARING, Ball
-
315-16141 SHIM, (0.1)SHIM, (0.1)
-
315-813277 SHIM, (0.15)SHIM, (0.15)
-
443-8037391 GEAR, ForwardGEAR, Forward
-
516152 FOLLOWER, CamFOLLOWER, Cam
-
68537642 RETAINER, SpringRETAINER, Spring
-
752-8037451 CLUTCHCLUTCH
-
817-16150 PIN, ClutchPIN, Clutch
-
924-892777002 SPRING, (58 mm)SPRING, (58 mm)
-
1044-8M0070782 PROPELLER SHAFTPROPELLER SHAFT
-
1112-16140 WASHERWASHER
-
1243-8037411 GEAR, ReverseGEAR, Reverse
-
138M0070876 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
1430-16128 BEARING, BallBEARING, Ball
-
1525-16131 O-RINGO-RING
-
1626-16130 SEAL, OilSEAL, Oil
-
1710-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
188M0131240 THRUST HOLDERTHRUST HOLDER
-
1948-897610A10 PROPELLER, (8.5 x 6.5)PROPELLER, (8.5 x 6.5)
-
1948-897614A10 PROPELLER, (8.9 x 7)PROPELLER, (8.9 x 7)
-
1948-897614A10 PROPELLER, (8.5 x 7.5)
8 HorsepowerPROPELLER, (8.5 x 7.5)
8 Horsepower -
1948-897618A10 PROPELLER, (8.9 x 8.3)
9.9 HorsepowerPROPELLER, (8.9 x 8.3)
9.9 Horsepower -
1948-897620A10 PROPELLER, (8.9 x 10)PROPELLER, (8.9 x 10)
-
2012-16146 WASHERWASHER
-
2111-16147 PROP NUTPROP NUT
-
2218-815026 COTTER PINCOTTER PIN
-
-27-8M0082883 GASKET SET, Lower UnitGASKET SET, Lower Unit
