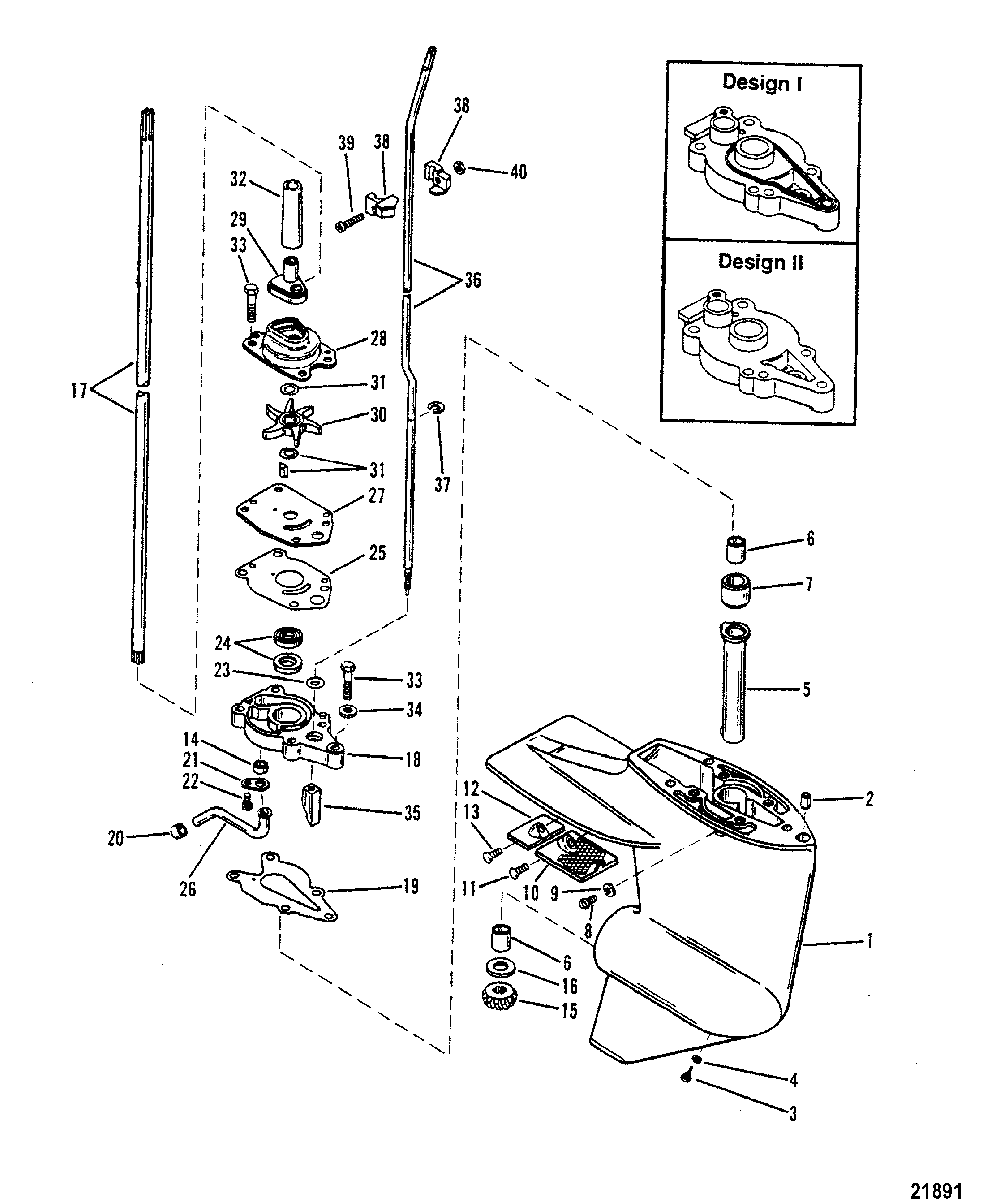

Gear Hsg(Driveshaft-Design I-Refer to Reference #17) для Mercury - 8 9461526 THRU 9792199

№

Артикул

Название
-

1666-8833T13 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)

GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (BLACK)

141 160 ₽
-

1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)

GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (BLACK)

125 080 ₽
-

1666-8833T14 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)

GEAR HOUSING ASSEMBLY, COMPLETE (SHORT) (GRAY)

201 200 ₽
-

1666-8833T15 GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)

GEAR HOUSING ASSEMBLY, COMPLETE (LONG) (GRAY)

125 080 ₽
1

1666-8833A1 GEAR HOUSING ASSEMBLY (BLACK)

GEAR HOUSING ASSEMBLY (BLACK)

43 290 ₽
1

1666-8833A4 GEAR HOUSING ASSEMBLY (GRAY)

GEAR HOUSING ASSEMBLY (GRAY)

52 740 ₽
2

23-12009 BUSHING, (.31 x .45 x .50)

BUSHING, (.31 x .45 x .50)

170 ₽
3

22-8M0058389 SCREW, Magnetic

SCREW, Magnetic

1 720 ₽
4

12-191833 WASHER, Fiber

WASHER, Fiber

60 ₽
5

42086A1 SLEEVE KIT

SLEEVE KIT

0 ₽
6

23-41345 SLEEVE

SLEEVE

810 ₽
7

23-42191001 SLEEVE

SLEEVE

580 ₽
8

10-28653 SCREW, (#10-32 x 0.25)

SCREW, (#10-32 x 0.25)

150 ₽
8

10-79953Q04 SCREW, (.375-16 x .250)

SCREW, (.375-16 x .250)

1 000 ₽
9

19643 SEAL (USE WITH 10-32 SCREW)

SEAL (USE WITH 10-32 SCREW)

70 ₽
9

12-191833 WASHER, Fiber (USE WITH .375-16 X .250 SCREW)

WASHER, Fiber (USE WITH .375-16 X .250 SCREW)

60 ₽
10

35-421991 SCREEN

SCREEN

640 ₽
11

10-13954 SCREW, (.250-14 x .88)

SCREW, (.250-14 x .88)

290 ₽
12

97-42121Q02 ANODE ASSEMBLY

ANODE ASSEMBLY

1 330 ₽
13

10-13954 SCREW, (.250-14 x .88)

SCREW, (.250-14 x .88)

290 ₽
14

26-42133 SEAL

SEAL

190 ₽
15

43-420411 GEAR, Pinion

GEAR, Pinion

13 220 ₽
16

12-41369 WASHER, THRUST

WASHER, THRUST

570 ₽
17

45-42192 DRIVESHAFT (SHORT)

DRIVESHAFT (SHORT)

24 100 ₽
17

45-42193 DRIVESHAFT (LONG)

DRIVESHAFT (LONG)

23 090 ₽
17

45-12367 DRIVESHAFT (X-LONG)

DRIVESHAFT (X-LONG)

16 990 ₽
18

46-42040T5 BASE ASSEMBLY, Water Pump

BASE ASSEMBLY, Water Pump

4 500 ₽
19

NLA No Longer Available, GASKET (SEE DESIGN I DRAWING)
(DESIGN I WATER PUMP BASE WITH A RAISED RIB - REPLACEMENT GASKET IS NLA. ORDER COMPLETE WATER PUMP BASE ASSY 46-42040A3)

No Longer Available, GASKET (SEE DESIGN I DRAWING)
(DESIGN I WATER PUMP BASE WITH A RAISED RIB - REPLACEMENT GASKET IS NLA. ORDER COMPLETE WATER PUMP BASE ASSY 46-42040A3)

0 ₽
19

46-42040T5 GASKET (SEE DESIGN II DRAWING)
(DESIGN II WATER PUMP BASE WITH A FLAT SURFACE - REPLACEMENT GASKET IS 27-19204--2)

GASKET (SEE DESIGN II DRAWING)
(DESIGN II WATER PUMP BASE WITH A FLAT SURFACE - REPLACEMENT GASKET IS 27-19204--2)

4 500 ₽
20

26-33613 SEAL

SEAL

690 ₽
21

42375 RETAINER

RETAINER

150 ₽
22

10-48408 SCREW, (#10-16 x .500)

SCREW, (#10-16 x .500)

200 ₽
23

25-822236 QUAD RING

QUAD RING

330 ₽
24

26-413651 SEAL, Oil

SEAL, Oil

870 ₽
25

27-19202001 GASKET, Water Pump Plate

GASKET, Water Pump Plate

680 ₽
26

32-42185A1 TUBE ASSEMBLY, Water

TUBE ASSEMBLY, Water

1 330 ₽
27

42200 FACE PLATE

FACE PLATE

1 180 ₽
28

46-42089A2 COVER ASSEMBLY

COVER ASSEMBLY

5 520 ₽
29

26-421021 SEAL

SEAL

500 ₽
30

47-42038Q02 IMPELLER

IMPELLER

2 820 ₽
31

28-42376A2 KEY ASSEMBLY

KEY ASSEMBLY

250 ₽
32

44467 GUIDE

GUIDE

0 ₽
33

10-4000331 SCREW, (M6 x 30), WATER PUMP

SCREW, (M6 x 30), WATER PUMP

230 ₽
34

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel

WASHER, (.281 x .500 x .060) Stainless Steel

120 ₽
35

42039 CAM, SHIFT

CAM, SHIFT

2 330 ₽
36

8M0026064 SHIFT SHAFT (SHORT)

SHIFT SHAFT (SHORT)

6 760 ₽
36

8M0026065 SHIFT SHAFT (LONG)

SHIFT SHAFT (LONG)

8 720 ₽
36

12368 SHIFT SHAFT (X-LONG)

SHIFT SHAFT (X-LONG)

0 ₽
37

53-42389 E RING

E RING

100 ₽
38

8M0036770 GUIDE

GUIDE

4 740 ₽
39

10-40011109 SCREW, (M5 x 25)

SCREW, (M5 x 25)

150 ₽
40

11-401385 NUT, (M5), GUIDE SCREW

NUT, (M5), GUIDE SCREW

330 ₽
-

26-41365A3 SEAL KIT

SEAL KIT

6 820 ₽
-

46-42089A5 PUMP KIT, Water

PUMP KIT, Water

5 380 ₽
-

27-42364A92 GASKET SET, Engine

GASKET SET, Engine

6 510 ₽
