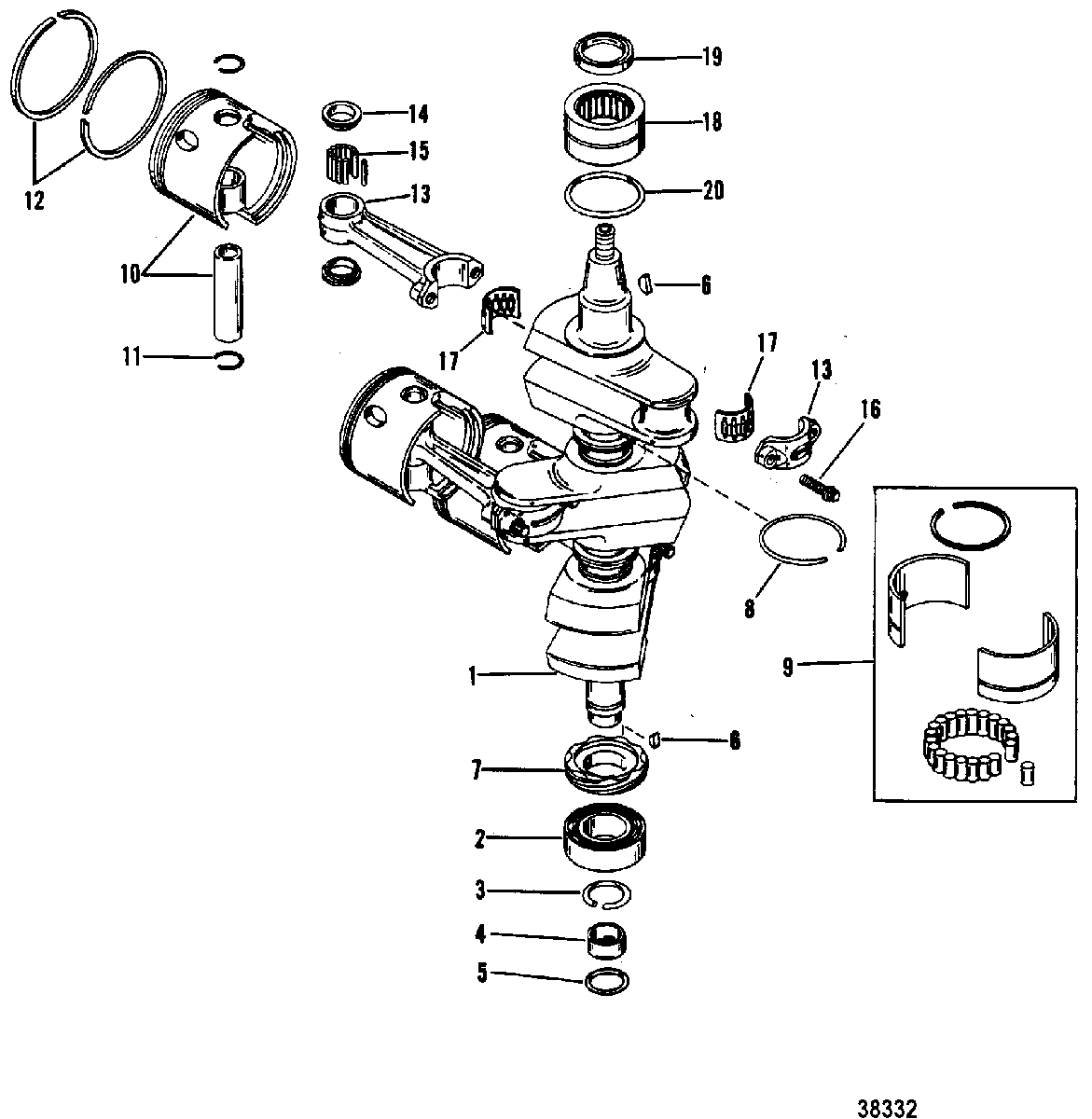

CRANKSHAFT, PISTONS AND CONNECTING RODS(#638-8532--1) для Mercury - 80 (3 CYL.) 9483121 THRU 9506480

№

Артикул

Название
1

472-9001T3 CRANKSHAFT ASSEMBLY

CRANKSHAFT ASSEMBLY

232 890 ₽
2

30-43011T BEARING, Ball, CRANKSHAFT (LOWER)

BEARING, Ball, CRANKSHAFT (LOWER)

5 400 ₽
3

53-93412 RING, Retaining, BALL BEARING

RING, Retaining, BALL BEARING

640 ₽
4

54196A6 CARRIER ASSEMBLY, SEAL

CARRIER ASSEMBLY, SEAL

1 530 ₽
5

65800 PACKING, CARRIER

PACKING, CARRIER

300 ₽
6

28-91800 KEY, Woodruff, DRIVE

KEY, Woodruff, DRIVE

340 ₽
7

43-43019A1 GEAR ASSEMBLY

GEAR ASSEMBLY

5 630 ₽
8

39-42079A4 RING ASSEMBLY, SEALING

RING ASSEMBLY, SEALING

4 310 ₽
9

42943A1 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

9 140 ₽
10

777-9009T13 PISTON ASSEMBLY
(STANDARD)

PISTON ASSEMBLY
(STANDARD)

18 570 ₽
10

777-9009A6 PISTON ASSEMBLY
(.015 O.S.)

PISTON ASSEMBLY
(.015 O.S.)

17 770 ₽
10

777-9009A7 PISTON ASSEMBLY
(.030 O.S.)

PISTON ASSEMBLY
(.030 O.S.)

19 150 ₽
11

53-857196 RING, Lock

RING, Lock

100 ₽
12

39-96170A12 RING SET, Piston
(STANDARD)

RING SET, Piston
(STANDARD)

23 530 ₽
12

39-96170A3 RING SET, Piston
(.015 O.S.)

RING SET, Piston
(.015 O.S.)

8 720 ₽
12

39-96170A4 RING SET, Piston
(.030 O.S.)

RING SET, Piston
(.030 O.S.)

15 500 ₽
13

638-9002A6 CONNECTING ROD ASSEMBLY

CONNECTING ROD ASSEMBLY

35 520 ₽
14

12-8M0032839 WASHER

WASHER

960 ₽
15

29-88258001 NEEDLE, Roller Bearing

NEEDLE, Roller Bearing

70 ₽
16

10-94320 SCREW

SCREW

650 ₽
17

31-844338A01 BEARING/CAGE KIT

BEARING/CAGE KIT

9 160 ₽
18

31-43013T3 BEARING ASSEMBLY, Roller

BEARING ASSEMBLY, Roller

8 680 ₽
19

26-43993 SEAL, Oil

SEAL, Oil

920 ₽
20

25-823683 O-RING

O-RING

220 ₽
-

27-43004A99 GASKET SET

GASKET SET

11 220 ₽
13589T93 POWERHEAD ASSEMBLY
(70/75)

POWERHEAD ASSEMBLY
(70/75)

594 060 ₽
13600T93 POWERHEAD ASSEMBLY
(80)

POWERHEAD ASSEMBLY
(80)

0 ₽
15081T96 POWERHEAD ASSEMBLY
(90)

POWERHEAD ASSEMBLY
(90)

745 220 ₽
