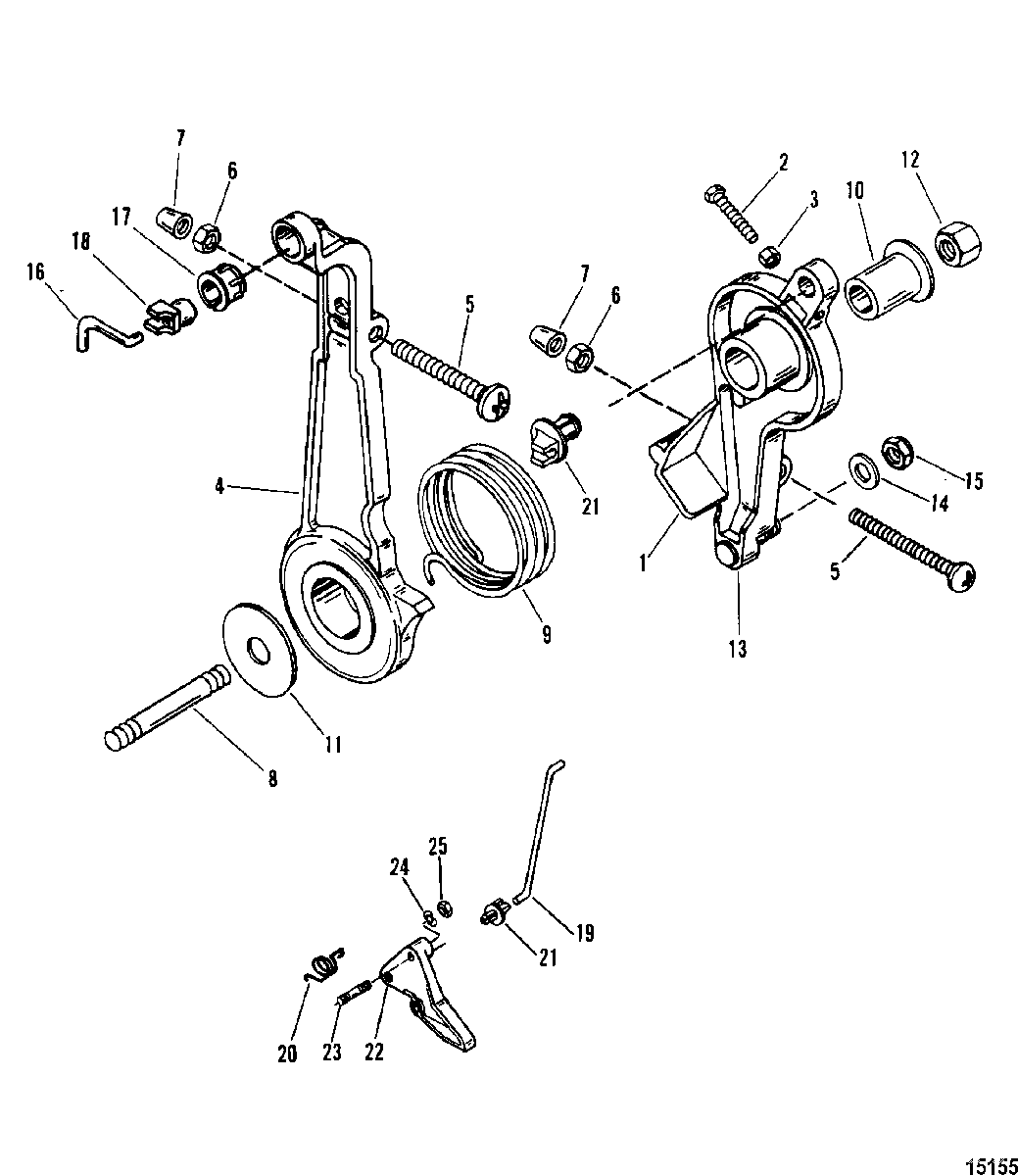

Throttle Lever And Linkage для Mercury - 80 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
142946T1 LEVER, ThrottleLEVER, Throttle
-
210-817582 SCREW, AdjustingSCREW, Adjusting
-
311-400211 NUT, (M5), Jam, Adjusting ScrewNUT, (M5), Jam, Adjusting Screw
-
4429471 LEVER, Spark AdvanceLEVER, Spark Advance
-
510-814776 SCREW, AdjustingSCREW, Adjusting
-
611-400212 NUT, Jam, Adjusting ScrewNUT, Jam, Adjusting Screw
-
742942 CAP, Nylon, AdjustingCAP, Nylon, Adjusting
-
816-42986 STUD, LeversSTUD, Levers
-
924-55162 SPRING, Throttle/Spark Advance LeverSPRING, Throttle/Spark Advance Lever
-
1023-812930A1 BUSHING, Lever StudBUSHING, Lever Stud
-
1112-42980 WASHER, Lever StudWASHER, Lever Stud
-
1211-90517 NUT, (M10), Lever StudNUT, (M10), Lever Stud
-
1342927 INSERT, Throttle LeverINSERT, Throttle Lever
-
1412-35459 WASHER, Throttle Lever PinWASHER, Throttle Lever Pin
-
1511-401386 NUT, (M6), Throttle Lever PinNUT, (M6), Throttle Lever Pin
-
16878172 ROD, Spark AdvanceROD, Spark Advance
-
1793254 SWIVEL BASESWIVEL BASE
-
1893421 SWIVEL BALLSWIVEL BALL
-
19878420T ROD, ThrottleROD, Throttle
-
2024-14159 SPRING, Cam ReturnSPRING, Cam Return
-
2123-932481 BUSHING, SwivelBUSHING, Swivel
-
2242948A7 CAM, ThrottleCAM, Throttle
-
2316-8161949 STUD, Throttle CamSTUD, Throttle Cam
-
2412-69056 WASHER, (.255 x .620 x .030) Stainless Steel, Throttle Cam StudWASHER, (.255 x .620 x .030) Stainless Steel, Throttle Cam Stud
-
2511-401386 NUT, (M6), Throttle Cam StudNUT, (M6), Throttle Cam Stud
