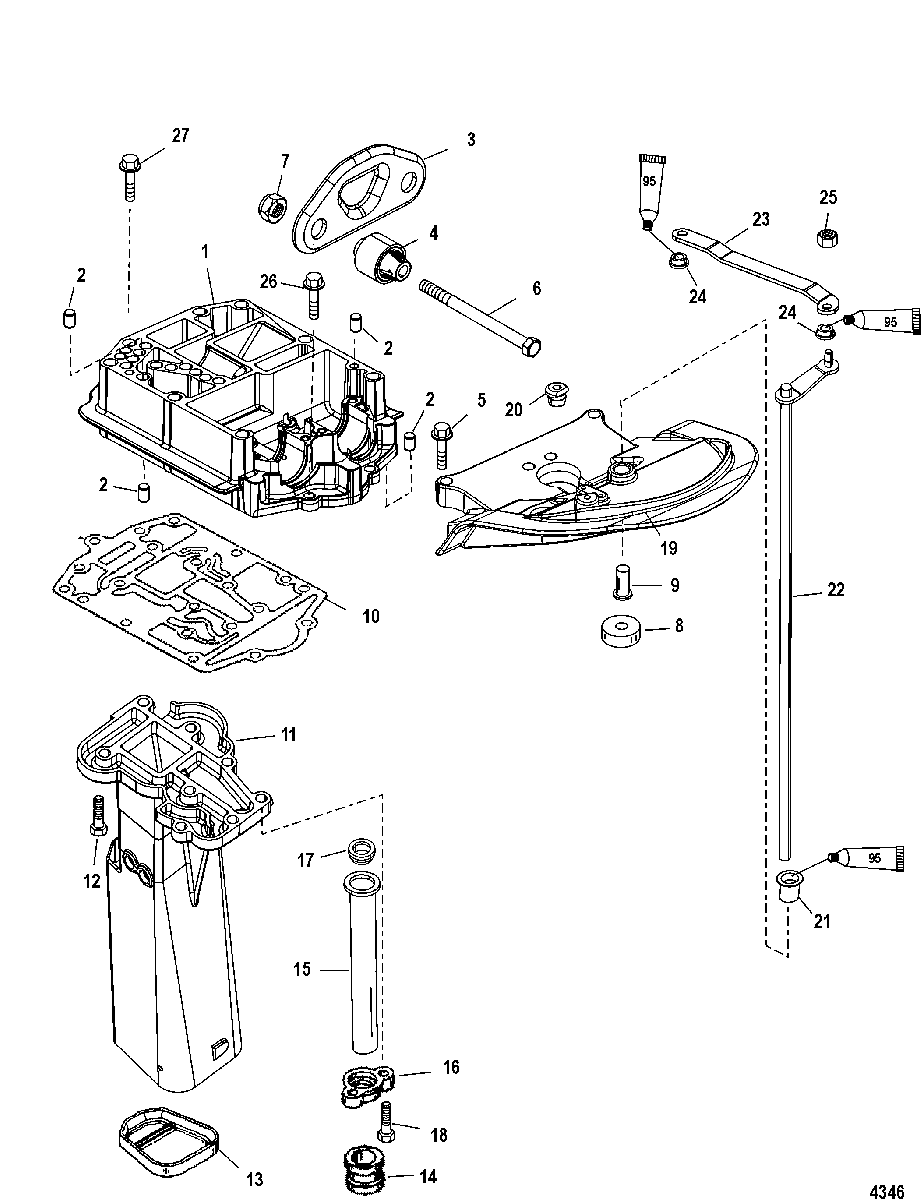

Exhaust Plate для Mercury - 80 JET 0T980000 THRU 0T999999
-
№АртикулНазвание
-
1881912T01 PLATE, ExhaustPLATE, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
3881973 RETAINERRETAINER
-
4881915002 MOUNTMOUNT
-
510-881975 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
711-896963 NUT, (M12)NUT, (M12)
-
823-813745 SPACER (Long)
Model Length Designation Long=20 In.SPACER (Long)
Model Length Designation Long=20 In. -
823-11289 SPACER (X-Long)
Model Length Designation X Long=25 In.SPACER (X-Long)
Model Length Designation X Long=25 In. -
943585 COUPLINGCOUPLING
-
1027-430086 GASKETGASKET
-
1142966T07 TUBE, ExhaustTUBE, Exhaust
-
1210-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
138M0039075 SEALSEAL
-
1425-89417004 GROMMETGROMMET
-
1532-8M0042791 TUBE, Water - Long (13.21 Inches)TUBE, Water - Long (13.21 Inches)
-
1532-8M0042792 TUBE, Water - X Long (18.21 Inches)TUBE, Water - X Long (18.21 Inches)
-
16824661 CLAMPCLAMP
-
17814080001 SEAL (Upper)SEAL (Upper)
-
1810-889833045 SCREW, (M8 x 45)SCREW, (M8 x 45)
-
19881918T03 CLAMPCLAMP
-
2025-19565002 GROMMETGROMMET
-
2123-48237 BUSHINGBUSHING
-
2279932A20 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
2342912A3 SHIFT LINKSHIFT LINK
-
2423-48475 BUSHINGBUSHING
-
2511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2610-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
2710-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
