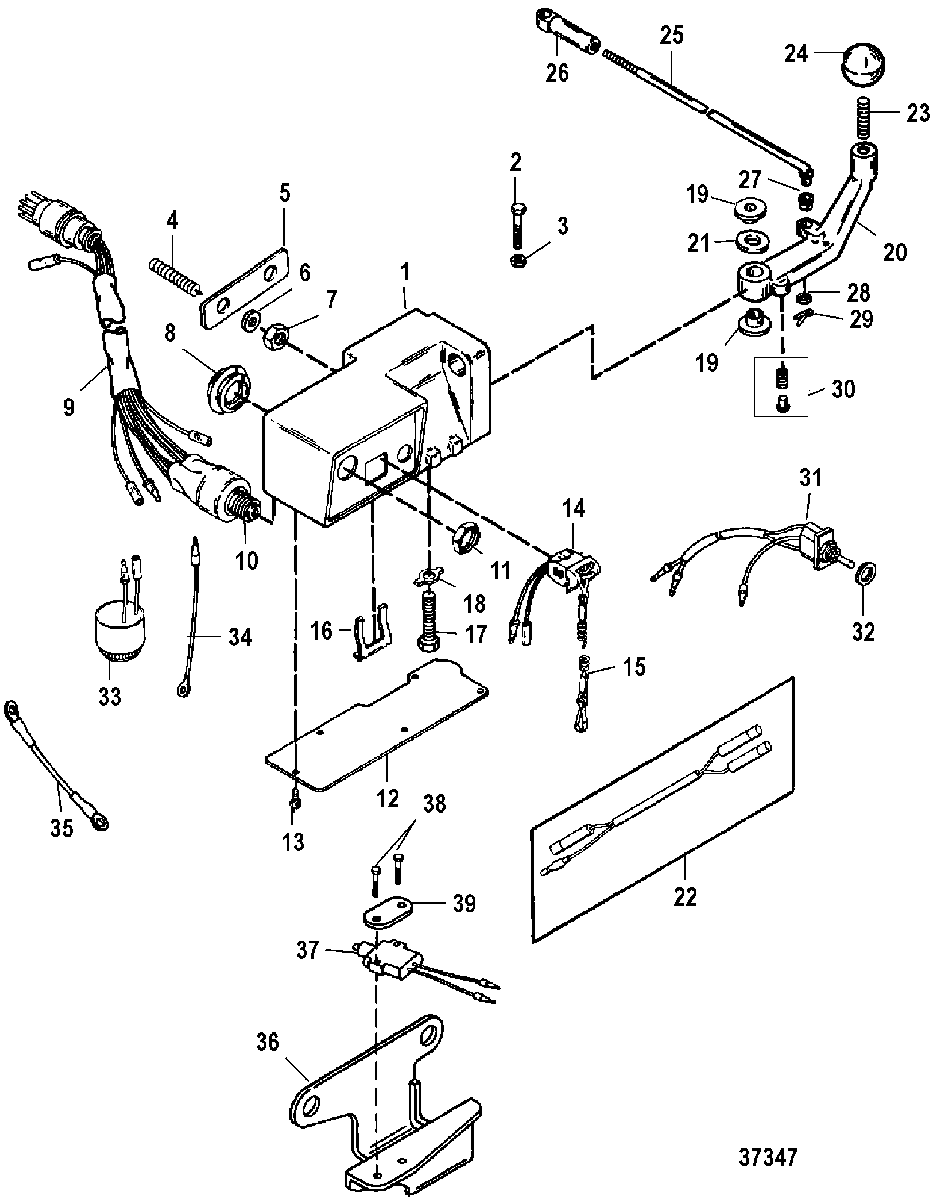

STEERING HANDLE COMPONENTS для Mercury - 80 JET 9793577 THRU 0P016999
-
№АртикулНазвание
-
112022A22 BRACKET ASSEMBLY
(BLACK)BRACKET ASSEMBLY
(BLACK) -
112022A22 BRACKET ASSEMBLY
(GRAY)BRACKET ASSEMBLY
(GRAY) -
210-849838 SCREW, (.375-24 x 1.25)SCREW, (.375-24 x 1.25)
-
311-8M0042636 NUT, (.375-24)NUT, (.375-24)
-
416-8M0034421 STUD, (.3125 x 2.50)STUD, (.3125 x 2.50)
-
5822263 SPACERSPACER
-
612-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
711-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
8121051 GROMMETGROMMET
-
984-12649A5 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
1087-88107A5 SWITCH KIT, Key (SEE KEY CHART)SWITCH KIT, Key (SEE KEY CHART)
-
1111-879755 NUT, Special - Chrome BrassNUT, Special - Chrome Brass
-
12120151 COVERCOVER
-
1310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1487-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
158M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
168M0032846 RETAINER, BrassRETAINER, Brass
-
1710-4000358 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1814-42981 TAB WASHERTAB WASHER
-
1923-889732 BUSHINGBUSHING
-
2012021A1 LEVER ASSEMBLY, Shift
(BLACK)LEVER ASSEMBLY, Shift
(BLACK) -
2012021A2 LEVER ASSEMBLY, Shift
(GRAY)LEVER ASSEMBLY, Shift
(GRAY) -
2112-815351 WASHERWASHER
-
2284-824934A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2316-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
2498530 KNOBKNOB
-
25495636 SHIFT RODSHIFT ROD
-
2648419T ROD ENDROD END
-
2723-26856 BUSHINGBUSHING
-
2812-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
2918-25191 COTTER PINCOTTER PIN
-
308M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
3187-14645A4 TRIM SWITCH (POWER TRIM)TRIM SWITCH (POWER TRIM)
-
3249440 NUT, (.468-32) (POWER TRIM)NUT, (.468-32) (POWER TRIM)
-
33816051A2 HORN ASSEMBLYHORN ASSEMBLY
-
3484-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
3584-86324A2 CABLE ASSEMBLY
(RED/YELLOW - 3-1/2 IN.)CABLE ASSEMBLY
(RED/YELLOW - 3-1/2 IN.) -
3584-88807A34 CABLE ASSEMBLY (USE WHERE APPLICABLE)
(3-1/2 IN.)CABLE ASSEMBLY (USE WHERE APPLICABLE)
(3-1/2 IN.) -
3584-88807A39 CABLE ASSEMBLY (USE WHERE APPLICABLE)
(5 IN.)CABLE ASSEMBLY (USE WHERE APPLICABLE)
(5 IN.) -
36824930T3 BRACKETBRACKET
-
3787-8M0052927 SWITCHSWITCH
-
3810-88075020 SCREW, (M3.5 x 20) Stainless SteelSCREW, (M3.5 x 20) Stainless Steel
-
39824923 PLATEPLATE
