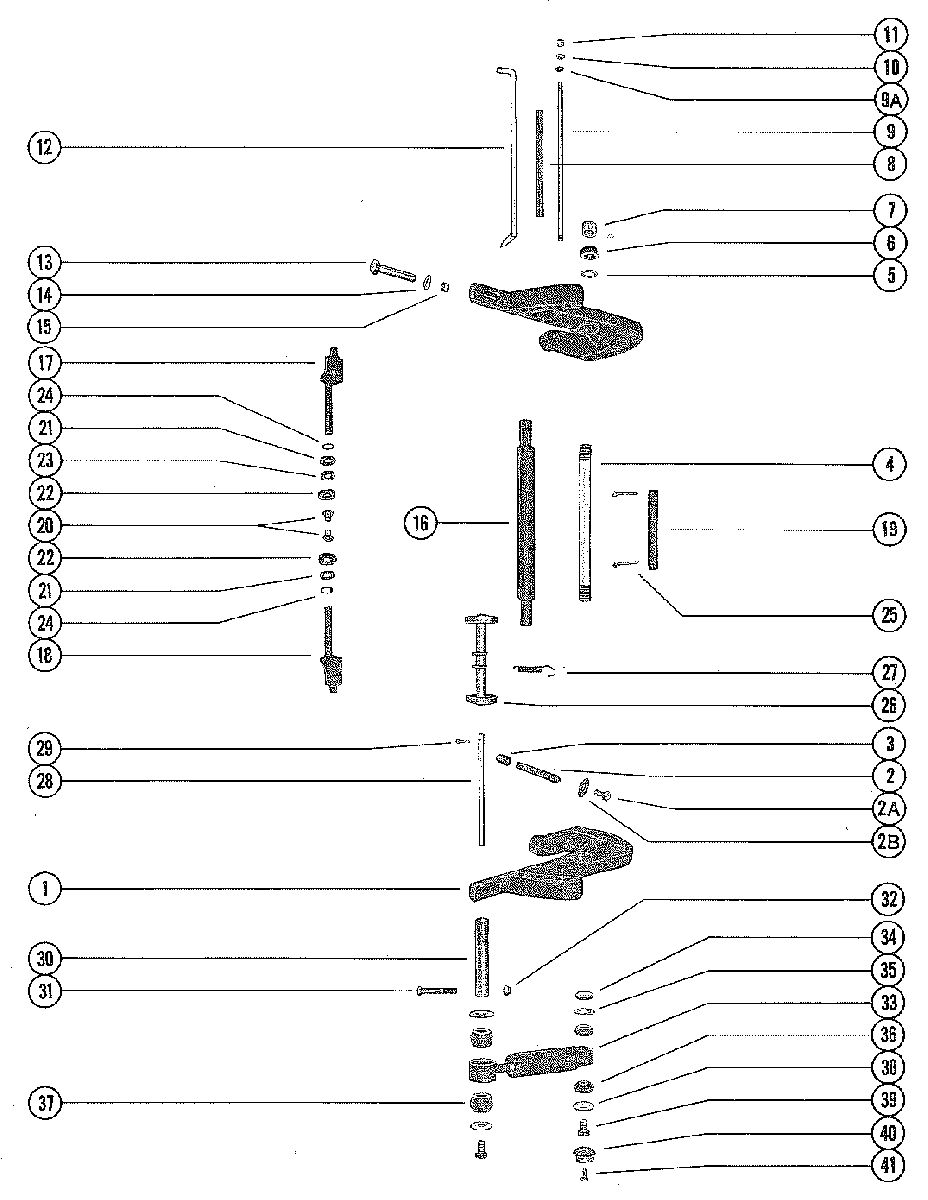

CLAMP BRACKET AND REVERSE LOCK для Mercury - 800 (4 CYL.), 80 (4 CYL.) 4831999 THRU 5582561
-
№АртикулНазвание
-
11440-8394A1 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
210-78492A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
2A10-78495 SCREW, THUMB SCREWSCREW, THUMB SCREW
-
2B12-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
375043 COVER, THUMB SCREWCOVER, THUMB SCREW
-
48M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
512-52864 WASHER, CLAMP BRACKET TILT TUBEWASHER, CLAMP BRACKET TILT TUBE
-
611-858869 NUT, TILT TUBE FASTENINGNUT, TILT TUBE FASTENING
-
753078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
823-59624 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
916-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
9A12-36001 WASHER, CLAMP BRACKET STUDWASHER, CLAMP BRACKET STUD
-
1013-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
1111-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
1217-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
1310-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")BOLT, CLAMP BRACKET TO BOAT TRANSOM (3 1/4")
-
1412-46765 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1310-68299 BOLT, CLAMP BRACKET TO TRANSOM (3")BOLT, CLAMP BRACKET TO TRANSOM (3")
-
1412-68300 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1511-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1655-28416 PIN, UPPER SHOCK MOUNTINGPIN, UPPER SHOCK MOUNTING
-
1947802 TUBE, TILT LOCK (SHORT SHAFT)TUBE, TILT LOCK (SHORT SHAFT)
-
2023-47803 BUSHING, TILT LOCK TUBE (SHORT SHAFT)BUSHING, TILT LOCK TUBE (SHORT SHAFT)
-
2113-69150 WASHER, WAVE-TILT LOCK TUBE (SHORT SHAFT)WASHER, WAVE-TILT LOCK TUBE (SHORT SHAFT)
-
1776386 TILT LOCK ASSEMBLY, STARBOARDTILT LOCK ASSEMBLY, STARBOARD
-
1876385T TILT LOCK ASSEMBLY, PORTTILT LOCK ASSEMBLY, PORT
-
1979659 TUBE, TILT LOCK (LONG SHAFT)TUBE, TILT LOCK (LONG SHAFT)
-
2113-69150 WASHER
WAVE-TILT LOCK (STARBOAR SIDE ONLY) -LONG SHAFTWASHER
WAVE-TILT LOCK (STARBOAR SIDE ONLY) -LONG SHAFT -
2226-22734 OIL SEAL
SWIVEL BRACKET (TILT LOCK) -LONG SHAFTOIL SEAL
SWIVEL BRACKET (TILT LOCK) -LONG SHAFT -
2312-76388 WASHER
TILT LOCK (STARBOARD SIDE ONLY) -LONG SHAFTWASHER
TILT LOCK (STARBOARD SIDE ONLY) -LONG SHAFT -
2425-627021 "O" RING, TILT LOCK (LONG SHAFT)"O" RING, TILT LOCK (LONG SHAFT)
-
2518-47959 COTTER PIN, TILT LOCKCOTTER PIN, TILT LOCK
-
2687431 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
2724-29821 SPRING, REVERSE LOCK (SHORT SHAFT)SPRING, REVERSE LOCK (SHORT SHAFT)
-
2724-78203A2 SPRING ASSEMBLY, REVERSE LOCK (LONG SHAFT)SPRING ASSEMBLY, REVERSE LOCK (LONG SHAFT)
-
2856349 SHAFT, REVERSE LOCK PIVOTSHAFT, REVERSE LOCK PIVOT
-
2918-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
3055-696531 PIN, LOCK SHOCK MOUNTING (SHORT SHAFT)PIN, LOCK SHOCK MOUNTING (SHORT SHAFT)
-
3055-28414 PIN, LOWER SHOCK MOUNTING (LONG SHAFT)PIN, LOWER SHOCK MOUNTING (LONG SHAFT)
-
3110-21937 SCREW, LOWER SHOCK PIN (2") (LONG SHAFT)SCREW, LOWER SHOCK PIN (2") (LONG SHAFT)
-
3211-20184 NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)NUT, LOWER SHOCK PIN SCREW (LONG SHAFT)
-
3355-58780A7 SHOCK ABSORBERSHOCK ABSORBER
-
3423-73203 SPACER
UPPER SHOCK BUSHING TO CLAMP BRACKETSPACER
UPPER SHOCK BUSHING TO CLAMP BRACKET -
3512-28196 WASHER, UPPER BUSHING RETAINER (INNER)WASHER, UPPER BUSHING RETAINER (INNER)
-
3623-32171 BUSHING, RUBBER-SHOCK ABSORBER (UPPER)BUSHING, RUBBER-SHOCK ABSORBER (UPPER)
-
3723-28198 BUSHING, RUBBER-SHOCK ABSORBER (LOWER)BUSHING, RUBBER-SHOCK ABSORBER (LOWER)
-
3812-69374 WASHER
UPPER/LOWER SHOCK MOUNTING PIN (LOWER)WASHER
UPPER/LOWER SHOCK MOUNTING PIN (LOWER) -
3910-69375 SCREW
UPPER AND LOWER SHOCK MOUNTING PINSCREW
UPPER AND LOWER SHOCK MOUNTING PIN -
4023-69132 BUSHING PIVOT SHAFTBUSHING PIVOT SHAFT
-
--27-73645A87 GASKET SETGASKET SET
