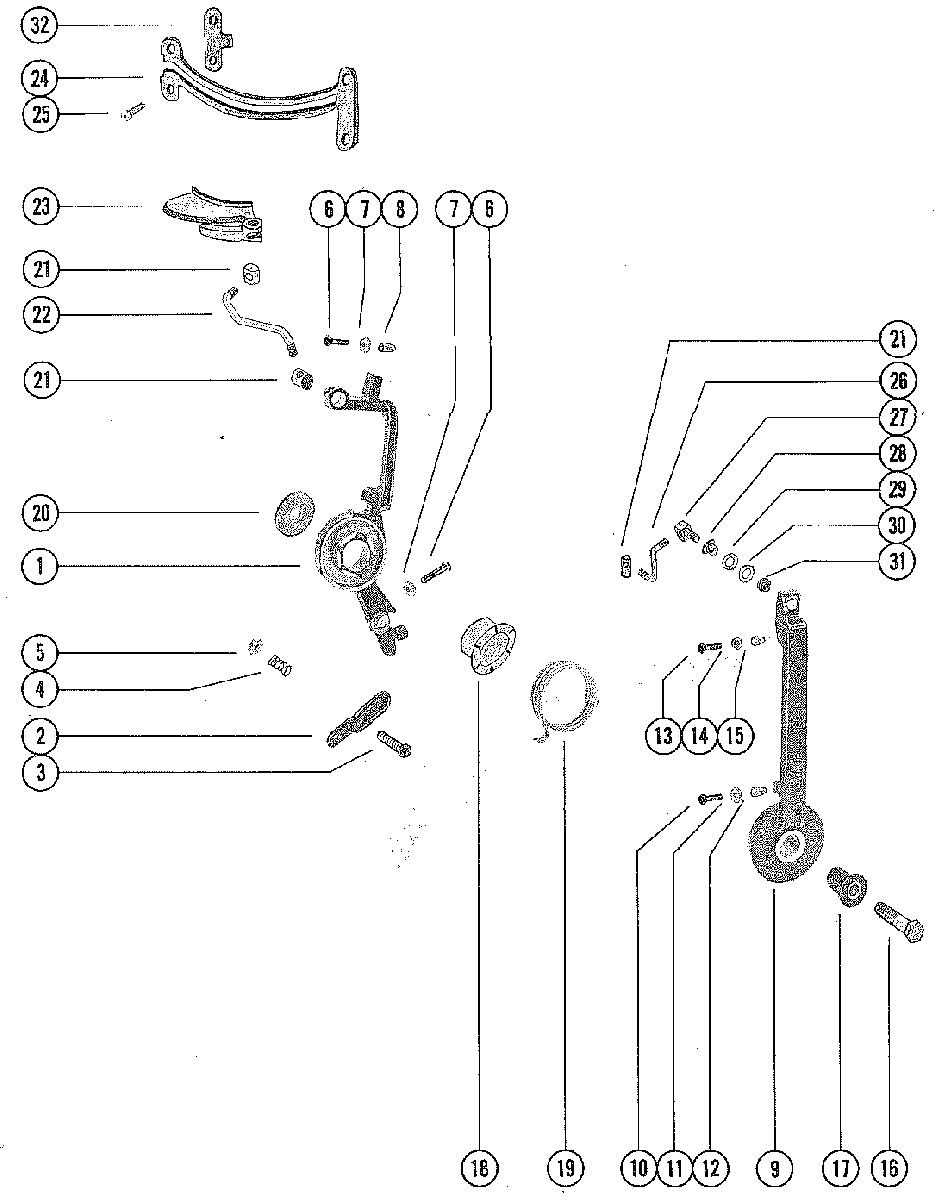

THROTTLE LEVER AND SPARK ADVANCE LEVER для Mercury - 800 (4 CYL.), 80 (4 CYL.) 9177626 THRU 9256130
-
№АртикулНазвание
-
173416 LEVER, THROTTLELEVER, THROTTLE
-
273404 LATCH, THROTTLE LEVER (THROTTLE CABLE)LATCH, THROTTLE LEVER (THROTTLE CABLE)
-
310-59702 SCREW, LATCH TO THROTTLE LEVER (7/8")SCREW, LATCH TO THROTTLE LEVER (7/8")
-
424-20099 SPRING, LATCH SCREWSPRING, LATCH SCREW
-
511-36069 NUT, LATCH SCREWNUT, LATCH SCREW
-
610-69029 SCREW, ADJUSTING - THROTTLE LEVER (1 3/4")SCREW, ADJUSTING - THROTTLE LEVER (1 3/4")
-
711-29598 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
852023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
973414 ARM, SPARK ADVANCEARM, SPARK ADVANCE
-
1010-73656 SCREW, ADJUSTING - SPARK ADVANCE ARM (1 3/8")SCREW, ADJUSTING - SPARK ADVANCE ARM (1 3/8")
-
1111-68219 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
1248039 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1310-67916 SCREW, ADJUSTING - SPARK ADVANCE ARM (2")SCREW, ADJUSTING - SPARK ADVANCE ARM (2")
-
1411-29598 NUT, JAM - ADJUSTING SCREWNUT, JAM - ADJUSTING SCREW
-
1552023 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
1610-818165 SCREW
LEVER AND ARM TO CYLNDER BLOCK (1 3/4")SCREW
LEVER AND ARM TO CYLNDER BLOCK (1 3/4") -
1723-55164 BUSHING, LEVER AND ARM SCREWBUSHING, LEVER AND ARM SCREW
-
1823-55171 BUSHING, FLANGE - LEVER AND ARM SCREWBUSHING, FLANGE - LEVER AND ARM SCREW
-
1924-73375 SPRING, RETURN - LEVER AND ARM SCREWSPRING, RETURN - LEVER AND ARM SCREW
-
2012-46765 WASHER, LEVER AND ARM SCREWWASHER, LEVER AND ARM SCREW
-
2160572 BARREL, NYLON - LEVER AND ARMSBARREL, NYLON - LEVER AND ARMS
-
2273374 LINK ROD, THROTTLELINK ROD, THROTTLE
-
2373432 CAM, THROTTLECAM, THROTTLE
-
2477001 HOUSING, THROTTLE CAMHOUSING, THROTTLE CAM
-
2510-60605 SCREW, HOUSING TO CRANKCASE (3/4")SCREW, HOUSING TO CRANKCASE (3/4")
-
2677010 LINK ROD, SPARK ADVANCELINK ROD, SPARK ADVANCE
-
2776158A1 SWIVEL ASSEMBLY, LINK ROD TO ARMSWIVEL ASSEMBLY, LINK ROD TO ARM
-
2823-26856 BUSHING, NYLON - LINK ROD SWIVELBUSHING, NYLON - LINK ROD SWIVEL
-
2913-29402 WAVE WASHER, LINK ROD SWIVELWAVE WASHER, LINK ROD SWIVEL
-
3012-73288 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
3111-20110 NUT, LINK ROD SWIVELNUT, LINK ROD SWIVEL
-
3277158 SPACER, THROTTLE CAM HOUSINGSPACER, THROTTLE CAM HOUSING
