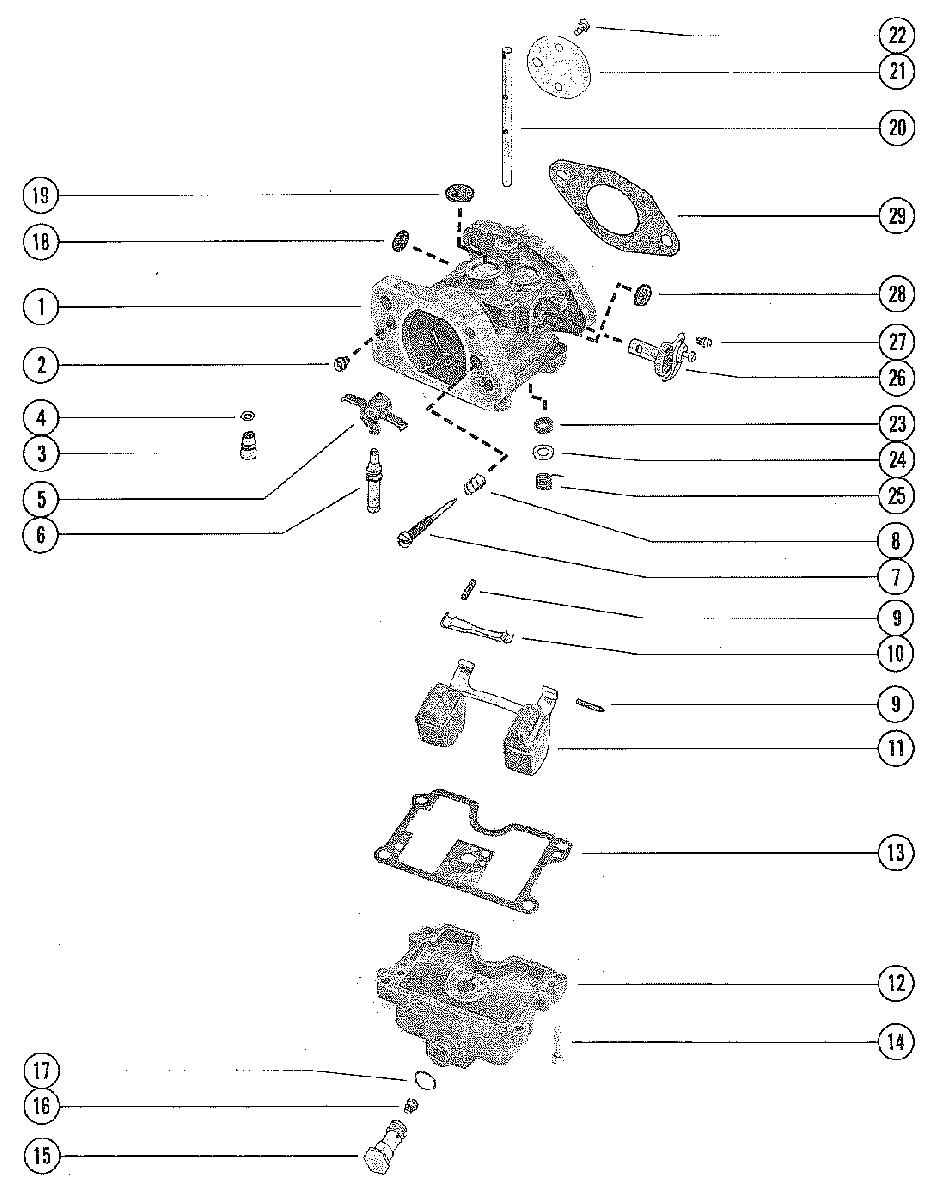

CARBURETOR ASSEMBLY для Mercury - 850 (4 CYL.) 4366802 THRU 4831998
-
№АртикулНазвание
-
11379-6071A4 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022 -
11379-6071A58 CARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UPCARBURETOR ASSEMBLY, COMPLETE
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UP -
21395-6201 JET, VENT BOWL (.080)
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022JET, VENT BOWL (.080)
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022 -
21395-6207 JET, VENT BOWL (.072)
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UPJET, VENT BOWL (.072)
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UP -
31395-83181 INLET NEEDLE AND SEATINLET NEEDLE AND SEAT
-
490-8M0143356 GASKET, INLET NEEDLE AND SEATGASKET, INLET NEEDLE AND SEAT
-
51395-6685 VENTURI ASSEMBLYVENTURI ASSEMBLY
-
690-8M0143356 NOZZLENOZZLE
-
790-8M0143356 IDLE NEEDLEIDLE NEEDLE
-
890-8M0143356 SPRING, IDLE MIXTURESPRING, IDLE MIXTURE
-
990-8M0143356 PIN, FLOATPIN, FLOAT
-
1090-8M0143356 LEVER, FLOATLEVER, FLOAT
-
1119273 FLOATFLOAT
-
121395-6195 FUEL BOWL
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022FUEL BOWL
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022 -
121395-6488 FUEL BOWL
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UPFUEL BOWL
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UP -
1390-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
1490-8M0143356 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
151395-6199 PLUG, MAIN JETPLUG, MAIN JET
-
161395-6202 JET MAIN (.088)
UNITED STATES 4366802 THRU 4423111 BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022JET MAIN (.088)
UNITED STATES 4366802 THRU 4423111 BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022 -
161395-6247 JET, MAIN (.090)
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UPJET, MAIN (.090)
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UP -
1790-8M0143356 GASKET, MAIN JET PLUGGASKET, MAIN JET PLUG
-
1890-8M0143356 SCREEN, FUEL INLETSCREEN, FUEL INLET
-
1990-8M0143356 WELCH PLUG (9/16")WELCH PLUG (9/16")
-
201395-4807 SHAFT, THROTTLESHAFT, THROTTLE
-
211395-6196 VALVE, THROTTLEVALVE, THROTTLE
-
2290-8M0143356 SCREW, VALVE TO THROTTLE SHAFTSCREW, VALVE TO THROTTLE SHAFT
-
231395-6204 SEAL, THROTTLE SHAFTSEAL, THROTTLE SHAFT
-
241395-6203 WASHER, THROTTLE SHAFTWASHER, THROTTLE SHAFT
-
2590-8M0143356 SPRING, THROTTLE RETURNSPRING, THROTTLE RETURN
-
261395-6198 VALVE ASSEMBLY, ENRICHMENTVALVE ASSEMBLY, ENRICHMENT
-
2790-8M0143356 SCREW, ENRICHMENT BRACKETSCREW, ENRICHMENT BRACKET
-
2890-8M0143356 WELCH PLUG (7/16")WELCH PLUG (7/16")
-
2927-733771 GASKET, CARBURETORGASKET, CARBURETOR
-
--1395-6200 GASKET KITGASKET KIT
-
--812953 REPAIR PARTS KIT
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022REPAIR PARTS KIT
UNITED STATES 4366802 THRU 4423111
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7082022 -
--812953 REPAIR PARTS KIT
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UPREPAIR PARTS KIT
UNITED STATES 4423112 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7082023 AND UP
