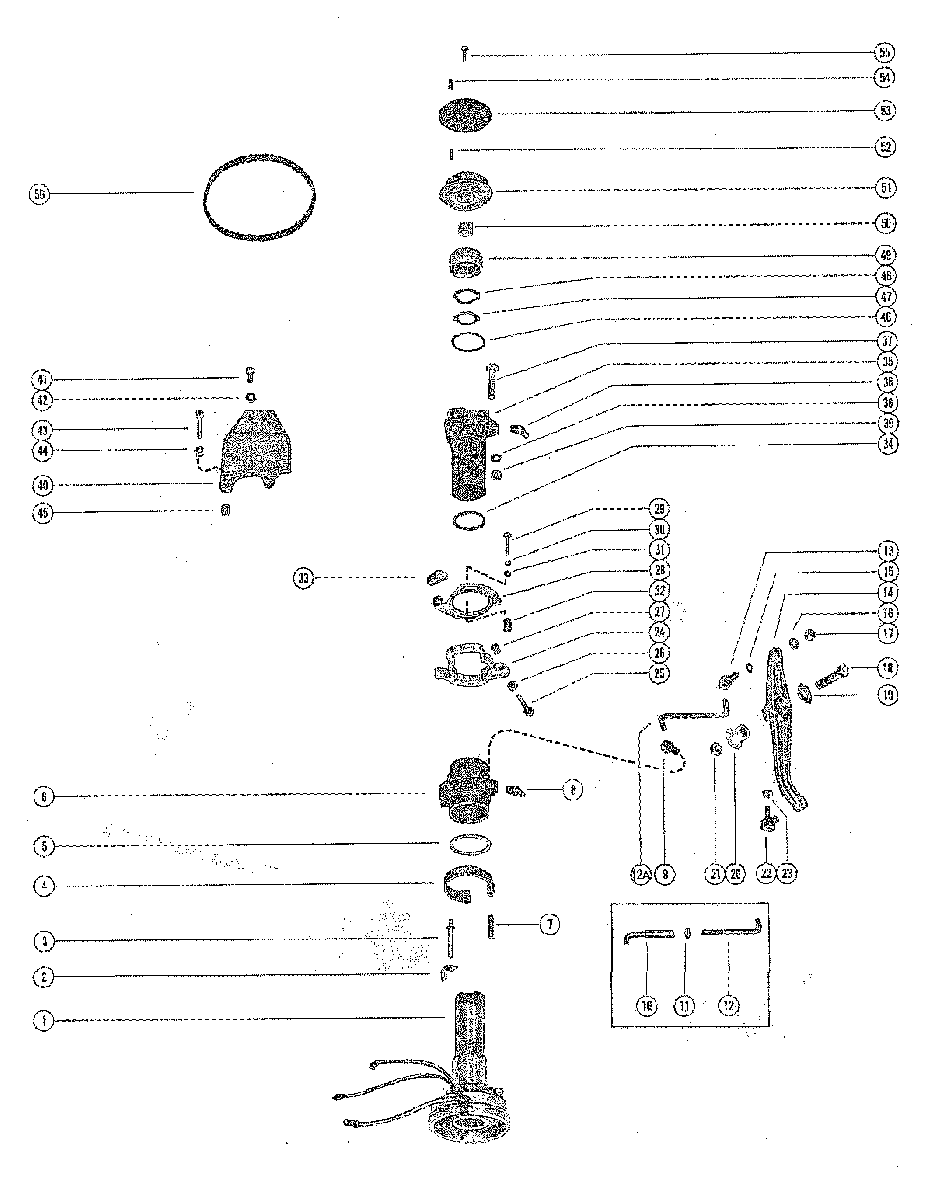

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 850 (4 CYL.) 7010108 THRU 7071372
-
№АртикулНазвание
-
1393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
232197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSINGSTOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
-
317-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSINGPIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
-
424-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSINGSPRING, HORSESHOE - DISTRIBUTOR HOUSING
-
512-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSINGWASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
-
655804A1 ECONOMIZER COLLAR ASSEMBLYECONOMIZER COLLAR ASSEMBLY
-
717-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
822-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
927947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
1025996A1 SWIVEL AND LINK ROD ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWSWIVEL AND LINK ROD ASSEMBLY
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1111-29598 NUT, UPPER LINK ROD ADJUSTING
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWNUT, UPPER LINK ROD ADJUSTING
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1237588 ROD, LINK - UPPER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWROD, LINK - UPPER
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
12A67468 ROD, LINK - UPPER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPROD, LINK - UPPER
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1327948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
1448562 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1513-39954 WASHER, WAVE - THROTTLE CONTROL LEVER SWIVELWASHER, WAVE - THROTTLE CONTROL LEVER SWIVEL
-
1612-29245 WASHER< THROTTLE CONTROL LEVER SWIVELWASHER< THROTTLE CONTROL LEVER SWIVEL
-
1711-35888 NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVERNUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
1810-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
-
1912-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2023-45818 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2111-8M0042636 NUT, THROTTLE CONTROL LEVER SCREWNUT, THROTTLE CONTROL LEVER SCREW
-
2237587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLESWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
-
2311-35888 NUT, THROTTLE CABLE TO LOWER SWIVELNUT, THROTTLE CABLE TO LOWER SWIVEL
-
2448692 COLLAR, THROTTLE ACTUATORCOLLAR, THROTTLE ACTUATOR
-
2510-61658 SCREW, ADJUSTING - ACTUATOR COLLAR (1 3/4")SCREW, ADJUSTING - ACTUATOR COLLAR (1 3/4")
-
2611-64015 NUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREWNUT, THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
-
2752023 CAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREWCAP, NYLON - THROTTLE ACTUATOR COLLAR ADJUSTING SCREW
-
2848671 PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
2910-37892 SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (1")
-
3012-30164 WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREWWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3113-26996 LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREWLOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3223-48674 SPACER, THROTTLE ACTUATOR PLATE SCREWSPACER, THROTTLE ACTUATOR PLATE SCREW
-
3354239 CAM, THROTTLE ACTUATOR PLATECAM, THROTTLE ACTUATOR PLATE
-
3412-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSINGWASHER, ADAPTOR - DISTRIBUTOR HOUSING
-
3566165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWADAPTOR ASSEMBLY, DISTRIBUTOR
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
3566165A2 ADAPTOR ASSEMBLY, DISTRIBUTOR
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPADAPTOR ASSEMBLY, DISTRIBUTOR
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
3622-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
3710-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
-
3710-73657 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
-
3812-20084 WASHER, DISTRIBUTOR HOUSING SCREWWASHER, DISTRIBUTOR HOUSING SCREW
-
3911-22053 NUT, DISTRIBUTOR HOUSING SCREW
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWNUT, DISTRIBUTOR HOUSING SCREW
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
4055805 BRACKET, STOPBRACKET, STOP
-
4110-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
-
4212-35462 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
4310-24228 SCREW, STOP BRACKET ADJUSTING (1 7/8")SCREW, STOP BRACKET ADJUSTING (1 7/8")
-
4411-20890 NUT, STOP BRACKET ADJUSTING SCREWSNUT, STOP BRACKET ADJUSTING SCREWS
-
4552023 CAP, NYLON - STOP BRACKET ADJUSTING SCREWSCAP, NYLON - STOP BRACKET ADJUSTING SCREWS
-
4612-27939 WASHER, DISTRIBUTOR HOUSINGWASHER, DISTRIBUTOR HOUSING
-
4714-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
4813-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSIONWASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
-
4954567 CAP, DISTRIBUTOR HOUSINGCAP, DISTRIBUTOR HOUSING
-
5023-47250 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
5129906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
5217-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
5329907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
5428-29910 KEY, DISTRIBUTOR DRIVERKEY, DISTRIBUTOR DRIVER
-
5510-68554 SCREW, PULLEY CLAMPING SCREWSCREW, PULLEY CLAMPING SCREW
-
5620140 BELT, TIMINGBELT, TIMING
