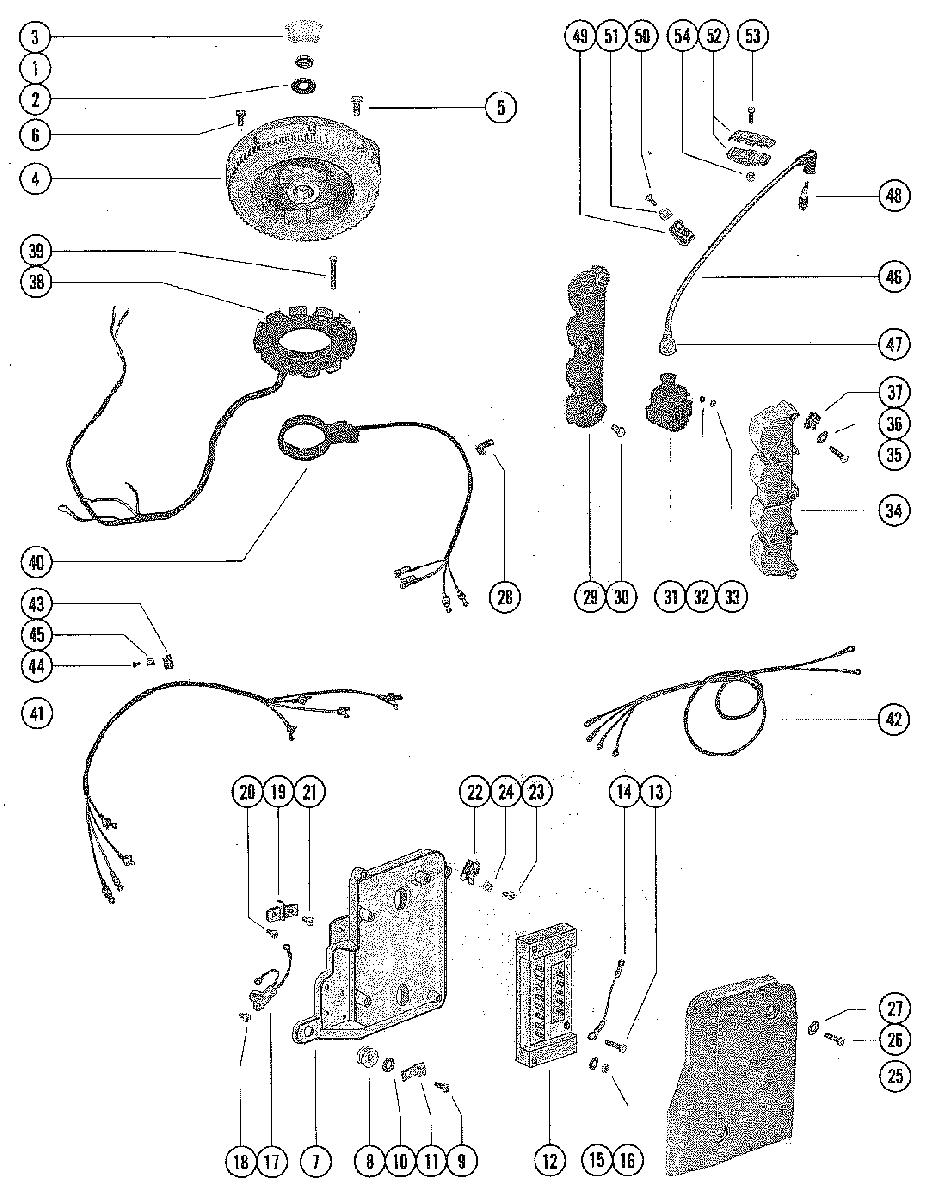

FLYWHEEL, STATOR AND IGNITION COIL для Mercury - 850 (4 CYL.) 7071373 THRU 7110997
-
№АртикулНазвание
-
111-52901 NUT, FLYWHEELNUT, FLYWHEEL
-
212-33001 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
319-45907 PLUG, FLYWHEEL PULLER THREADSPLUG, FLYWHEEL PULLER THREADS
-
4248-8722A6 FLYWHEEL ASSEMBLY
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097FLYWHEEL ASSEMBLY
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
4248-8722A6 FLYWHEEL ASSEMBLY
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UPFLYWHEEL ASSEMBLY
UNITED STATES 4590512 AND UP
AUSTRALIA 8043775 AND UP
BELGIUM 9139350 AND UP
CANADA 7091098 AND UP -
510-68997 SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4")
-
610-32417 SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8")
-
790332 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
825-57009001 GROMMET, SWITCH BOX PLATEGROMMET, SWITCH BOX PLATE
-
910-824941 SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")SCREW, SWITCH BOX PLATE TO CYLINDER BLOCK (3/4")
-
1012-56720 WASHER, SWITCH BOX PLATE SCREWWASHER, SWITCH BOX PLATE SCREW
-
1154-47483 "J" CLIP, SWITCH BOX WIRES AND FUEL LINE"J" CLIP, SWITCH BOX WIRES AND FUEL LINE
-
12332-5772A7 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
1310-20619 SCREW, SWITCH BOX TO PLATE (1 3/8")SCREW, SWITCH BOX TO PLATE (1 3/8")
-
1484-65999A5 WIRE ASSEMBLYWIRE ASSEMBLY
-
1513-26996 LOCKWASHER, SWITCH BOX TERMINALLOCKWASHER, SWITCH BOX TERMINAL
-
1611-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
1758124A19 MERCURY SWITCH ASSEMBLYMERCURY SWITCH ASSEMBLY
-
1810-37571 SCREW, MERCURY SWITCH TO PLATE (1/2")SCREW, MERCURY SWITCH TO PLATE (1/2")
-
1986-66986 TERMINAL BLOCKTERMINAL BLOCK
-
2010-38055 SCREW, TERMINAL BLOCK TO PLATE (5/8")SCREW, TERMINAL BLOCK TO PLATE (5/8")
-
2110-37655 SCREW, WIRE TO TERMINAL BLOCK (1/2")SCREW, WIRE TO TERMINAL BLOCK (1/2")
-
2254-23567 CLIP, WIRES AND HARNESSCLIP, WIRES AND HARNESS
-
2310-62568 SCREW, CLIP TO PLATE (3/8")SCREW, CLIP TO PLATE (3/8")
-
248M0084613 "D" WASHER, CLIP SCREW"D" WASHER, CLIP SCREW
-
2573407 COVER, SWITCH BOX
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097COVER, SWITCH BOX
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
2610-20616 SCREW, COVER TO PLATE (1/2")
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097SCREW, COVER TO PLATE (1/2")
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
2712-20533 WASHER, COVER SCREW
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097WASHER, COVER SCREW
UNITED STATES 4366802 THRU 4590511
BELGIUM 9110014 THRU 9139349
CANADA 7071373 THRU 7091097 -
2854-47483 "J" CLAMP, TRIGGER PLATE HARNESS"J" CLAMP, TRIGGER PLATE HARNESS
-
2973395 PLATE, MOUNTING - IGNITION COILPLATE, MOUNTING - IGNITION COIL
-
3010-28668 SCREW, MOUNTING PLATE TO CRANKCASE (7/8")SCREW, MOUNTING PLATE TO CRANKCASE (7/8")
-
31339-5288T2 IGNITION COIL ASSEMBLYIGNITION COIL ASSEMBLY
-
3213-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
3311-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
3487554 COVER, IGNITION COILCOVER, IGNITION COIL
-
3510-88856 SCREW, COVER TO MOUNTING PLATE (2")SCREW, COVER TO MOUNTING PLATE (2")
-
3612-30164 WASHER, COVER SCREWWASHER, COVER SCREW
-
3754-22740 CLIP, NYLON - IGNITION COIL COVER SCREWCLIP, NYLON - IGNITION COIL COVER SCREW
-
38398-5454A26 STATOR ASSEMBLYSTATOR ASSEMBLY
-
3910-63136 SCREW, STATOR TO UPPER END CAP (7/8")SCREW, STATOR TO UPPER END CAP (7/8")
-
4096453A2 TRIGGER PLATE ASSEMBLY SEE NOTE ON GRID E4
SEE NOTE ON GRID E4TRIGGER PLATE ASSEMBLY SEE NOTE ON GRID E4
SEE NOTE ON GRID E4 -
4184-73362A1 HARNESS ASSEMBLY, IGNITION COIL
SEE NOTE ON GRID E4HARNESS ASSEMBLY, IGNITION COIL
SEE NOTE ON GRID E4 -
4284-74901 HARNESS, GROUNDINGHARNESS, GROUNDING
-
4354-28700 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
4410-48408 SCREW, CLAMP TO CRANKCASE (1/2")SCREW, CLAMP TO CRANKCASE (1/2")
-
4512-56681 WASHER, HARNESS CLAMP SCREWWASHER, HARNESS CLAMP SCREW
-
4684-813715A1 WIRE ASSEMBLY, SPARK PLUBWIRE ASSEMBLY, SPARK PLUB
-
47332-2854T01 BOOT, IGNITION COIL ENDBOOT, IGNITION COIL END
-
4833-97180Q SPARK PLUG (AC#V40FFM)SPARK PLUG (AC#V40FFM)
-
4954-45806 CLAMP, SPARK PLUG WIRECLAMP, SPARK PLUG WIRE
-
5010-48408 SCREW, CLAMP TO EXHAUST MANIFOLD COVER (1/2")SCREW, CLAMP TO EXHAUST MANIFOLD COVER (1/2")
-
518M0084613 "D" WASHER, CLAMP SCREW"D" WASHER, CLAMP SCREW
-
5263319 RETAINER, SPARK PLUG WIRERETAINER, SPARK PLUG WIRE
-
5310-46378 SCREW, RETAINER TO CYLINDER BLOCK COVER (1")SCREW, RETAINER TO CYLINDER BLOCK COVER (1")
-
5411-20013 NUT, RETAINER SCREWNUT, RETAINER SCREW
