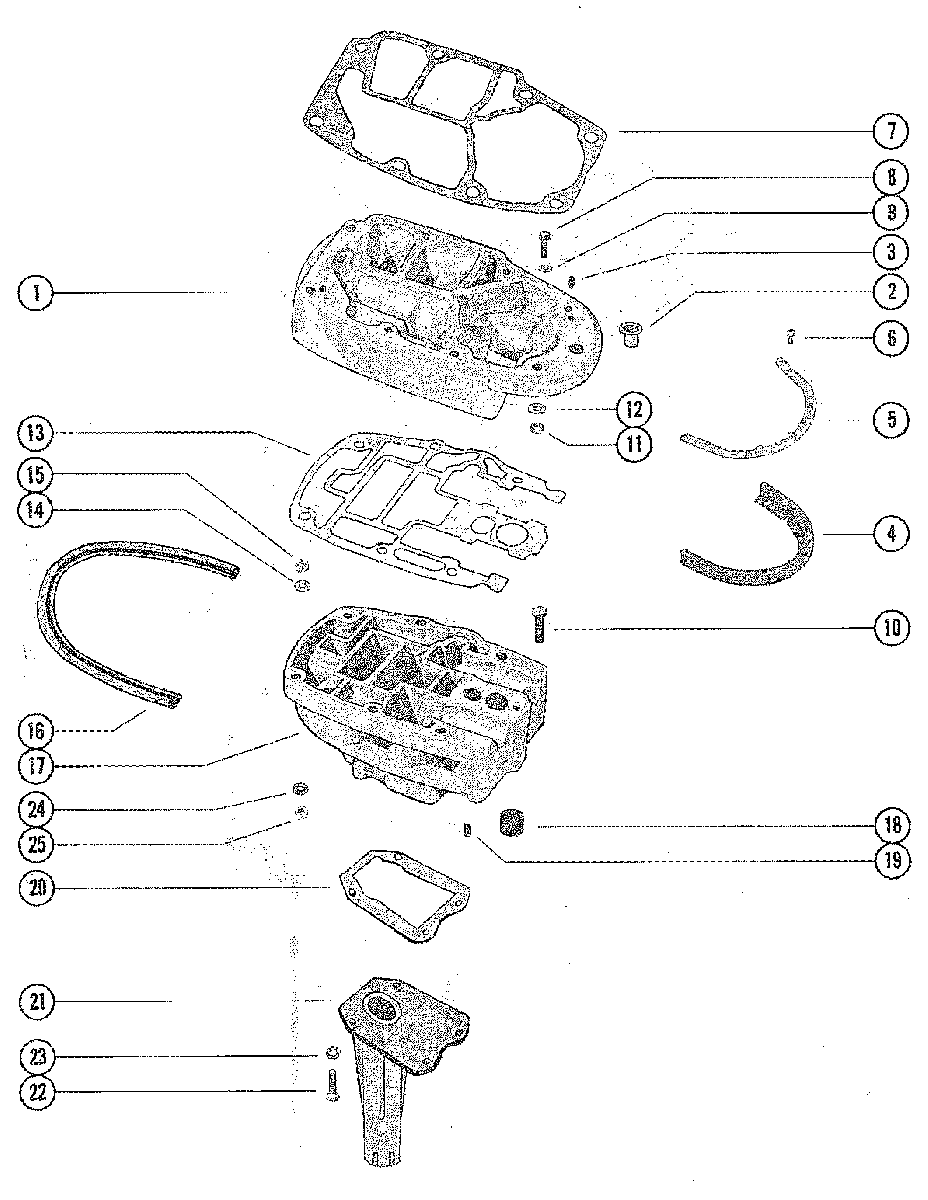

EXHAUST EXTENSION PLATE для Mercury - 850 (4 CYL.) 9011604 THRU 9110013
-
№АртикулНазвание
-
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWPLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
143289A2 PLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPLATE ASSEMBLY, EXHAUST EXTENSION
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
223-27132 BUSHING, NYLON - EXHAUST EXTENSION PLATE
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPBUSHING, NYLON - EXHAUST EXTENSION PLATE
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
317-23784 DOWEL PIN, EXHAUST EXTENSION PLATEDOWEL PIN, EXHAUST EXTENSION PLATE
-
437918 SEAL, EXHAUST EXTENSION PLATESEAL, EXHAUST EXTENSION PLATE
-
599358 STRIP, RETAINING - EXHAUST EXTENSION PLATESTRIP, RETAINING - EXHAUST EXTENSION PLATE
-
610-37571 SCREW, SEAL AND RETAINING STRIP TO EXHAUST PLATE (1/2")SCREW, SEAL AND RETAINING STRIP TO EXHAUST PLATE (1/2")
-
727-692381 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
727-692381 GASKET, POWERHEAD TO EXHAUST EXTENSION PLATEGASKET, POWERHEAD TO EXHAUST EXTENSION PLATE
-
810-62644 SCREW, ADAPTOR PLATE ATTACHING (1 3/4")
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWSCREW, ADAPTOR PLATE ATTACHING (1 3/4")
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
913-26993 LOCKWASHER, ADAPTOR PLATE SCREW
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWLOCKWASHER, ADAPTOR PLATE SCREW
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
810-66023 SCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPSCREW, ADAPTOR PLATE TO HOUSING PLATE (2")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1010-66023 SCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPSCREW, HOUSING PLATE TO DRIVE SHAFT HOUSING (2")
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1111-69254 NUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATENUT, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
-
1212-20553 WASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATEWASHER, CRANKCASE STUDS TO EXHAUST EXTENSION PLATE
-
1327-661021 GASKET, PLATE TO DRIVE SHAFT HSG. PLATE
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWGASKET, PLATE TO DRIVE SHAFT HSG. PLATE
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1327-661021 GASKET, PLATE TO DRIVE SHAFT HSG. PLATE
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPGASKET, PLATE TO DRIVE SHAFT HSG. PLATE
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1412-34437 WASHER, DRIVE SHAFT HOUSING STUD
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWWASHER, DRIVE SHAFT HOUSING STUD
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1511-64809 NUT, DRIVE SHAFT HOUSING STUD
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWNUT, DRIVE SHAFT HOUSING STUD
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1626-60898 SEAL, DRIVE SHAFT HOUSING PLATESEAL, DRIVE SHAFT HOUSING PLATE
-
1743543A1 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOWPLATE ASSEMBLY, DRIVE SHAFT HOUSING
UNITED STATES 3865694 AND BELOW
AUSTRALIA 8017139 AND BELOW
BELGIUM 9053363 AND BELOW
CANADA 7033027 AND BELOW -
1743543A1 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UPPLATE ASSEMBLY, DRIVE SHAFT HOUSING
UNITED STATES 3865695 AND UP
AUSTRALIA 8017140 AND UP
BELGIUM 9053364 AND UP
CANADA 7033028 AND UP -
1826-38970 SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HOUSING PLATE)SEAL, RUBBER - WATER INLET TUBE (DRIVE SHAFT HOUSING PLATE)
-
1917-23784 DOWEL PIN, DRIVE SHAFT HOUSING PLATEDOWEL PIN, DRIVE SHAFT HOUSING PLATE
-
2027-69860 GASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBEGASKET, DRIVE SHAFT HOUSING PLATE TO EXHAUST TUBE
-
2165032 EXHAUST TUBEEXHAUST TUBE
-
2210-65414 SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")SCREW, EXHAUST TUBE TO DRIVE SHAFT HOUSING PLATE (3/4")
-
2313-26992 LOCKWASHER, EXHAUST PLATE SCREWLOCKWASHER, EXHAUST PLATE SCREW
-
2412-20553 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
2511-82671013 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
