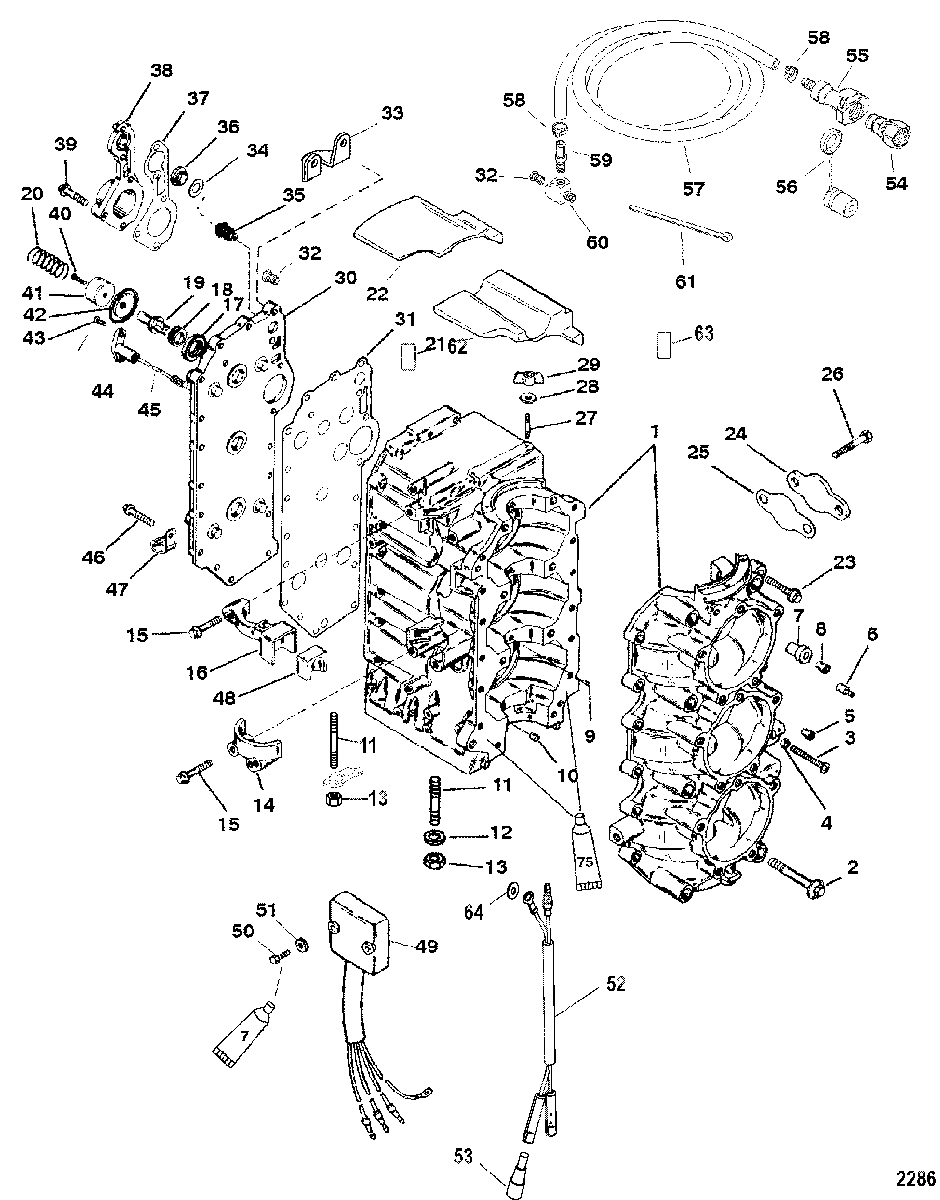

Cylinder Block для Mercury - 90 (3 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
1876-898208A01 CYLINDER BLOCK
(Oil Injection)CYLINDER BLOCK
(Oil Injection) -
1876-898208A01 CYLINDER BLOCK
(Non Oil Injection)CYLINDER BLOCK
(Non Oil Injection) -
210-4009680 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
310-814776 SCREW, Adjusting (M6 x 55)SCREW, Adjusting (M6 x 55)
-
411-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
542942 CAPCAP
-
621-426233 CHECK VALVE (Press-In)CHECK VALVE (Press-In)
-
7813801A1 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
821-42657A3 CHECK VALVECHECK VALVE
-
917-8M0036405 PIN, Bearing RacePIN, Bearing Race
-
1017-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1116-821676A1 STUD KIT (M10 x 136)STUD KIT (M10 x 136)
-
1212-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1311-40140 NUT, (M10)NUT, (M10)
-
1476867 COVER, BottomCOVER, Bottom
-
1510-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
16428842 COVER, TopCOVER, Top
-
1765848 CARRIERCARRIER
-
1825-64872 GROMMETGROMMET
-
1986596T POPPET VALVEPOPPET VALVE
-
2024-42996 SPRING, (Stainless Steel)SPRING, (Stainless Steel)
-
21824703A1 PLUG KITPLUG KIT
-
22NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2310-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2412621 COVER
(Non Oil Injection)COVER
(Non Oil Injection) -
2527-126201 GASKET
(Non Oil Injection)GASKET
(Non Oil Injection) -
2610-82104512 SCREW, (M5 x 12)
(Non Oil Injection)SCREW, (M5 x 12)
(Non Oil Injection) -
2716-8161949 STUD, (M6 x 44)STUD, (M6 x 44)
-
2812-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2911-816872 WING NUTWING NUT
-
301034-9003A2 COVER ASSEMBLYCOVER ASSEMBLY
-
3127-430057 GASKETGASKET
-
3222-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
33823462 LIFTING EYE
(Non Oil Injection)LIFTING EYE
(Non Oil Injection) -
3412-475331 THERMOSTAT WASHER
(Non Oil Injection)THERMOSTAT WASHER
(Non Oil Injection) -
3514586 THERMOSTAT
(Oil Injection)THERMOSTAT
(Oil Injection) -
3627-62386001 GASKETGASKET
-
3727-430068 GASKETGASKET
-
388M0047619 COVERCOVER
-
3910-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
4010-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
4112-94182 WASHERWASHER
-
42648771 DIAPHRAGMDIAPHRAGM
-
4310-878609 SCREW, (#10-16 x .600)SCREW, (#10-16 x .600)
-
4444290T RETAINERRETAINER
-
45787992 SENDER, TemperatureSENDER, Temperature
-
4610-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
4754-814634 CLAMPCLAMP
-
4899162001 BOOTBOOT
-
49821889A51 REV LIMITER
(Electric-Non Oil Injection)REV LIMITER
(Electric-Non Oil Injection) -
49821889A49 REV LIMITER
(Manual)REV LIMITER
(Manual) -
49821889A50 REV LIMITER
(Jet)REV LIMITER
(Jet) -
5010-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
5112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
5284-855212A1 HARNESS ASSEMBLY, Adaptor
(Oil Injection)HARNESS ASSEMBLY, Adaptor
(Oil Injection) -
5313541 PLUG, Male
(Oil Injection)PLUG, Male
(Oil Injection) -
5422-857175 COUPLING INSERT
(Coastal/Saltwater)COUPLING INSERT
(Coastal/Saltwater) -
5522-857176 COUPLING BODY
(Coastal/Saltwater)COUPLING BODY
(Coastal/Saltwater) -
5619-858240 CAP
(Coastal/Saltwater)CAP
(Coastal/Saltwater) -
5732-8M0108349 TUBING, (.312) (70.00 Inches Bulk)
(Coastal/Saltwater)TUBING, (.312) (70.00 Inches Bulk)
(Coastal/Saltwater) -
5854-816311T TIE STRAP, (8.00 Inches)
(Coastal/Saltwater)TIE STRAP, (8.00 Inches)
(Coastal/Saltwater) -
5922-857219 FITTING
(Coastal/Saltwater)FITTING
(Coastal/Saltwater) -
6022-286241 FITTING, T
(Coastal/Saltwater)FITTING, T
(Coastal/Saltwater) -
6154-850181 TIE STRAP, (11.750 Inches)
(Coastal/Saltwater)TIE STRAP, (11.750 Inches)
(Coastal/Saltwater) -
62NSS NOT SOLD SEPARATE, Decal-SerializationNOT SOLD SEPARATE, Decal-Serialization
-
63NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
6412-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
-27-43004A99 GASKET SET, PowerheadGASKET SET, Powerhead
-
-898208A02 POWERHEAD ASSEMBLY
(Non Oil Injection)POWERHEAD ASSEMBLY
(Non Oil Injection) -
-809837T97 POWERHEAD ASSEMBLY
(Oil Injection)POWERHEAD ASSEMBLY
(Oil Injection)
