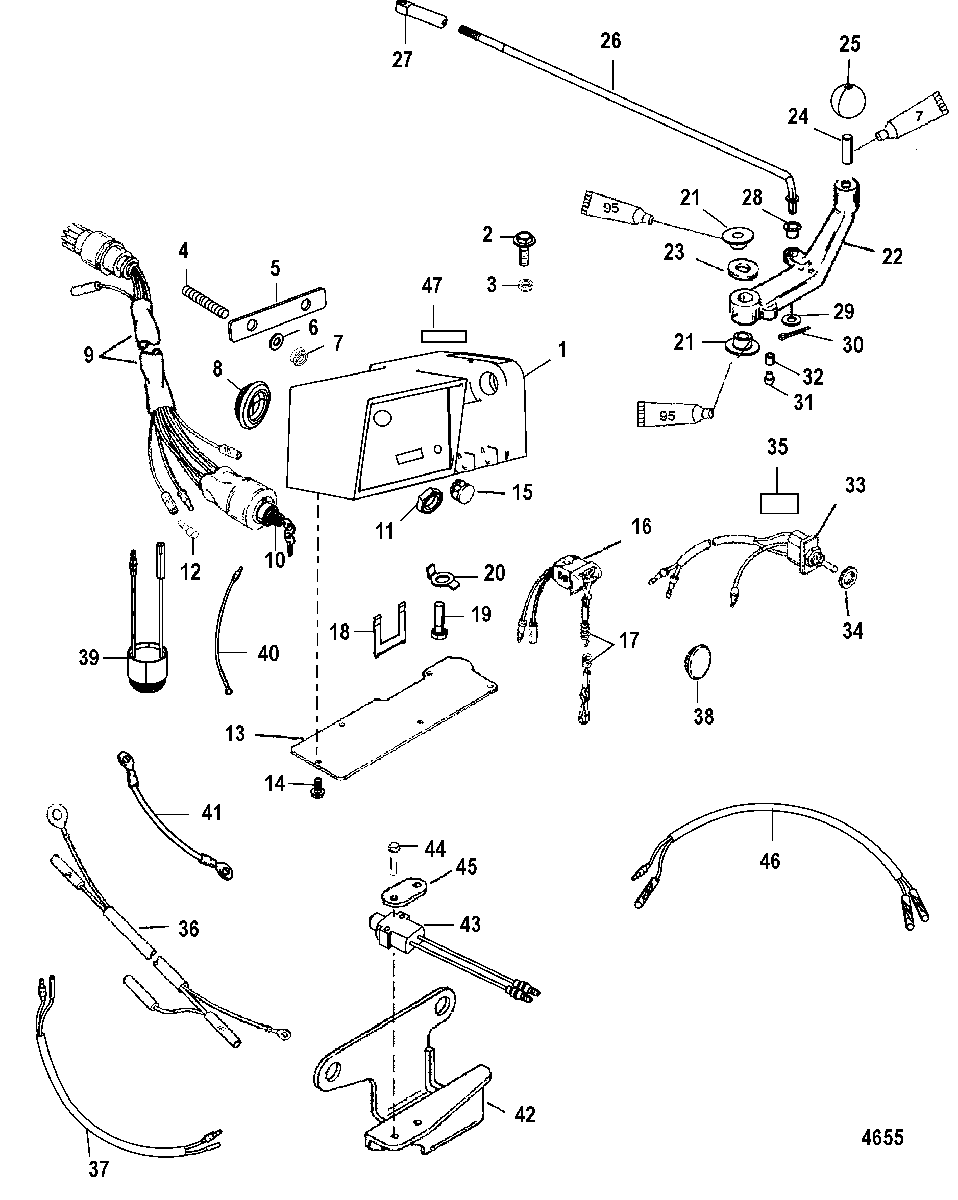

Steering Handle Components для Mercury - 90 (3 CYL.) 0T980000 THRU 0T999999
-
№АртикулНазвание
-
112022A22 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
210-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
311-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
416-8M0034421 STUD, (.3125 x 2.50)STUD, (.3125 x 2.50)
-
5822263 SPACERSPACER
-
612-814806 WASHER, (.344 x .688 x .065) Stainless SteelWASHER, (.344 x .688 x .065) Stainless Steel
-
711-82670911 NUT, (.312-24) Stainless SteelNUT, (.312-24) Stainless Steel
-
8121051 GROMMETGROMMET
-
984-12649A5 HARNESS ASSEMBLY
(Electric)HARNESS ASSEMBLY
(Electric) -
1087-88107A5 SWITCH KIT, Key
(Reference Key Chart Section for Key)(Electric)SWITCH KIT, Key
(Reference Key Chart Section for Key)(Electric) -
1111-879755 NUT, Special - Black Nylon
(Black Nylon) (Electric)NUT, Special - Black Nylon
(Black Nylon) (Electric) -
1213541 PLUG, Male
(Electric)PLUG, Male
(Electric) -
13120151 COVERCOVER
-
1410-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1519-889730 PLUG
(Manual Tilt Assist)PLUG
(Manual Tilt Assist) -
1687-11083A4 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
178M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
188M0032846 RETAINER, BrassRETAINER, Brass
-
1910-4000358 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2014-42981 TAB WASHERTAB WASHER
-
2123-889732 BUSHINGBUSHING
-
2212021A1 LEVER ASSEMBLY, ShiftLEVER ASSEMBLY, Shift
-
2312-815351 WASHERWASHER
-
2416-8M0034452 STUD, (.375-24 x 1.125)STUD, (.375-24 x 1.125)
-
2598530 KNOBKNOB
-
26495636 SHIFT RODSHIFT ROD
-
2748419T ROD ENDROD END
-
2823-26856 BUSHINGBUSHING
-
2912-35950 WASHER, (.273 x .437 x .031) Stainless SteelWASHER, (.273 x .437 x .031) Stainless Steel
-
3018-25191 COTTER PINCOTTER PIN
-
318M0091388 DETENT/SPRING KITDETENT/SPRING KIT
-
32NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
3387-14645A4 TRIM SWITCH
(Power Trim)TRIM SWITCH
(Power Trim) -
3449440 NUT, (.468-32)
(Power Trim)NUT, (.468-32)
(Power Trim) -
35NSS NOT SOLD SEPARATE, Decal
(Power Trim)NOT SOLD SEPARATE, Decal
(Power Trim) -
3684-815851A2 HARNESS ASSEMBLY, Stop
(Manual Tilt Assist)HARNESS ASSEMBLY, Stop
(Manual Tilt Assist) -
3784-821028A2 CABLE ASSEMBLY
(Manual Tilt Assist)CABLE ASSEMBLY
(Manual Tilt Assist) -
38815803 PLUG
(Manual Tilt Assist)PLUG
(Manual Tilt Assist) -
39816051A2 HORN ASSEMBLYHORN ASSEMBLY
-
4084-11149A3 CABLE ASSEMBLYCABLE ASSEMBLY
-
4184-86324A2 CABLE ASSEMBLY
(Electric)CABLE ASSEMBLY
(Electric) -
42824930T2 BRACKETBRACKET
-
4387-8M0052927 SWITCHSWITCH
-
4410-88075020 SCREW, (M3 x 20)SCREW, (M3 x 20)
-
45824923 PLATEPLATE
-
4684-824934A3 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
47NSS NOT SOLD SEPARATE, Decal-ShiftNOT SOLD SEPARATE, Decal-Shift
