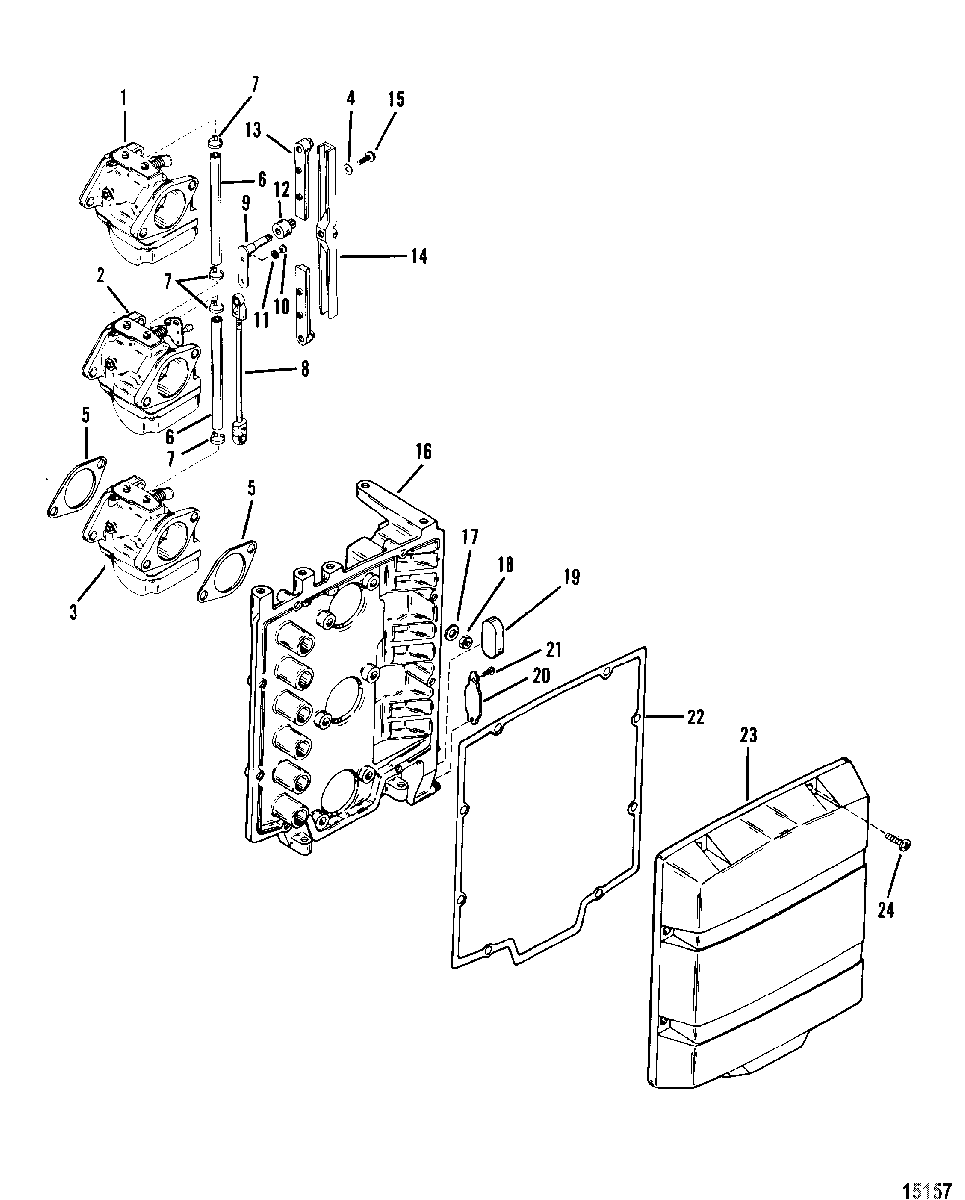

Carburetor And Attenuator Plate для Mercury - 90 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
13301-9012A27 CARBURETOR ASSEMBLY, Top, 70CARBURETOR ASSEMBLY, Top, 70
-
13301-9012A71 CARBURETOR ASSEMBLY, Top, 75CARBURETOR ASSEMBLY, Top, 75
-
13301-9012A58 CARBURETOR ASSEMBLY, Top, 80, HandleCARBURETOR ASSEMBLY, Top, 80, Handle
-
13301-9012A36 CARBURETOR ASSEMBLY, Top, 90, WME-10CARBURETOR ASSEMBLY, Top, 90, WME-10
-
13301-9012A64 CARBURETOR ASSEMBLY, Top, 90, WME-15CARBURETOR ASSEMBLY, Top, 90, WME-15
-
23301-9012A28 CARBURETOR ASSEMBLY, Center 70CARBURETOR ASSEMBLY, Center 70
-
23301-9012A72 CARBURETOR ASSEMBLY, Center, 75CARBURETOR ASSEMBLY, Center, 75
-
23301-9012A59 CARBURETOR ASSEMBLY, Center, 80, HandleCARBURETOR ASSEMBLY, Center, 80, Handle
-
23301-9012A37 CARBURETOR ASSEMBLY, Center, 90, WME-15CARBURETOR ASSEMBLY, Center, 90, WME-15
-
23301-9012A65 CARBURETOR ASSEMBLY, Center, 90, WME-15CARBURETOR ASSEMBLY, Center, 90, WME-15
-
33301-9012A29 CARBURETOR ASSEMBLY, Bottom, 70CARBURETOR ASSEMBLY, Bottom, 70
-
33301-9012A73 CARBURETOR ASSEMBLY, Bottom, 75CARBURETOR ASSEMBLY, Bottom, 75
-
33301-9012A60 CARBURETOR ASSEMBLY, Bottom, 80, HandleCARBURETOR ASSEMBLY, Bottom, 80, Handle
-
33301-9012A38 CARBURETOR ASSEMBLY, Bottom, 90, WME-10CARBURETOR ASSEMBLY, Bottom, 90, WME-10
-
33301-9012A66 CARBURETOR ASSEMBLY, Bottom, 90, WME-15CARBURETOR ASSEMBLY, Bottom, 90, WME-15
-
412-56681 WASHER, (.203 x .500 x .032), Link ScrewWASHER, (.203 x .500 x .032), Link Screw
-
527-151724 GASKET, Carburetor To Attenator PlateGASKET, Carburetor To Attenator Plate
-
632-9912878 TUBING, Carburetor To CarburetorTUBING, Carburetor To Carburetor
-
754-816311T TIE STRAPTIE STRAP
-
88M0084744 LINK RODLINK ROD
-
911399A1 ARM ASSEMBLYARM ASSEMBLY
-
1010-40057103 SCREW, (M5 x 6), ArmSCREW, (M5 x 6), Arm
-
1112-56681 WASHER, (.203 x .500 x .032), Arm ScrewWASHER, (.203 x .500 x .032), Arm Screw
-
1267748 ROLLERROLLER
-
1398886T01 LINK, AdjustingLINK, Adjusting
-
1498887T LINK, ThrottleLINK, Throttle
-
1510-48409 SCREW, (#10-16 x .625) Stainless Steel, LinkSCREW, (#10-16 x .625) Stainless Steel, Link
-
1642970A2 PLATE ASSEMBLY, Sound AttenuatorPLATE ASSEMBLY, Sound Attenuator
-
1712-4002217 WASHER, Carburetor StudsWASHER, Carburetor Studs
-
1811-401388 NUT, Carburetor StudsNUT, Carburetor Studs
-
1939519 CUP, RetainerCUP, Retainer
-
2098889 LATCH, Control CableLATCH, Control Cable
-
2110-42975 DRIVE SCREW, Latch To PlateDRIVE SCREW, Latch To Plate
-
2227-430001 GASKET, Attenuator CoverGASKET, Attenuator Cover
-
2342969A3 COVER, AttenuatorCOVER, Attenuator
-
2410-48409 SCREW, (#10-16 x .625) Stainless Steel, Attenuator CoverSCREW, (#10-16 x .625) Stainless Steel, Attenuator Cover
