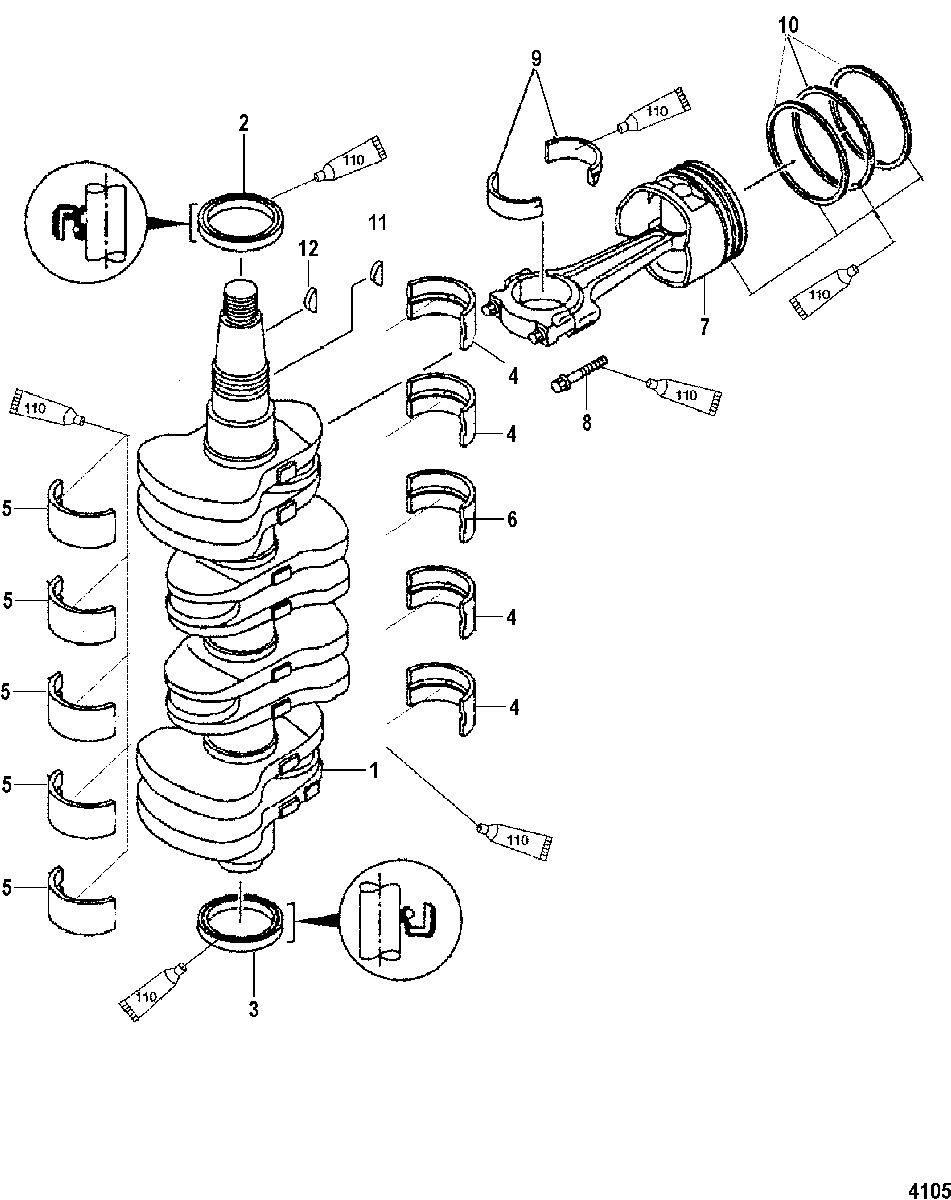

Crankshaft для Mercury - 90 (4-STROKE) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
12406-804098T CRANKSHAFTCRANKSHAFT
-
226-8040992 SEAL, OilSEAL, Oil
-
326-8041002 SEAL, OilSEAL, Oil
-
431-804101T BEARING
(GREEN)BEARING
(GREEN) -
431-804101T10 BEARING
(BLUE)BEARING
(BLUE) -
431-804101T20 BEARING
(RED)BEARING
(RED) -
531-804102T BEARING
(YELLOW)BEARING
(YELLOW) -
531-804102T10 BEARING
(GREEN)BEARING
(GREEN) -
531-804102T20 BEARING
(BLUE)BEARING
(BLUE) -
531-804102T30 BEARING
(RED)BEARING
(RED) -
631-804103T BEARING
(GREEN)BEARING
(GREEN) -
631-804103T10 BEARING
(BLUE)BEARING
(BLUE) -
631-804103T20 BEARING
(RED)BEARING
(RED) -
72715-880895T02 PISTON ASSEMBLY
(STANDARD)PISTON ASSEMBLY
(STANDARD) -
72715-880895T03 PISTON ASSEMBLY
(.25MM O/S)PISTON ASSEMBLY
(.25MM O/S) -
810-804105 BOLTBOLT
-
931-804106T01 BEARING
(YELLOW)BEARING
(YELLOW) -
931-804106T11 BEARING
(GREEN)BEARING
(GREEN) -
931-804106T21 BEARING
(BLUE)BEARING
(BLUE) -
931-804106T31 BEARING
(RED)BEARING
(RED) -
1039-880897T02 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1039-880898T02 RING SET, Piston
(.25MM O/S)RING SET, Piston
(.25MM O/S) -
1128-804153 KEYKEY
-
1228-8261001 KEYKEY
-
-804070T05 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
-
-27-804345A02 GASKET SET, PowerheadGASKET SET, Powerhead
