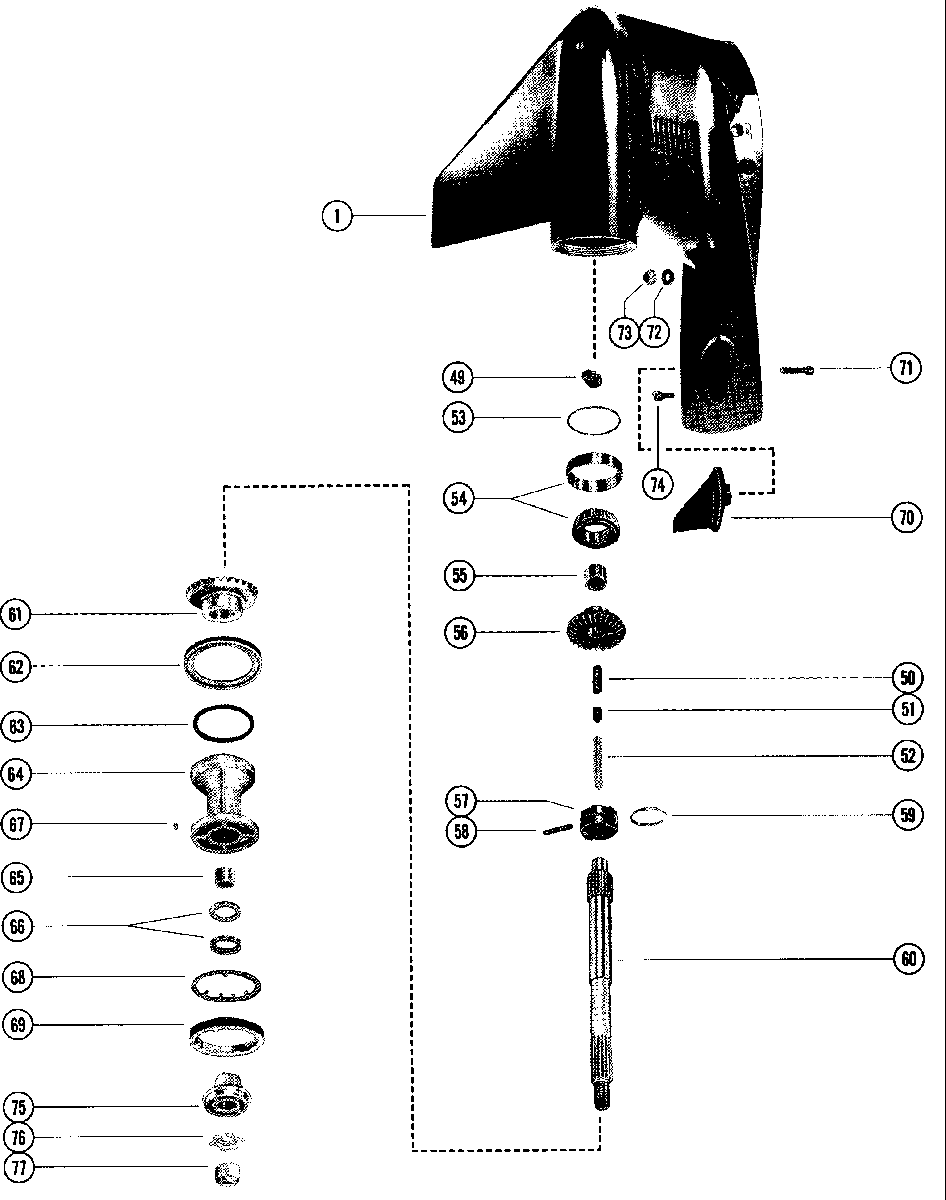

GEAR HOUSING ASSEMBLY, COMPLETE для Mercury - 90 (6 CYL.) 5299506 THRU 5594656
-
№АртикулНазвание
-
-1655-7333T24 GEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON C10 AND C12GEAR HOUSING ASS'Y, COMP.
THE ENCLOSED GEAR HOUSING INCLUDE ALL PARTS FROM REFERENCE #1 THRU #71 AS LISTED ON C10 AND C12 -
11655-7333T23 GEAR HOUSING ASS'YGEAR HOUSING ASS'Y
-
49760394 CAM, SHIFTCAM, SHIFT
-
5030625 FOLLOWER, CAMFOLLOWER, CAM
-
5130624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
5224-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
5315-30923A1 SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10)SHIM
BEARING OUTER RACE TO HOUSING (.002-3-5-10) -
5431-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
5531-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5643-68447T1 FORWARD GEARFORWARD GEAR
-
5752-822539T RATCHET, SLIDING GEARRATCHET, SLIDING GEAR
-
5817-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
5924-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6044-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
6143-76250T REVERSE GEARREVERSE GEAR
-
6212-76358 WASHER, THRUST
BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST
BEARING CARRIER TO GEAR HOUSING -
6325-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6441529T2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6531-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
6626-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
6728-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
6814-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
6952699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
7097-31640Q4 TRIM TAB, GEAR HOUSINGTRIM TAB, GEAR HOUSING
-
7110-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
7212-45176 WASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7311-34933 NUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT
GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS -
7410-65210 SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW
GEAR HOUSING TO DRIVE SHAFT HOUSING (1") -
7513191Q01 THRUST HUBTHRUST HUB
-
7614-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
7711-52707Q1 NUT, PROPELLERNUT, PROPELLER
-
-27-85653A87 GASKET SETGASKET SET
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE AND CHOKE SOLENOID
- CLAMP BRACKET AND REVERSE LOCK
- COWLING AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- END CAP, MANIFOLD AND EXHAUST COVERS
- EXHAUST EXTENSION PLATE
- FLYWHEEL, STARTER MOTOR AND STATOR
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- • GEAR HOUSING ASSEMBLY, COMPLETE
- HYDRAULIC PUMP AND CONTROL VALVE
- HYDRAULIC PUMP ASSEMBLY
- MISCELLANEOUS PARTS/ACCESSORIES
- POWER TRIM CYLINDER REPAIR KITS
- PROPELLERS (RIGHT HAND ROTATION)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE LEVER AND LINK RODS
- TOP COWL AND SUPPORT BRACKETS
- TRIM CYLINDERS AND HYDRAULIC HOSES
- WIRING HARNESS, SWITCH BOX AND IGNITION COIL
