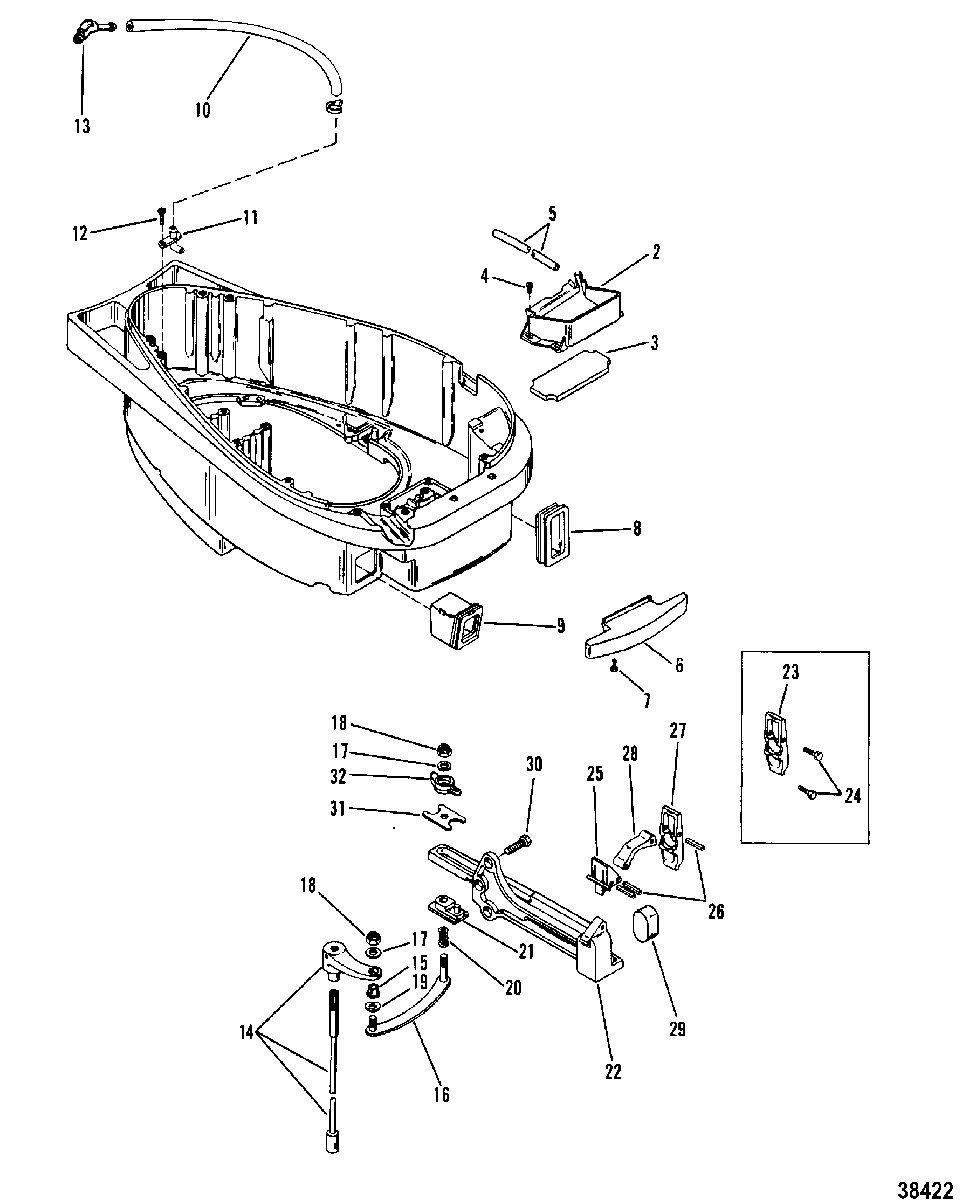

BOTTOM COWL AND SHIFT LINKAGE для Mercury - 90 (6 CYL.) 6436123 & Up
-
№АртикулНазвание
-
12115-8963A1 COWL ASSEMBLY, BOTTOM
(BLACK)COWL ASSEMBLY, BOTTOM
(BLACK) -
12115-8963A2 COWL ASSEMBLY, BOTTOM
(GRAY)COWL ASSEMBLY, BOTTOM
(GRAY) -
252862A2 DRIP TRAY ASSEMBLY, BOTTOM COWLDRIP TRAY ASSEMBLY, BOTTOM COWL
-
337940 SOUND PAD, DRIP TRAYSOUND PAD, DRIP TRAY
-
410-48408 SCREW, (#10-16 x .500), DRIP TRAY TO BOTTOM COWLSCREW, (#10-16 x .500), DRIP TRAY TO BOTTOM COWL
-
532-8M0108355 HOSE, DRIP TRAY TO BOTTOM COWL (8")HOSE, DRIP TRAY TO BOTTOM COWL (8")
-
676369 SPACER, BOTTOM COWLSPACER, BOTTOM COWL
-
710-35519 SCREW, (#10-16 x .500), SPACER TO BOTTOM COWLSCREW, (#10-16 x .500), SPACER TO BOTTOM COWL
-
839616 BOOT, CONTROL CABLES - BOTTOM COWLBOOT, CONTROL CABLES - BOTTOM COWL
-
937637 BOOT, FUEL CONNECTOR - BOTTOM COWLBOOT, FUEL CONNECTOR - BOTTOM COWL
-
1032-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE (21-1/2")LINE, (57.00 Inches Bulk), TELL TALE (21-1/2")
-
1152889 NOZZLE, TELL TALE HOSE TO BOTTOM COWLNOZZLE, TELL TALE HOSE TO BOTTOM COWL
-
1210-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1322-782792 ELBOW, TELL TALE HOSE TO CYLINDER BLOCKELBOW, TELL TALE HOSE TO CYLINDER BLOCK
-
1460304A54 SHIFT SHAFT ASSEMBLY, UPPERSHIFT SHAFT ASSEMBLY, UPPER
-
1523-26856 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
1673402 SHIFT LINKSHIFT LINK
-
1712-35462 WASHER, (.2656 x .625 x .0625) Stainless Steel, LINK RODWASHER, (.2656 x .625 x .0625) Stainless Steel, LINK ROD
-
1811-36069 NUT, LINK RODNUT, LINK ROD
-
1913-29720 WAVE WASHER, LINK RODWAVE WASHER, LINK ROD
-
2024-20099 SPRING, LINK ROD TO GUIDE BLOCKSPRING, LINK ROD TO GUIDE BLOCK
-
2137896 GUIDE BLOCK, LINK RODGUIDE BLOCK, LINK ROD
-
2252732A6 BRACKET, ANCHOR - CONTROL CABLESBRACKET, ANCHOR - CONTROL CABLES
-
2398889 LATCH
(DESIGN II)LATCH
(DESIGN II) -
2410-42975 DRIVE SCREW
(DESIGN II)DRIVE SCREW
(DESIGN II) -
2587609A1 LEVER, NYLON - SHIFT CABLE LOCKING
(DESIGN I)LEVER, NYLON - SHIFT CABLE LOCKING
(DESIGN I) -
2617-47175 PIN
(DESIGN I)PIN
(DESIGN I) -
2790211 COVER, NYLON - SHIFT CABLE
(DESIGN I)COVER, NYLON - SHIFT CABLE
(DESIGN I) -
2887609A1 LINK, LOCKING LEVER TO COVER
(DESIGN I)LINK, LOCKING LEVER TO COVER
(DESIGN I) -
2939519 CUP, BARREL RETAINER - ANCHORCUP, BARREL RETAINER - ANCHOR
-
3010-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
3152100 WEAR PLATE, LINK RODWEAR PLATE, LINK ROD
-
328M0036768 LATCHLATCH
