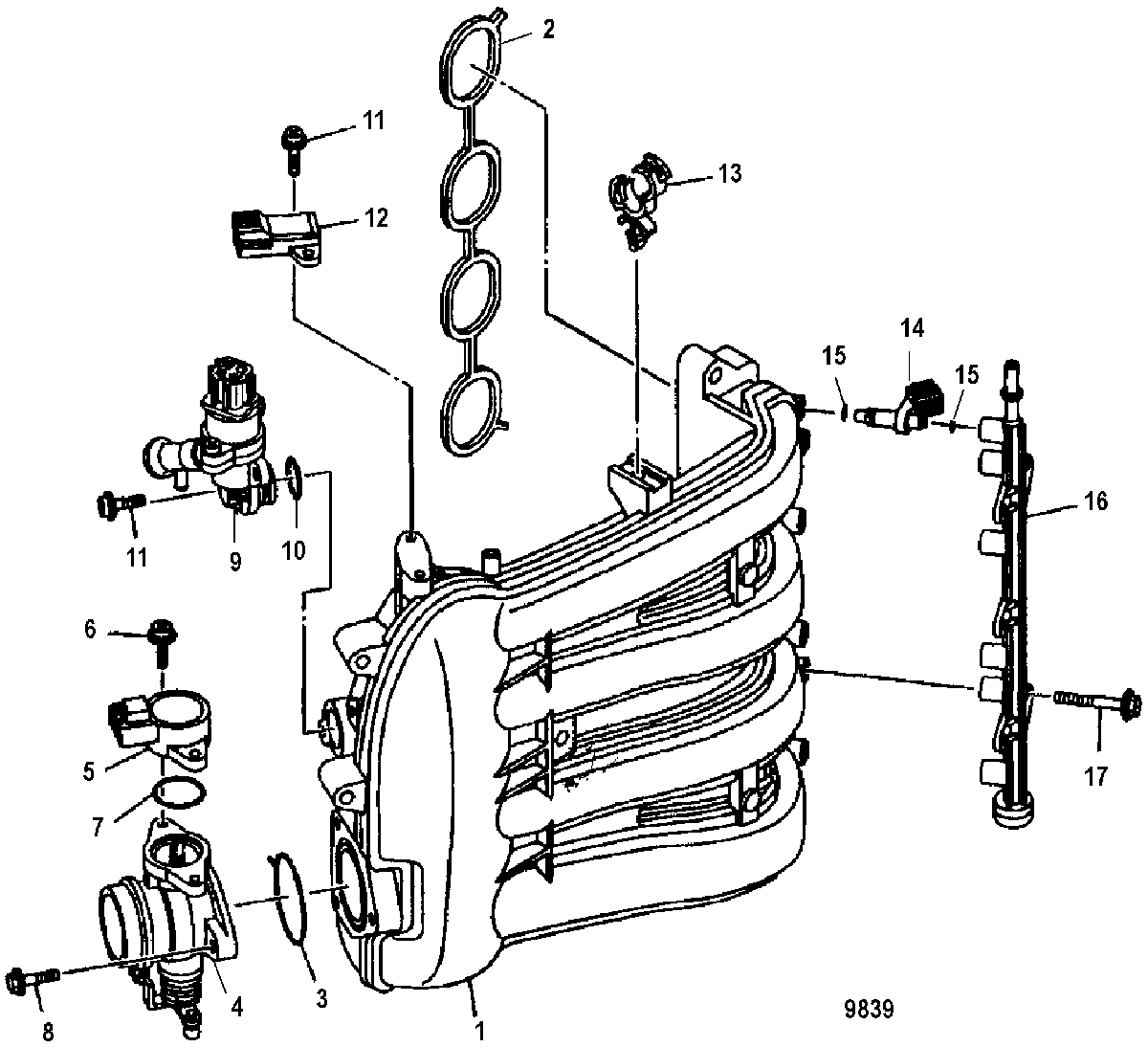

Intake для Mercury - 90 EFI (4-STROKE) 1B172291 THRU 1B366822
-
№АртикулНазвание
-
-881440T03 INTAKE ASSEMBLY, CompleteINTAKE ASSEMBLY, Complete
-
1880886T01 MANIFOLD ASSEMBLYMANIFOLD ASSEMBLY
-
227-881433001 GASKETGASKET
-
327-881433002 GASKETGASKET
-
4881441T05 THROTTLE BODY ASSEMBLYTHROTTLE BODY ASSEMBLY
-
5880884001 SENSOR ASSEMBLY, ThrottleSENSOR ASSEMBLY, Throttle
-
610-881502001 SCREWSCREW
-
725-881504001 O-RINGO-RING
-
810-881510001 BOLTBOLT
-
9880883T02 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
1025-881448001 O-RINGO-RING
-
1110-881449001 SCREWSCREW
-
12880885001 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1354-881530001 CLAMPCLAMP
-
14880887T02 INJECTOR ASSEMBLYINJECTOR ASSEMBLY
-
1525-885183A02 O-RING KITO-RING KIT
-
16881518T01 FUEL RAILFUEL RAIL
-
1710-881532001 BOLTBOLT
