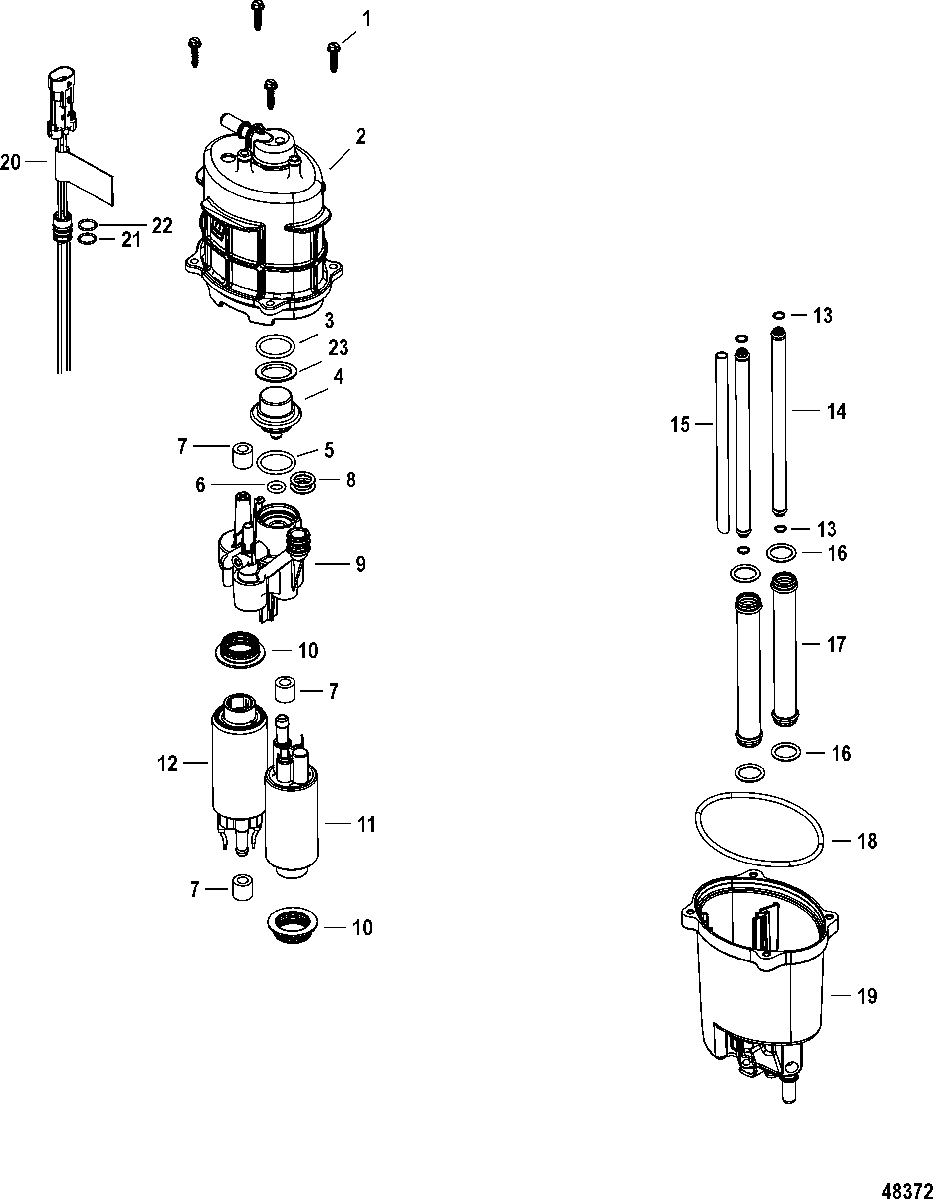

Fuel Supply Module для Mercury - 90 EFI (4-STROKE) 2B095049 & Up
-
№АртикулНазвание
-
-8M0132733 FUEL SUPPLY MODULE-DUAL PUMPFUEL SUPPLY MODULE-DUAL PUMP
-
110-8M0053756 SCREW, Plastite W/ HX WSR HDSCREW, Plastite W/ HX WSR HD
-
28M0053726 FSM TOP HOUSINGFSM TOP HOUSING
-
3NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
48M0053749 REGULATOR ASSEMBLYREGULATOR ASSEMBLY
-
5NSS NOT SOLD SEPARATE
O-ringNOT SOLD SEPARATE
O-ring -
6NSS NOT SOLD SEPARATE
O-ringNOT SOLD SEPARATE
O-ring -
7NSS NOT SOLD SEPARATE
SealNOT SOLD SEPARATE
Seal -
8NSS NOT SOLD SEPARATE
O-ringNOT SOLD SEPARATE
O-ring -
98M0053727 FSM CAPFSM CAP
-
10NSS NOT SOLD SEPARATE
SealNOT SOLD SEPARATE
Seal -
118M0062771 PUMP ASSY, Low PressurePUMP ASSY, Low Pressure
-
128M0062770 PUMP ASSY, High PressurePUMP ASSY, High Pressure
-
13NSS NOT SOLD SEPARATE
O-ringNOT SOLD SEPARATE
O-ring -
1432-8M0119250 TUBE
FuelTUBE
Fuel -
1532-8M0053755 TUBE
SuctionTUBE
Suction -
16NSS NOT SOLD SEPARATE
O-ringNOT SOLD SEPARATE
O-ring -
178M0120073 TUBE
WaterTUBE
Water -
18NSS NOT SOLD SEPARATE
SealNOT SOLD SEPARATE
Seal -
198M0053725 FSM BOTTOM HOUSINGFSM BOTTOM HOUSING
-
2084-8M6004776 ELECTRICAL HARNESS ASSEMBLYELECTRICAL HARNESS ASSEMBLY
-
21NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
22NSS NOT SOLD SEPARATE, O-ringNOT SOLD SEPARATE, O-ring
-
23NSS NOT SOLD SEPARATE
SpacerNOT SOLD SEPARATE
Spacer -
-8M0057679 FSM SEAL KITFSM SEAL KIT
