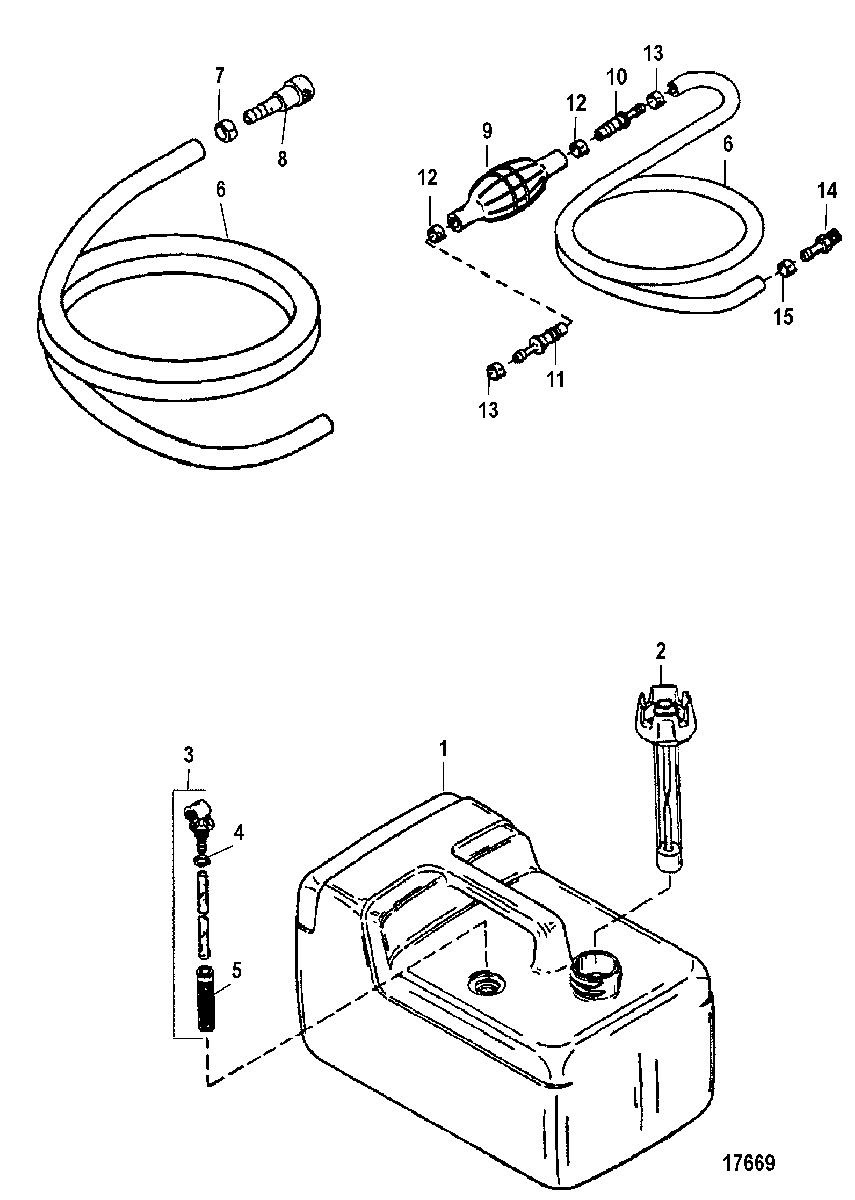

Fuel Tank Assembly(Plastic 3.2 Gallon) для Mercury - 9.8 (2 CYL.)(International) 0N007788 THRU 0N055109
-
№АртикулНазвание
-
11260-859061A1 TANK ASSEMBLY, Fuel (Plastic)TANK ASSEMBLY, Fuel (Plastic)
-
2823535 GAUGE/CAP ASSEMBLYGAUGE/CAP ASSEMBLY
-
NS27-8169771 GASKET, Fuel CapGASKET, Fuel Cap
-
322-823531A1 CONNECTOR KIT, FuelCONNECTOR KIT, Fuel
-
425-823533 O-RINGO-RING
-
535-823534 SCREENSCREEN
-
632-8M0126969 FUEL LINE ASSEMBLYFUEL LINE ASSEMBLY
-
754-853798 CLAMPCLAMP
-
822-8M0120628 CONNECTOR, Fuel, Engine EndCONNECTOR, Fuel, Engine End
-
913330Q07 BULB ASSEMBLY, PrimerBULB ASSEMBLY, Primer
-
1021-13331A3 CHECK VALVE ASSEMBLY (Inlet)CHECK VALVE ASSEMBLY (Inlet)
-
1121-13331A4 CHECK VALVE ASSEMBLY (Outlet)CHECK VALVE ASSEMBLY (Outlet)
-
1241582-10 CLAMP (Large)CLAMP (Large)
-
1354-41582Q7 CLAMP, Nylon (Small)CLAMP, Nylon (Small)
-
1422-89771Q2 CONNECTOR, (.250-18), Fuel TankCONNECTOR, (.250-18), Fuel Tank
-
1554-41582Q7 CLAMP, NylonCLAMP, Nylon
