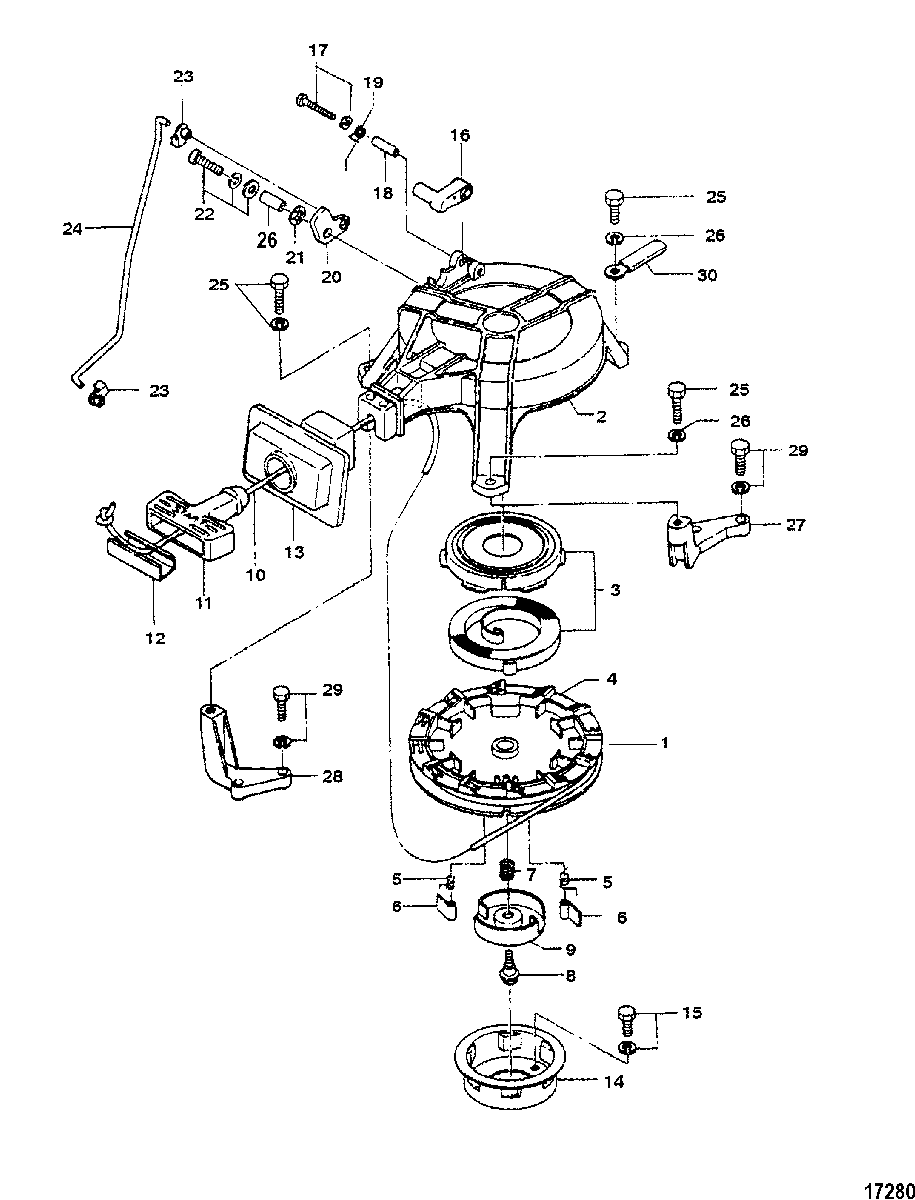

Recoil Starter для Mercury - 9.8 SEAPRO (2 Cyl.)(International) 0N055110 & Up
-
№АртикулНазвание
-
1803716T02 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
2803716T HOUSING, StarterHOUSING, Starter
-
324-812645T SPRING SET, StarterSPRING SET, Starter
-
4812633 SHEEVE, StarterSHEEVE, Starter
-
524-812634 SPRING, ReturnSPRING, Return
-
68M0060217 RATCHETRATCHET
-
724-812636 SPRING, FrictionSPRING, Friction
-
810-8M0060218 BOLTBOLT
-
9812638 FRICTION PLATEFRICTION PLATE
-
1050-12066Q10 ROPEROPE
-
11812640 HANDLE, Starter RopeHANDLE, Starter Rope
-
12812641 RETAINERRETAINER
-
1316110005 PLATE, SealPLATE, Seal
-
14812642 PULLEY, StarterPULLEY, Starter
-
1510-168281 SCREW AND LOCKWASHERSCREW AND LOCKWASHER
-
1617634 LOCK, StarterLOCK, Starter
-
1710-8555449 SCREWSCREW
-
1823-895130 COLLARCOLLAR
-
1924-812645007 SPRINGSPRING
-
208037211 CAMCAM
-
2113-17641 WAVE WASHERWAVE WASHER
-
2210-855544 SCREWSCREW
-
23898101933 ROD, SnapROD, Snap
-
248036815 LOCK ROD, StarterLOCK ROD, Starter
-
2510-167051 BOLTBOLT
-
2623-855545 COLLARCOLLAR
-
278049001 BRACKET, Starter (Port)BRACKET, Starter (Port)
-
288049002 BRACKET, Starter (Starboard)BRACKET, Starter (Starboard)
-
2910-168282 BOLTBOLT
-
3054-8M0130961 CLAMPCLAMP
