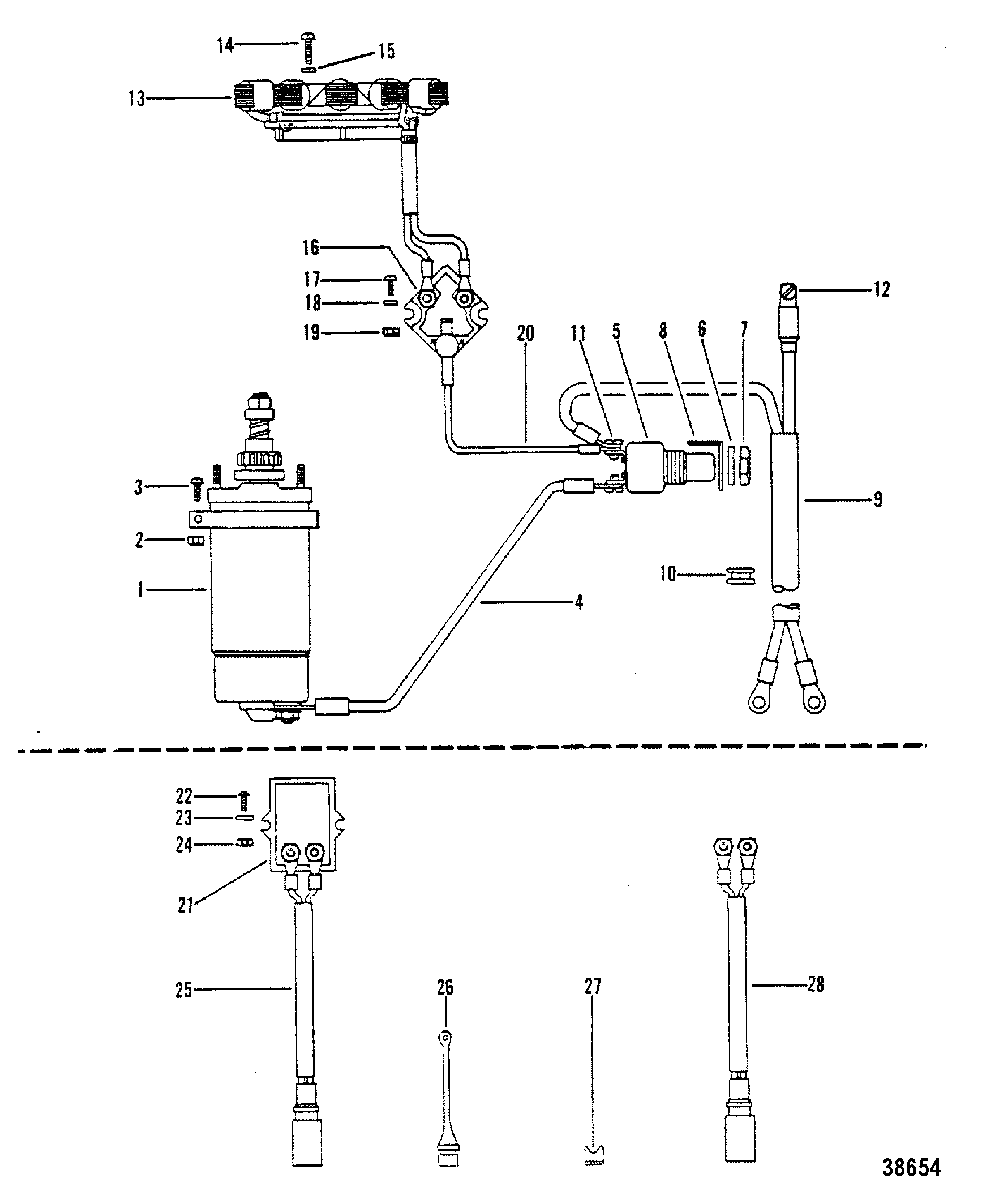

ELECTRIC COMPONENTS для Mercury - 9.8 7127388 & Up
-
№АртикулНазвание
-
150-78011 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
210-55511 SCREW, (.312-18 x 1.500)SCREW, (.312-18 x 1.500)
-
313-26993 LOCKWASHER, (.312), STARTER MOTOR SCREWLOCKWASHER, (.312), STARTER MOTOR SCREW
-
484-76741A1 WIRE ASSEMBLY, STARTING SWITCH (YELLOW)WIRE ASSEMBLY, STARTING SWITCH (YELLOW)
-
587-73883 SWITCH ASSEMBLY, StartingSWITCH ASSEMBLY, Starting
-
612-30516 WASHER, STARTING SWITCHWASHER, STARTING SWITCH
-
711-74394 NUT, STARTING SWITCHNUT, STARTING SWITCH
-
874515 PROTECTOR, STARTING SWITCHPROTECTOR, STARTING SWITCH
-
984-72535A4 CABLE ASSEMBLY, BATTERYCABLE ASSEMBLY, BATTERY
-
1025-86361 GROMMET, BATTERY CABLEGROMMET, BATTERY CABLE
-
1110-45742 SCREW, (.190-32 x .312), BATTERY CABLE ATTACHINGSCREW, (.190-32 x .312), BATTERY CABLE ATTACHING
-
1210-98253 SCREW, (.250-20 x .500), BATTERY CABLE ATTACHINGSCREW, (.250-20 x .500), BATTERY CABLE ATTACHING
-
1374367A15 LIGHTING STATOR ASSEMBLYLIGHTING STATOR ASSEMBLY
-
1410-73696 SCREW, LIGHTING STATOR ATTACHING (1-5/8")SCREW, LIGHTING STATOR ATTACHING (1-5/8")
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, LIGHTING STATOR SCREWLOCKWASHER, (#10) Stainless Steel, LIGHTING STATOR SCREW
-
168M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
1710-48408 SCREW, (#10-16 x .500), RECTIFIERSCREW, (#10-16 x .500), RECTIFIER
-
1823-62769 SPACER, RECTIFIER SCREWSPACER, RECTIFIER SCREW
-
1911-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALNUT, (#10-32) Brass, RECTIFIER TERMINAL
-
2084-61393A9 WIRE ASSEMBLYWIRE ASSEMBLY
-
2195845T REGULATOR, Voltage
BELGIUMREGULATOR, Voltage
BELGIUM -
2210-92799 SCREW, (#10-16 x 1.12)
BELGIUMSCREW, (#10-16 x 1.12)
BELGIUM -
2323-62769 SPACER, VOLTAGE REGULATOR SCREW
BELGIUMSPACER, VOLTAGE REGULATOR SCREW
BELGIUM -
2411-45076 NUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINAL
BELGIUMNUT, (#10-32) Brass, VOLTAGE REGULATOR TERMINAL
BELGIUM -
2584-74725A2 HARNESS ASSEMBLY (BLACK/RED)
BELGIUMHARNESS ASSEMBLY (BLACK/RED)
BELGIUM -
2671663 PLUG, HARNESS
BELGIUMPLUG, HARNESS
BELGIUM -
2774361 PLUG, HARNESS TO BOTTOM COWL
BELGIUMPLUG, HARNESS TO BOTTOM COWL
BELGIUM -
2884-65017A4 HARNESS ASSEMBLY, LIGHTING (EXTERNAL)
BELGIUMHARNESS ASSEMBLY, LIGHTING (EXTERNAL)
BELGIUM -
1374367A15 LIGHTING STATOR ASSEMBLY
BELGIUMLIGHTING STATOR ASSEMBLY
BELGIUM
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR AND CHOKE ASSEMBLY
- CARBURETOR(TILLOTSON STAMPED 1364-7902 or 1364-7909)
- CARBURETOR(WALBRO STAMPED WMB-1/WMB-2 /WMB-3/WMB-4
- CLAMP BRACKET ASSEMBLY
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE
- DRIVESHAFT HOUSING ASSEMBLY
- • ELECTRIC COMPONENTS
- FLYWHEEL AND IGNITION COMPONENTS
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- MISCELLANEOUS PARTS AND ACCESSORIES
- STEERING HANDLE AND THROTTLE LINKAGE
- SWIVEL BRACKET ASSEMBLY
- TOP COWL AND STARTER ASSEMBLY
