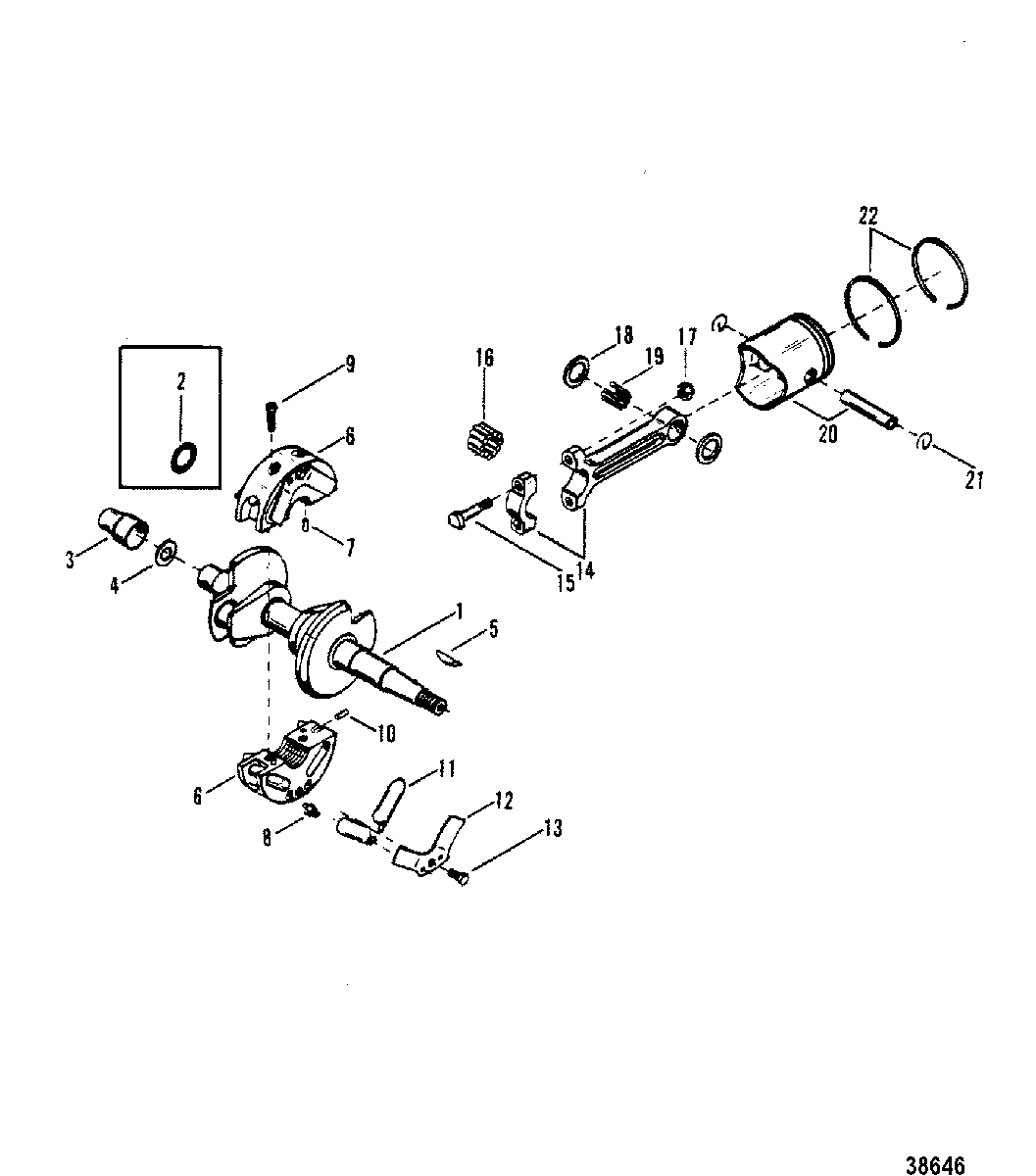

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 9.8 9217756 & Up
-
№АртикулНазвание
-
1421-5275 CRANKSHAFT
SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowCRANKSHAFT
SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
226-72793 SEAL, CRANKSHAFT
SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowSEAL, CRANKSHAFT
SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
1421-7271A2 CRANKSHAFT ASSEMBLY
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpCRANKSHAFT ASSEMBLY
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
379952A1 CARRIER ASSEMBLY
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpCARRIER ASSEMBLY
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
412-79960 WASHER, FELT
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpWASHER, FELT
SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
528-20094 KEY, Woodruff, CRANKSHAFTKEY, Woodruff, CRANKSHAFT
-
6550-8122A5 BEARING ASSEMBLY, Main (VALVE TYPE)BEARING ASSEMBLY, Main (VALVE TYPE)
-
717-20032 PIN, Dowel, MAIN BEARINGPIN, Dowel, MAIN BEARING
-
817-65855 PIN, Dowel, REED LOCATINGPIN, Dowel, REED LOCATING
-
910-56781 SCREW, MAIN BEARING CLAMPINGSCREW, MAIN BEARING CLAMPING
-
1017-20032 PIN, Dowel, MAIN BEARING TO BLOCKPIN, Dowel, MAIN BEARING TO BLOCK
-
1134-31942A1 REED SET, MATCHED - MAIN BEARINGREED SET, MATCHED - MAIN BEARING
-
1234-20053 STOP, Reed, MAIN BEARING REED VALVESSTOP, Reed, MAIN BEARING REED VALVES
-
1310-27304 SCREW, REED STOP MOUNTINGSCREW, REED STOP MOUNTING
-
14608-7395A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-87374 SCREW, (.250-28 x 1.030), CONNECTING RODSCREW, (.250-28 x 1.030), CONNECTING ROD
-
1631-8M0045032 BEARING, Needle, CRANKPINBEARING, Needle, CRANKPIN
-
1711-20061 NUT, CONNECTING ROD SCREWNUT, CONNECTING ROD SCREW
-
1812-65967 WASHER, NEEDLE BEARING RETAININGWASHER, NEEDLE BEARING RETAINING
-
1929-31505 BEARING, Needle, PISTON PINBEARING, Needle, PISTON PIN
-
20719-7391T3 PISTON ASSEMBLY (2 RING)PISTON ASSEMBLY (2 RING)
-
2140-21666 LOCK RING, PISTON PINLOCK RING, PISTON PIN
-
2239-21665A12 RING SET, PistonRING SET, Piston
-
-75376A79 POWERHEAD ASSEMBLY
(7.5) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowPOWERHEAD ASSEMBLY
(7.5) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-87123A80 POWERHEAD ASSEMBLY
(7.5) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpPOWERHEAD ASSEMBLY
(7.5) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up -
-75380A79 POWERHEAD ASSEMBLY
(9.8) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & BelowPOWERHEAD ASSEMBLY
(9.8) SN# USA-5306000/Aus-8060794/Bel-9227030/Can-7134412 & Below -
-87181A80 POWERHEAD ASSEMBLY
(9.8) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & UpPOWERHEAD ASSEMBLY
(9.8) SN# USA-5306001/Aus-8060795/Bel-9227031/Can-7134413 & Up
Все узлы модели:
- BOTTOM COWL AND SHIFT LINKAGE
- CARBURETOR AND CHOKE ASSEMBLY
- CARBURETOR(TILLOTSON STAMPED 1364-7902 or 1364-7909)
- CARBURETOR(WALBRO STAMPED WMB-1/WMB-2 /WMB-3/WMB-4
- CLAMP BRACKET ASSEMBLY
- • CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND CRANKCASE
- DRIVESHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS
- FLYWHEEL AND IGNITION COMPONENTS
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- MISCELLANEOUS PARTS AND ACCESSORIES
- STEERING HANDLE AND THROTTLE LINKAGE
- SWIVEL BRACKET ASSEMBLY
- TOP COWL AND STARTER ASSEMBLY
