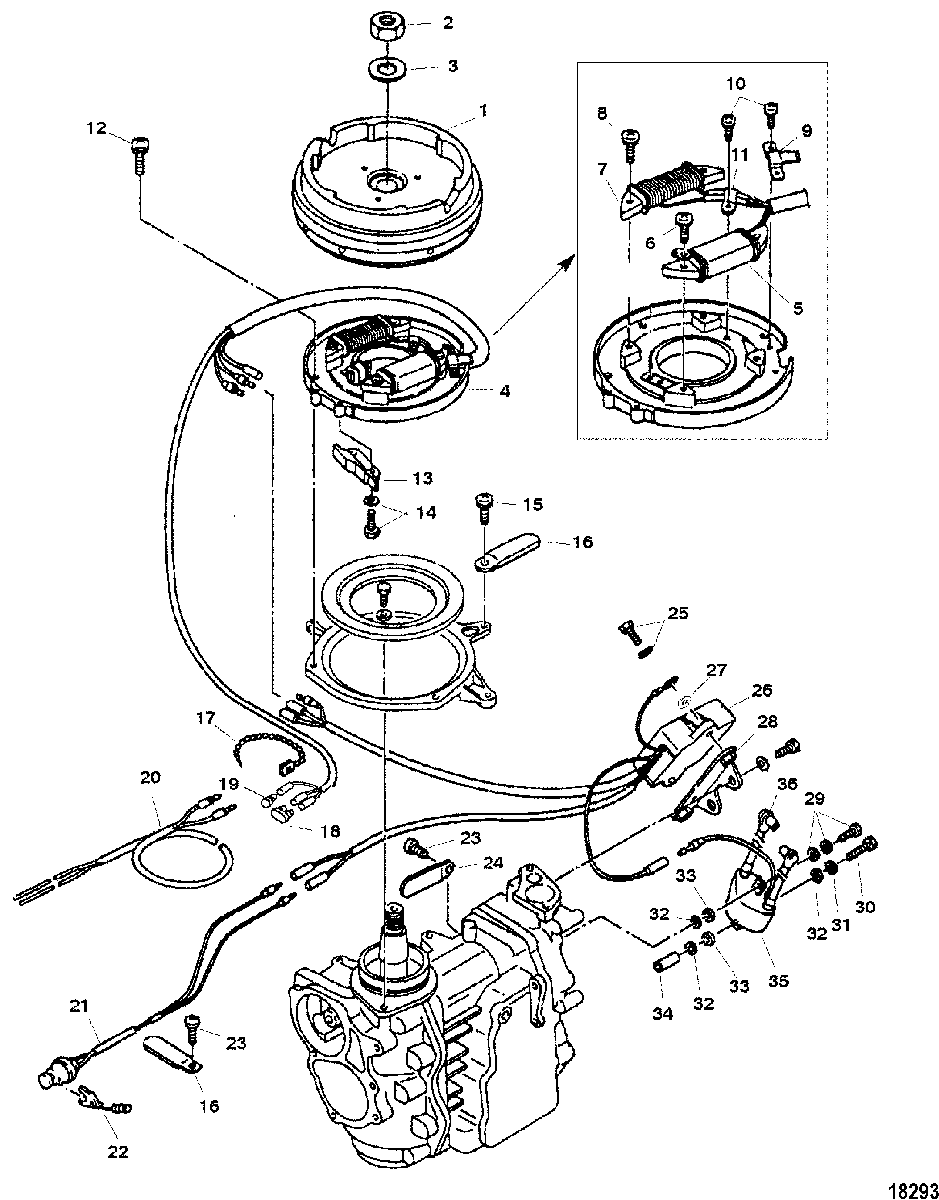

Electrical для Mercury - 9.9 (2 CYL.) (International) 0N059858 & Up
-
№АртикулНазвание
-
1262-803700002 FLYWHEELFLYWHEEL
-
211-851832001 NUT, GoldNUT, Gold
-
312-8537011 WASHERWASHER
-
4803701A1 PLATE ASSEMBLY, CoilPLATE ASSEMBLY, Coil
-
5803702T COIL, ExciterCOIL, Exciter
-
610-95313 SCREWSCREW
-
7803703 ALTERNATOR SETALTERNATOR SET
-
810-82303113 SCREWSCREW
-
9853738 GUIDE, WireGUIDE, Wire
-
1010-8230314 SCREWSCREW
-
1154-803828 CLAMPCLAMP
-
1210-8230315 SCREWSCREW
-
13803829 CAM, Throttle
(9.9)CAM, Throttle
(9.9) -
13803829001 CAM, Throttle
(15/18)CAM, Throttle
(15/18) -
1410-82304226 BOLTBOLT
-
1510-8555445 SCREWSCREW
-
1654-17169 CLAMPCLAMP
-
1754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
18853741 CAPCAP
-
1919-853994 PLUGPLUG
-
2084-17175 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
2187-823037A2 SWITCH ASSEMBLY, Stop - LanyardSWITCH ASSEMBLY, Stop - Lanyard
-
22823054 LANYARDLANYARD
-
2310-85554410 SCREWSCREW
-
2454-803563005 CLAMPCLAMP
-
2510-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
26803704T CD UNITCD UNIT
-
2712-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
28803705 BRACKETBRACKET
-
2910-855544016 SCREW
Design ISCREW
Design I -
2910-82304227 BOLT
Design IIBOLT
Design II -
3010-82304225 BOLT
Design IBOLT
Design I -
3010-82304227 BOLT
Design IIBOLT
Design II -
3113-400256 LOCKWASHER, (M6)
Design ILOCKWASHER, (M6)
Design I -
3212-16826 WASHER, Stainless Steel
Design IWASHER, Stainless Steel
Design I -
3327-851834 GASKET
Design IGASKET
Design I -
3423-803707 SPACER
Design ISPACER
Design I -
358M0121784 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3685-855543 BOOT, With ResistanceBOOT, With Resistance
-
-8M0075401 KIT, Ground wire/Head bolt/Washer
SN# ON159950 & UpKIT, Ground wire/Head bolt/Washer
SN# ON159950 & Up -
3784-853740 GROUND WIRE
SN# ON159950 & UpGROUND WIRE
SN# ON159950 & Up
