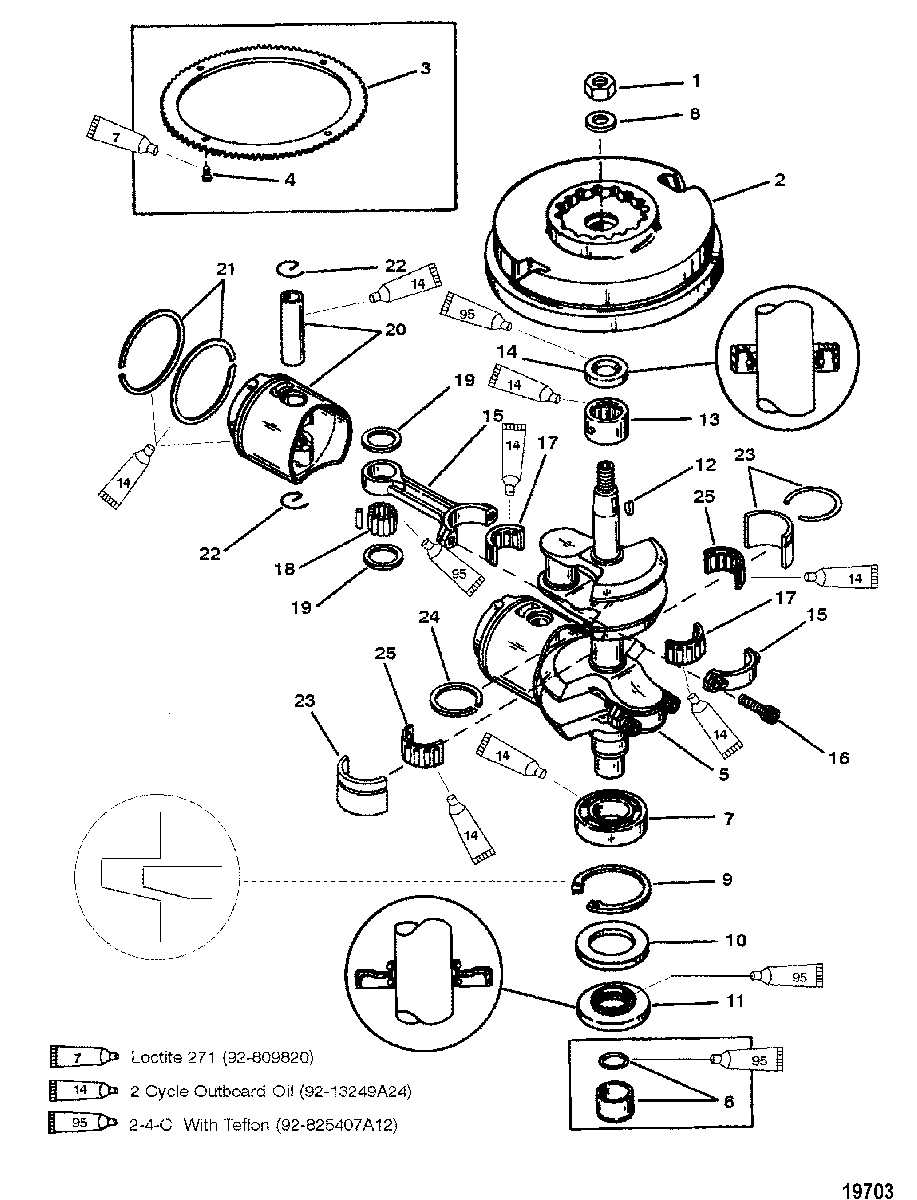

Crankshaft(15)(9.9-S/N-USA-0G112450/BEL-9831800 & Up) для Mercury - 9.9 0D281000 THRU 0G760299
-
№АртикулНазвание
-
111-818591 NUT, (M14)NUT, (M14)
-
2260-859231T19 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
343-99301 RING GEAR
ELECTRICRING GEAR
ELECTRIC -
410-88190313 SCREW, (M5 x 13)
ELECTRICSCREW, (M5 x 13)
ELECTRIC -
5400-8M0083309 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
6818630A1 SLEEVE (INCLUDES O-RING)SLEEVE (INCLUDES O-RING)
-
730-41341 BEARING, BallBEARING, Ball
-
812-824451 WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)WASHER, (.610 Inside Diamter x .890 Outside Diameter x .062)
-
953-42132 RING, RetainingRING, Retaining
-
1012-13031 WASHERWASHER
-
1126-125661 SEAL, Oil - LowerSEAL, Oil - Lower
-
1228-20094 KEY, WoodruffKEY, Woodruff
-
1331-878158 BEARING, RollerBEARING, Roller
-
1426-125671 SEAL, Oil - Upper, UPPERSEAL, Oil - Upper, UPPER
-
15637-8477A2 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1610-823460 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1731-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1829-42186 BEARING, NeedleBEARING, Needle
-
1912-8M0012297 BEARING, ThrustBEARING, Thrust
-
20784-9747T2 PISTON ASSEMBLY (STANDARD)PISTON ASSEMBLY (STANDARD)
-
20784-9747A4 PISTON ASSEMBLY (.015 O.S.)PISTON ASSEMBLY (.015 O.S.)
-
2139-18212A4 RING SET, Piston (STANDARD)RING SET, Piston (STANDARD)
-
2139-18212A1 RING SET, Piston (.015 O.S.)RING SET, Piston (.015 O.S.)
-
2240-422021 LOCK RINGLOCK RING
-
2317794A1 BEARINGBEARING
-
2426-818901 SEALSEAL
-
2531-42076A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
-19072T88 POWERHEAD ASSEMBLY, Complete
(15) SN# USA-0G112449/BEL-9831799 & BelowPOWERHEAD ASSEMBLY, Complete
(15) SN# USA-0G112449/BEL-9831799 & Below -
-19072T97 POWERHEAD ASSEMBLY
(15) SN# USA-0G112450/BEL-9831800 & UpPOWERHEAD ASSEMBLY
(15) SN# USA-0G112450/BEL-9831800 & Up -
-19072T97 POWERHEAD ASSEMBLY
(9.9) SN# USA-0G112450/BEL-9831800 & UpPOWERHEAD ASSEMBLY
(9.9) SN# USA-0G112450/BEL-9831800 & Up
