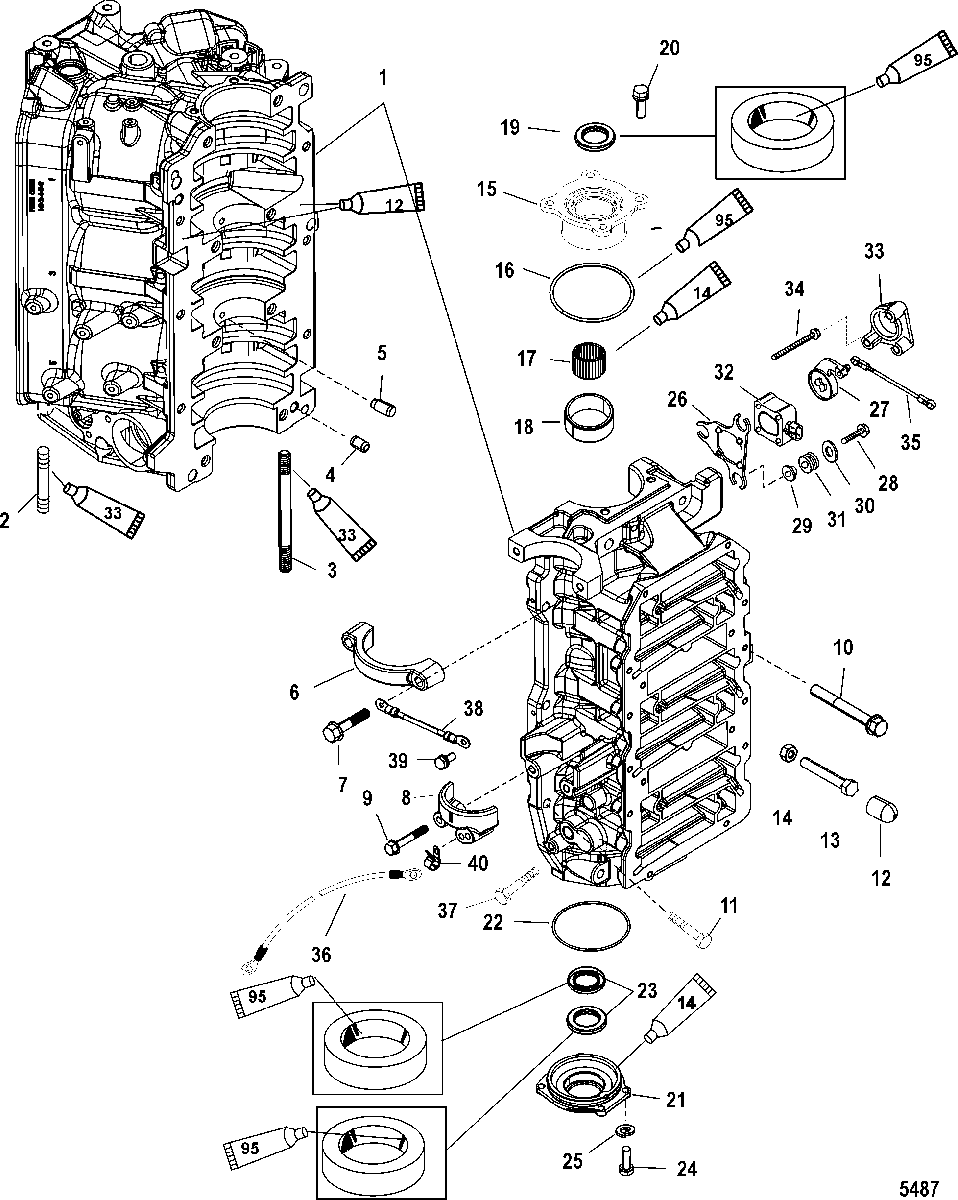

Cylinder Block and End Caps для Mercury - V-135 DFI (2.5L) 0T801000 THRU 1B226999
-
№АртикулНазвание
-
1884-858961A8 CYLINDER BLOCK ASSEMBLY
(135/150)CYLINDER BLOCK ASSEMBLY
(135/150) -
1884-858961A10 CYLINDER BLOCK ASSEMBLY
(175)CYLINDER BLOCK ASSEMBLY
(175) -
216-8M0034455 STUD, (1.750 Inches)STUD, (1.750 Inches)
-
316-670654 STUD, (.375-16/.375-24 x 5.620)
(.375 x 5.62 Inches)STUD, (.375-16/.375-24 x 5.620)
(.375 x 5.62 Inches) -
316-8M0034454 STUD, (.375-16/.375-24 x 6.870)STUD, (.375-16/.375-24 x 6.870)
-
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
517-8M0036405 PIN (BEARING RACE)PIN (BEARING RACE)
-
68M0111325 BRACKETBRACKET
-
710-828213 SCREW, (.312-18 x 1.500) Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange
-
876867 COVER (BOTTOM)COVER (BOTTOM)
-
910-828214 SCREW, (.312-18 x 2.00) Hex FlangeSCREW, (.312-18 x 2.00) Hex Flange
-
1010-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1110-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
1226852 CAP, NylonCAP, Nylon
-
1310-856832 SCREW, (.250-20 x 1.750)SCREW, (.250-20 x 1.750)
-
1411-64015 NUT, (.250-20)NUT, (.250-20)
-
151159-832760T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
1625-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1731-16756A4 BEARING KITBEARING KIT
-
18NSS NOT SOLD SEPARATE, Bearing RaceNOT SOLD SEPARATE, Bearing Race
-
1926-41953 SEALSEAL
-
2010-881190 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
211156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2225-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2326-41953 SEALSEAL
-
2410-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2513-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
268538821 BRACKET, Throttle Position Indicator MountBRACKET, Throttle Position Indicator Mount
-
278519371 LEVER, Throttle Position IndicatorLEVER, Throttle Position Indicator
-
2810-82130025 SCREW, (M6 x 25), Bracket to CrankcaseSCREW, (M6 x 25), Bracket to Crankcase
-
2923-856954 BUSHINGBUSHING
-
3012-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
3125-834985 GROMMETGROMMET
-
328M6005165 INDICATOR, Throttle Position (INSIDE)INDICATOR, Throttle Position (INSIDE)
-
338582261 COVER, TPSCOVER, TPS
-
3410-8508281 SCREW, (#10-32 x 2.00), TPS to BracketSCREW, (#10-32 x 2.00), TPS to Bracket
-
358M0084738 LINK ASSEMBLYLINK ASSEMBLY
-
3684-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
3684-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
3710-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
3884-93388A1 CABLE ASSEMBLY, (6.00 Inches) BlackCABLE ASSEMBLY, (6.00 Inches) Black
-
3910-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless SteelSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel
-
4054-859172 CLAMPCLAMP
-
-879808T07 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-879809T07 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175)
