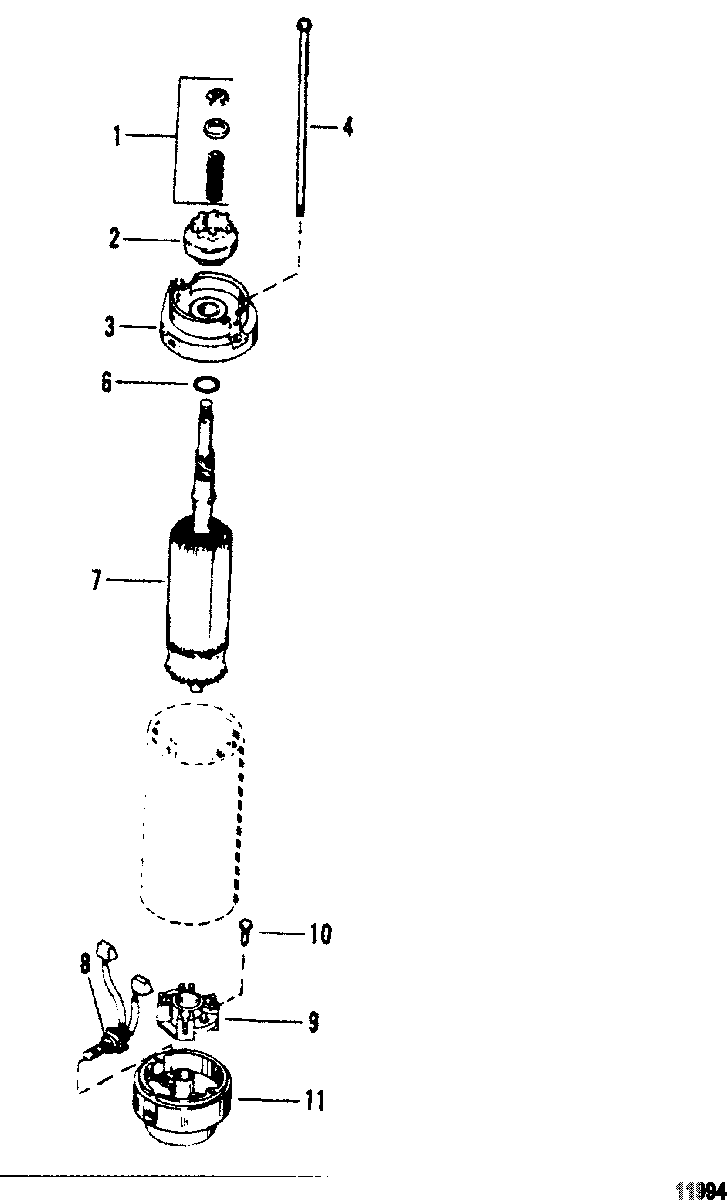

Starter Motor для Mercury - V-135 0A904646 THRU 0C100860
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATE, DRIVE ENDPLATE, DRIVE END
-
410-74968 BOLT, THRUBOLT, THRU
-
6N.S.S. Not Sold Separate, Washer-Thru Bolt
(AMERICAN BOSCH #WA3122)Not Sold Separate, Washer-Thru Bolt
(AMERICAN BOSCH #WA3122) -
779216 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDER, BRUSHHOLDER, BRUSH
-
1010-68586 SCREW, BRUSH AND HOLDERSCREW, BRUSH AND HOLDER
-
1115386001 END CAP, COMMUTATOREND CAP, COMMUTATOR
