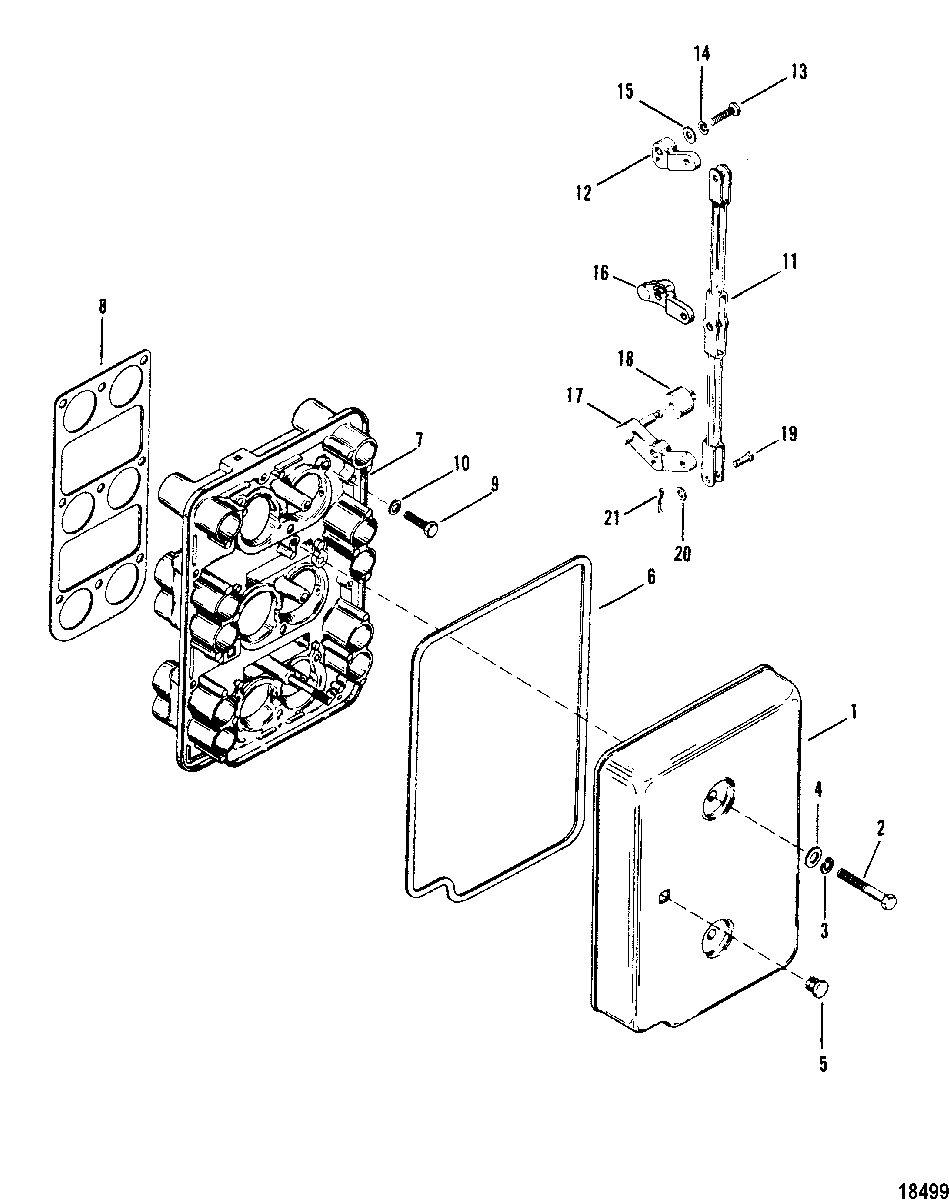

Choke Plate and Throttle Levers для Mercury - V-135 0C100861 THRU 0C239552
-
№АртикулНазвание
-
167246T COVER, INDUCTION SILENCERCOVER, INDUCTION SILENCER
-
210-30720 SCREW, (.250-20 x 2.25), COVER TO CHOKE PLATESCREW, (.250-20 x 2.25), COVER TO CHOKE PLATE
-
313-26992 LOCKWASHER, (.250), COVER SCREWLOCKWASHER, (.250), COVER SCREW
-
412-29245 WASHER, (.281 x .500 x .060), COVER SCREWWASHER, (.281 x .500 x .060), COVER SCREW
-
519-90585 PLUG, INDUCTION SILENCER COVERPLUG, INDUCTION SILENCER COVER
-
627-672751 GASKET, COVERGASKET, COVER
-
7799831 PLATE, CHOKEPLATE, CHOKE
-
827-672741 GASKET, CHOKE PLATE TO CARBURETORGASKET, CHOKE PLATE TO CARBURETOR
-
910-68000 SCREW, (.24-28 X 1.00), CHOKE PLATE TO CARBURETORSCREW, (.24-28 X 1.00), CHOKE PLATE TO CARBURETOR
-
1012-20583 WASHER, CHOKE PLATE SCREWWASHER, CHOKE PLATE SCREW
-
1167760 THROTTLE LINKTHROTTLE LINK
-
1267759 THROTTLE LEVER, UPPERTHROTTLE LEVER, UPPER
-
1310-15124 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1413-26996 LOCKWASHER, (#10), THROTTLE LEVERS SCREWLOCKWASHER, (#10), THROTTLE LEVERS SCREW
-
1512-56681 WASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREWWASHER, (.203 x .500 x .032), THROTTLE LEVERS SCREW
-
1641049 THROTTLE LEVER, CENTERTHROTTLE LEVER, CENTER
-
1767749 THROTTLE LEVER, LOWERTHROTTLE LEVER, LOWER
-
1867748 ROLLER, LOWER THROTTLE LEVERROLLER, LOWER THROTTLE LEVER
-
1917-67297 CLEVIS PIN, THROTTLE LEVERS TO THROTTLE LINKCLEVIS PIN, THROTTLE LEVERS TO THROTTLE LINK
-
2012-89302 WASHER, (.203 x .406 x .040), CLEVIS PINWASHER, (.203 x .406 x .040), CLEVIS PIN
-
2118-26953 COTTER PIN, CLEVIS PINCOTTER PIN, CLEVIS PIN
-
-27-90484A88 GASKET SETGASKET SET
