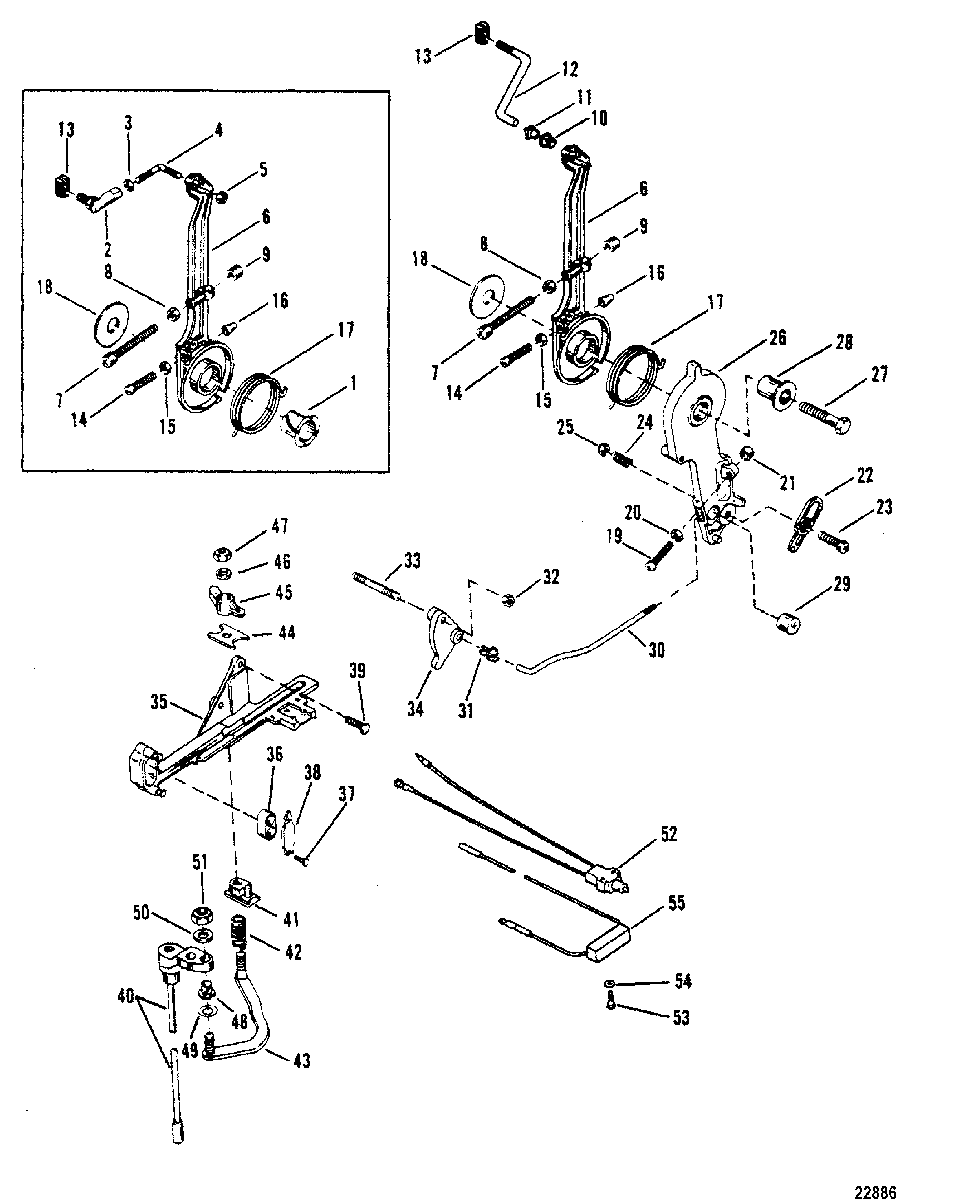

THROTTLE LEVER AND SHIFT SHAFT для Mercury - V-135 0D082000 THRU 0G303045
-
№АртикулНазвание
-
123-55171 BUSHING
DESIGN IBUSHING
DESIGN I -
262459T BALL JOINT ASSEMBLY
DESIGN IBALL JOINT ASSEMBLY
DESIGN I -
311-45076 NUT, (#10-32) Brass
DESIGN INUT, (#10-32) Brass
DESIGN I -
476035 ROD
DESIGN IROD
DESIGN I -
511-46438 NUT, (#10-32)
DESIGN INUT, (#10-32)
DESIGN I -
641094A3 LEVER ASSEMBLY (DESIGN I)LEVER ASSEMBLY (DESIGN I)
-
6823705A1 LEVER, Spark Advance (DESIGN II)LEVER, Spark Advance (DESIGN II)
-
710-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
811-64015 NUT, (.250-20)NUT, (.250-20)
-
926852 CAP, NylonCAP, Nylon
-
1093254 SWIVEL BASE
DESIGN IISWIVEL BASE
DESIGN II -
1193421 SWIVEL BALL
DESIGN IISWIVEL BALL
DESIGN II -
12823706 LINK
DESIGN IILINK
DESIGN II -
1374897T PIVOTPIVOT
-
1410-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
1511-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
1648039 CAPCAP
-
1724-823235 SPRINGSPRING
-
1812-46765 WASHER, (.390 x 1.50 x .120)WASHER, (.390 x 1.50 x .120)
-
1910-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
2011-64015 NUT, (.250-20)NUT, (.250-20)
-
2126852 CAP, NylonCAP, Nylon
-
2239483 LATCHLATCH
-
2310-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2424-20099 SPRINGSPRING
-
2511-826709109 NUT, (.250-28)NUT, (.250-28)
-
26410952 LEVERLEVER
-
2710-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
2823-55164 BUSHINGBUSHING
-
2914638 BARRELBARREL
-
30814929 RODROD
-
3123-932481 BUSHINGBUSHING
-
3211-826709109 NUT, (.250-28)NUT, (.250-28)
-
3316-20353 STUD, (.250-28 x 1.750)STUD, (.250-28 x 1.750)
-
34815539T CAM, ThrottleCAM, Throttle
-
35814283A2 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
3639519 CUPCUP
-
3710-42975 DRIVE SCREWDRIVE SCREW
-
3898889 LATCHLATCH
-
3910-53167T SCREW, (.312-18 x .880)SCREW, (.312-18 x .880)
-
4079932A16 SHIFT SHAFT ASSEMBLY (LONG)SHIFT SHAFT ASSEMBLY (LONG)
-
4079932A17 SHIFT SHAFT ASSEMBLY (X-LONG)SHIFT SHAFT ASSEMBLY (X-LONG)
-
41814284 GUIDE BLOCKGUIDE BLOCK
-
4224-20099 SPRINGSPRING
-
4367073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4452100 WEAR PLATEWEAR PLATE
-
458M0036768 LATCHLATCH
-
4612-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4711-826709109 NUT, (.250-28)NUT, (.250-28)
-
4823-26600 BUSHINGBUSHING
-
4913-29720 WAVE WASHERWAVE WASHER
-
5012-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
5111-826709109 NUT, (.250-28)NUT, (.250-28)
-
5287-814281A1 IDLE STABILIZING SHIFT KIT
XR6/175/MAGNUM III/TRACKERIDLE STABILIZING SHIFT KIT
XR6/175/MAGNUM III/TRACKER -
5310-77478 SCREW, (#6-32 x .875)
XR6/175/MAGNUM III/TRACKERSCREW, (#6-32 x .875)
XR6/175/MAGNUM III/TRACKER -
5412-27882 WASHER
XR6/175/MAGNUM III/TRACKERWASHER
XR6/175/MAGNUM III/TRACKER -
5517461A3 RESISTOR MODULE
XR6/175/MAGNUM III/TRACKERRESISTOR MODULE
XR6/175/MAGNUM III/TRACKER
