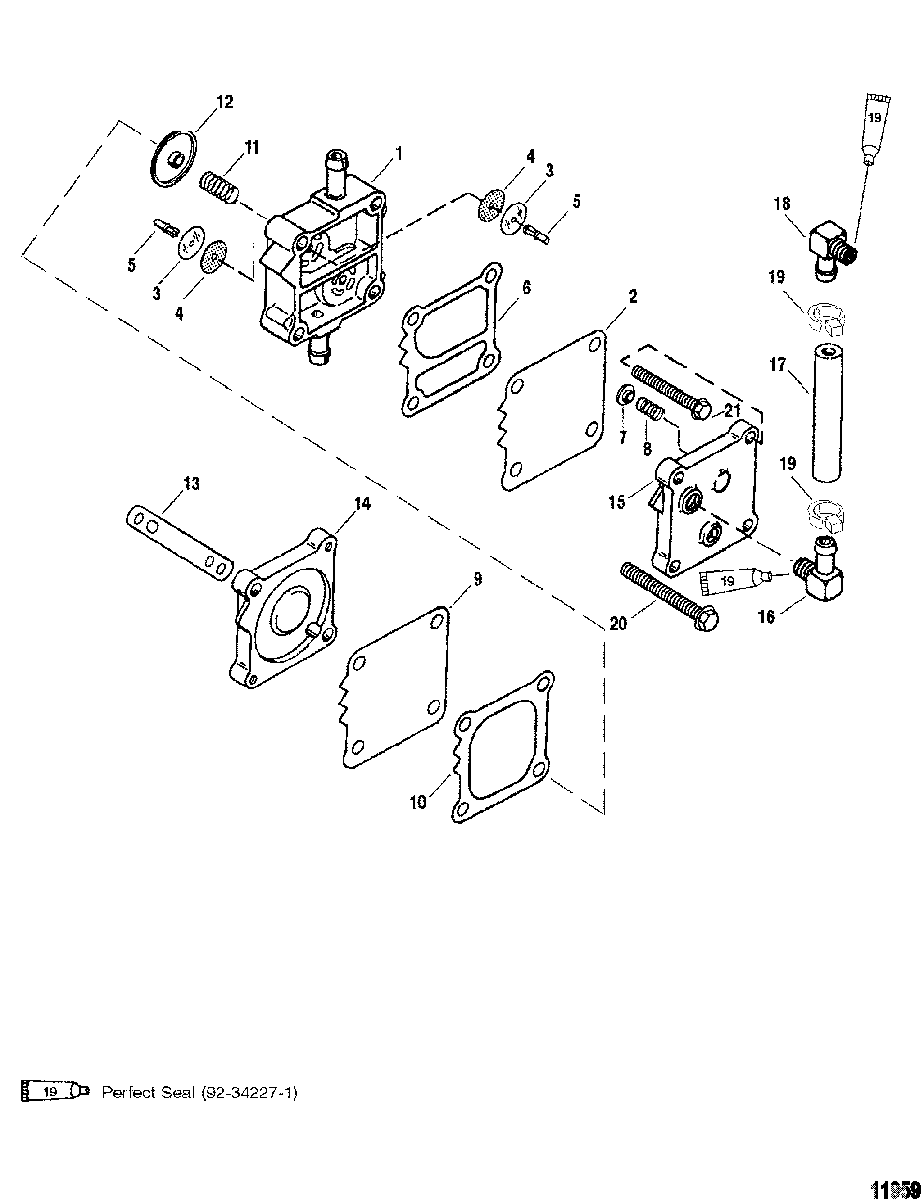

Fuel Pump для Mercury - V-135 0G303046 THRU 0G760299
-
№АртикулНазвание
-
114360A78 PUMP ASSEMBLY, FuelPUMP ASSEMBLY, Fuel
-
221-857005A1 DIAPHAGM KITDIAPHAGM KIT
-
3NSS NOT SOLD SEPARATE, Check Valve, RubberNOT SOLD SEPARATE, Check Valve, Rubber
-
4NSS NOT SOLD SEPARATE, Check ValveNOT SOLD SEPARATE, Check Valve
-
5NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
6NSS NOT SOLD SEPARATE, Gasket-BoostNOT SOLD SEPARATE, Gasket-Boost
-
7NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
8NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
9NSS NOT SOLD SEPARATE, DiaphragmNOT SOLD SEPARATE, Diaphragm
-
10NSS NOT SOLD SEPARATE, Gasket-PulseNOT SOLD SEPARATE, Gasket-Pulse
-
11NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
12NSS NOT SOLD SEPARATE, CapNOT SOLD SEPARATE, Cap
-
1327-987691 GASKETGASKET
-
14144303 BASEBASE
-
15987752 PLATEPLATE
-
1622-996642 ELBOWELBOW
-
1732-8M0108349 TUBING, (28.00 Inches Bulk) (Cut to 6.00 Inch Length)TUBING, (28.00 Inches Bulk) (Cut to 6.00 Inch Length)
-
1822-996642 ELBOWELBOW
-
1954-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2010-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
2110-82104540 SCREW, (M5 x 40)SCREW, (M5 x 40)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III)POWERHEAD ASSEMBLY
(XR6/Magnum III) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
