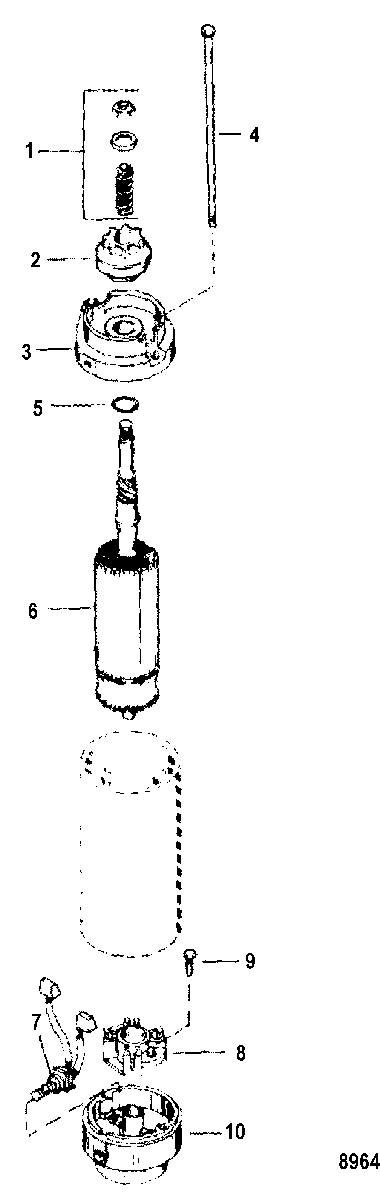

STARTER MOTOR для Mercury - V-135 0G760300 THRU 0G960499
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATEPLATE
-
410-749681 THRU BOLTTHRU BOLT
-
5NSS NOT SOLD SEPARATE, Washer (AMERICAN BOSCH #WA3122)NOT SOLD SEPARATE, Washer (AMERICAN BOSCH #WA3122)
-
679216 ARMATUREARMATURE
-
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
9NSS NOT SOLD SEPARATE, Screw (AMERICAN BOSCH #02441-22-SC-30SM)NOT SOLD SEPARATE, Screw (AMERICAN BOSCH #02441-22-SC-30SM)
-
1015386001 END CAPEND CAP
