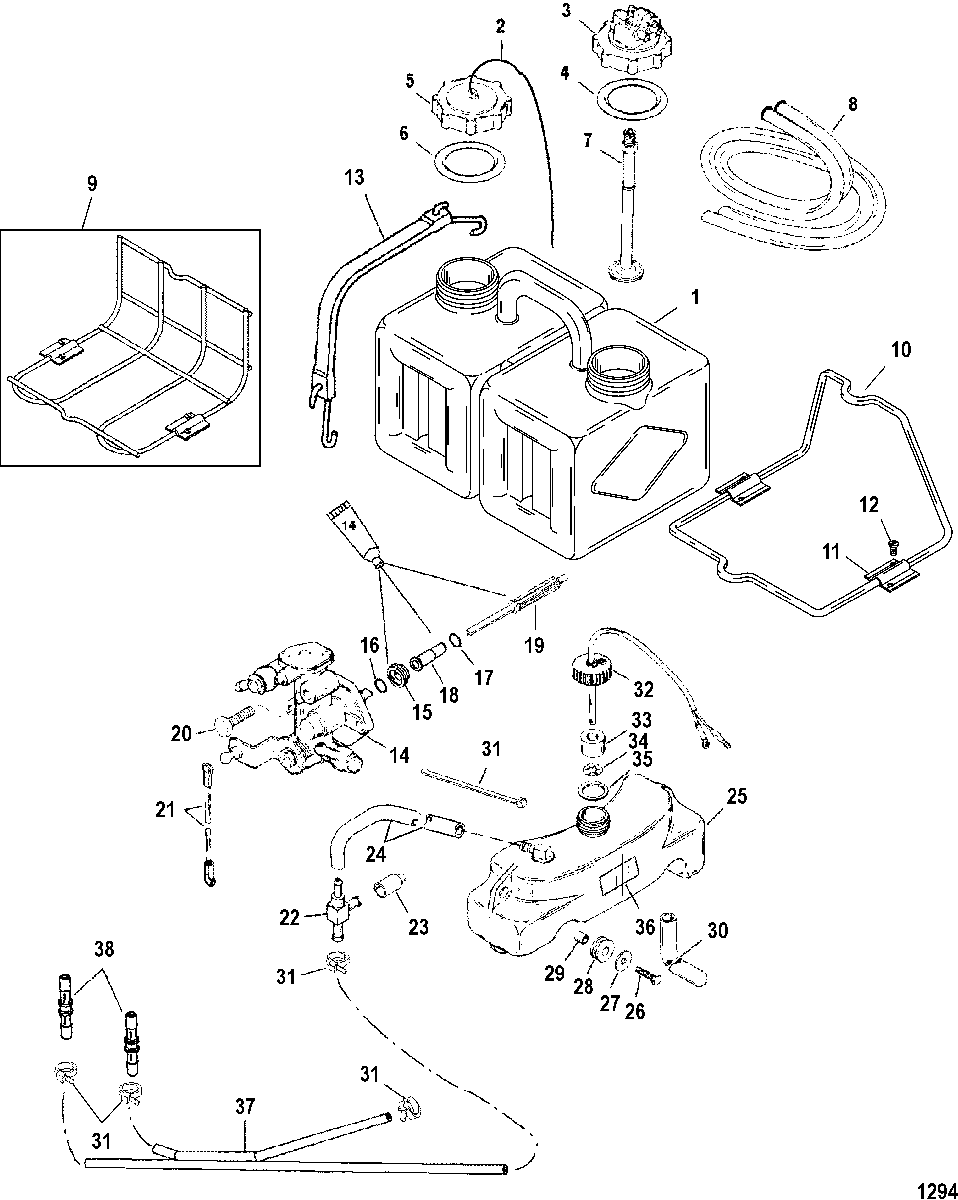

Oil Injection Components для Mercury - V-140 (INTERNATIONAL) 0T178500 THRU 1B226999
-
№АртикулНазвание
-
-1257-8742A22 TANK ASSEMBLY, Remote Oil
(USE WITH DESIGN I BRACKET)TANK ASSEMBLY, Remote Oil
(USE WITH DESIGN I BRACKET) -
-1257-8742A22 TANK ASSEMBLY, Remote Oil
(USE WITH DESIGN II BRACKET)TANK ASSEMBLY, Remote Oil
(USE WITH DESIGN II BRACKET) -
11257-87421 TANKTANK
-
2NSS NOT SOLD SEPARATE, CordNOT SOLD SEPARATE, Cord
-
3816190A4 SENDER ASSEMBLY, Oil Level, AdaptorSENDER ASSEMBLY, Oil Level, Adaptor
-
425-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
536-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
625-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
732-99802 TUBETUBE
-
832-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
912335A1 BRACKET KIT
(DESIGN I)BRACKET KIT
(DESIGN I) -
10884481A1 BRACKET KIT
(DESIGN II)BRACKET KIT
(DESIGN II) -
1112320 BRACKETBRACKET
-
1210-79968 SCREW, (#12-11 x .750)SCREW, (#12-11 x .750)
-
1312323A1 CORD/HOOK KITCORD/HOOK KIT
-
14815698T PUMP, Oil
(135)PUMP, Oil
(135) -
14815699T PUMP ASSEMBLY, Oil
(140/150/XR6/MAGNUM III/200)PUMP ASSEMBLY, Oil
(140/150/XR6/MAGNUM III/200) -
158141032 BUSHING, WormBUSHING, Worm
-
1625-11379 O-RINGO-RING
-
1725-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
1823-859112 BEARING, Drive GearBEARING, Drive Gear
-
1943-8591111 GEAR, DrivenGEAR, Driven
-
2010-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
2010-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
21193855 LINK ASSEMBLY, Throttle Lever to Oil PUmpLINK ASSEMBLY, Throttle Lever to Oil PUmp
-
2222-424254 FITTINGFITTING
-
23NSS NOT SOLD SEPARATE, PlugNOT SOLD SEPARATE, Plug
-
2432-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)HOSE, (57.00 Inches Bulk) (Cut to 6 Inches)
-
25994436 RESERVOIRRESERVOIR
-
2610-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2712-42118 WASHERWASHER
-
2825-42117 GROMMETGROMMET
-
2923-42116 BUSHINGBUSHING
-
3032-82381455 TUBING, (25.00 Inches Bulk) (Cut to 4-3/4 Inches) Oil Reservoir to Oil PumpTUBING, (25.00 Inches Bulk) (Cut to 4-3/4 Inches) Oil Reservoir to Oil Pump
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3236-43300A5 CAP ASSEMBLYCAP ASSEMBLY
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3527-43307T GASKETGASKET
-
36NSS NOT SOLD SEPARATE, Decal-reservoir WarningNOT SOLD SEPARATE, Decal-reservoir Warning
-
3732-8588531 HOSE, To Check Valve on BlockHOSE, To Check Valve on Block
-
3822-858955 CONNECTORCONNECTOR
